Pentair Flotec FP4332 1 HP Thermoplastic Convertible Jet Pump

Main Content Starts Here

Pentair Flotec FP4332 1 HP Thermoplastic Convertible Jet Pump

Corrosion resistant convertible jet pumps are constructed of rugged fiberglass-reinforced thermoplastic, and assure years of dependable service

.KEY FEATURES

  • Superior performance at depths to water of 100' or less
  • Fiberglass-reinforced thermoplastic pump housing for the highest corrosion resistance
  • Ready-to-install 230 volt motor - see manual for 115 volt conversion
  • WARRANTY:1 year limited warranty
Find out where to purchase online or in a retail location near you.

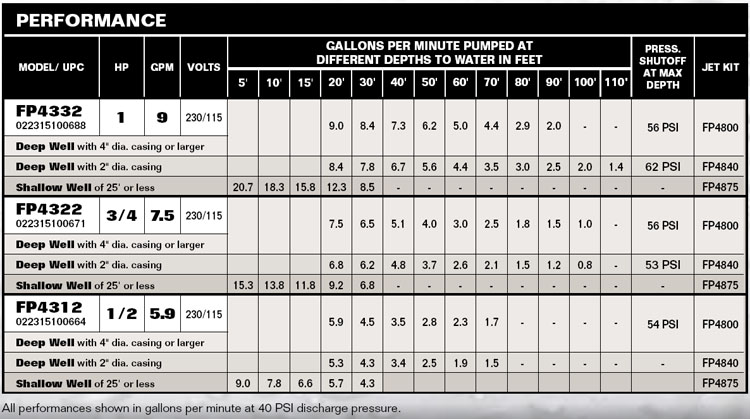

Performance Curves

performance_Pentair Flotec FP4332 Thermoplastic Convertible Jet Pump 1 HP

Accessories

Specifications

BODY CONSTRUCTION:  Thermoplastic
HORSEPOWER:  1
MAXIMUM CAPACITY:  20.7 GPM (shallow setup)
FLOW at 10' LIFT and 40 PSI:  18.3 GPM (shallow setup)
MAX LIFT:  25' for shallow setup / 90' for deep setup
MAXIMUM PRESSURE:  52 psi for shallow / 56 psi for deep
PRESSURE SWITCH SETTING:  30/50
SUCTION PIPE SIZE:  1-1/4" NPT
DRIVE PIPE SIZE:  1" NPT
DISCHARGE PIPE SIZE:  1" NPT
AMP DRAW:  7.4 amps on 230v / 14.8 amps on 115v
VOLTAGE:  230v / 115v, 60 Hz
RECOMMENDED BREAKER:  15 amp for 230v / 20 amp for 115v
MAXIMUM WATER TEMPERATURE:  140 F (60 C)
