- Pentair Fairbanks Nijhuis 1600 Series Single Stage End Suction Pumps
0101
Components

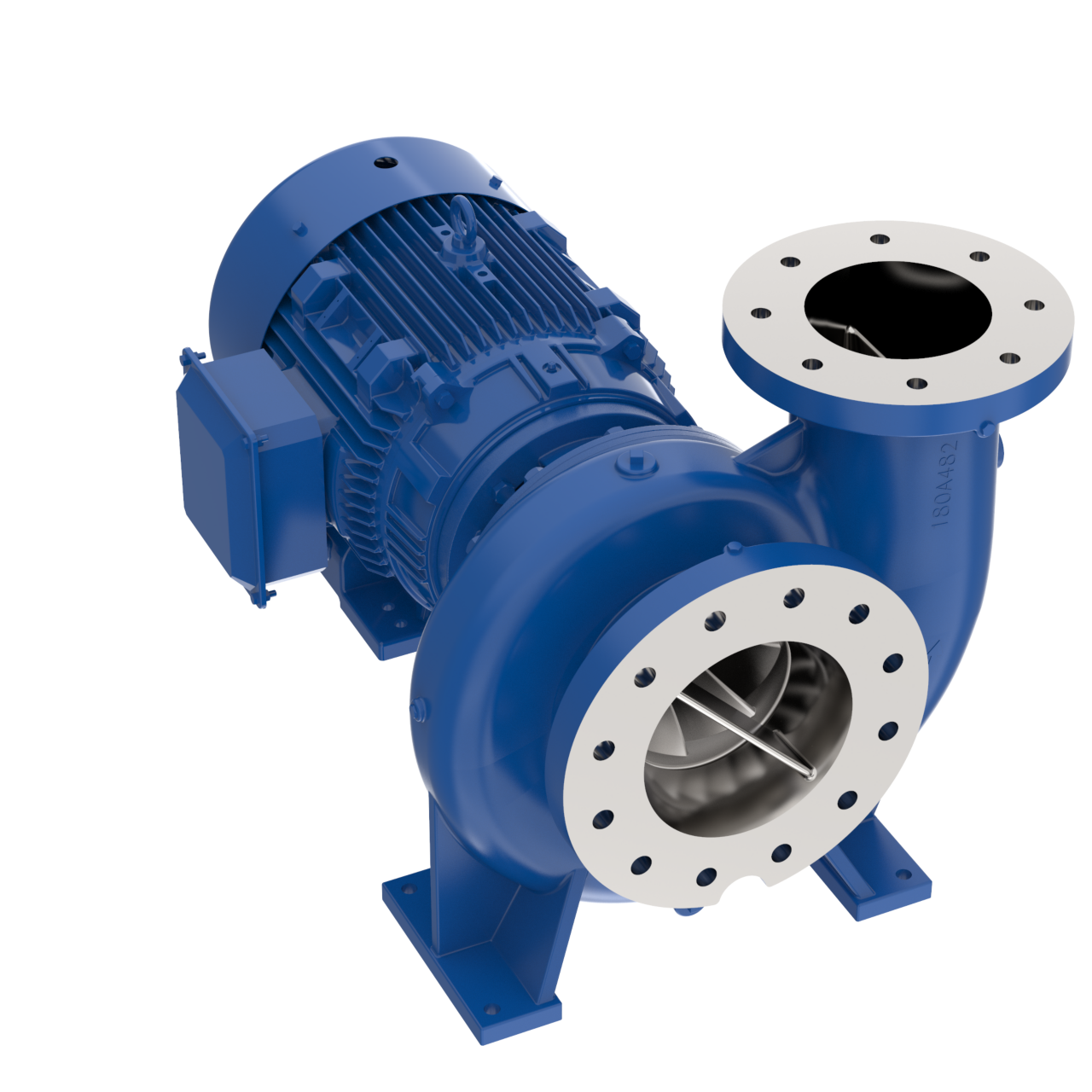

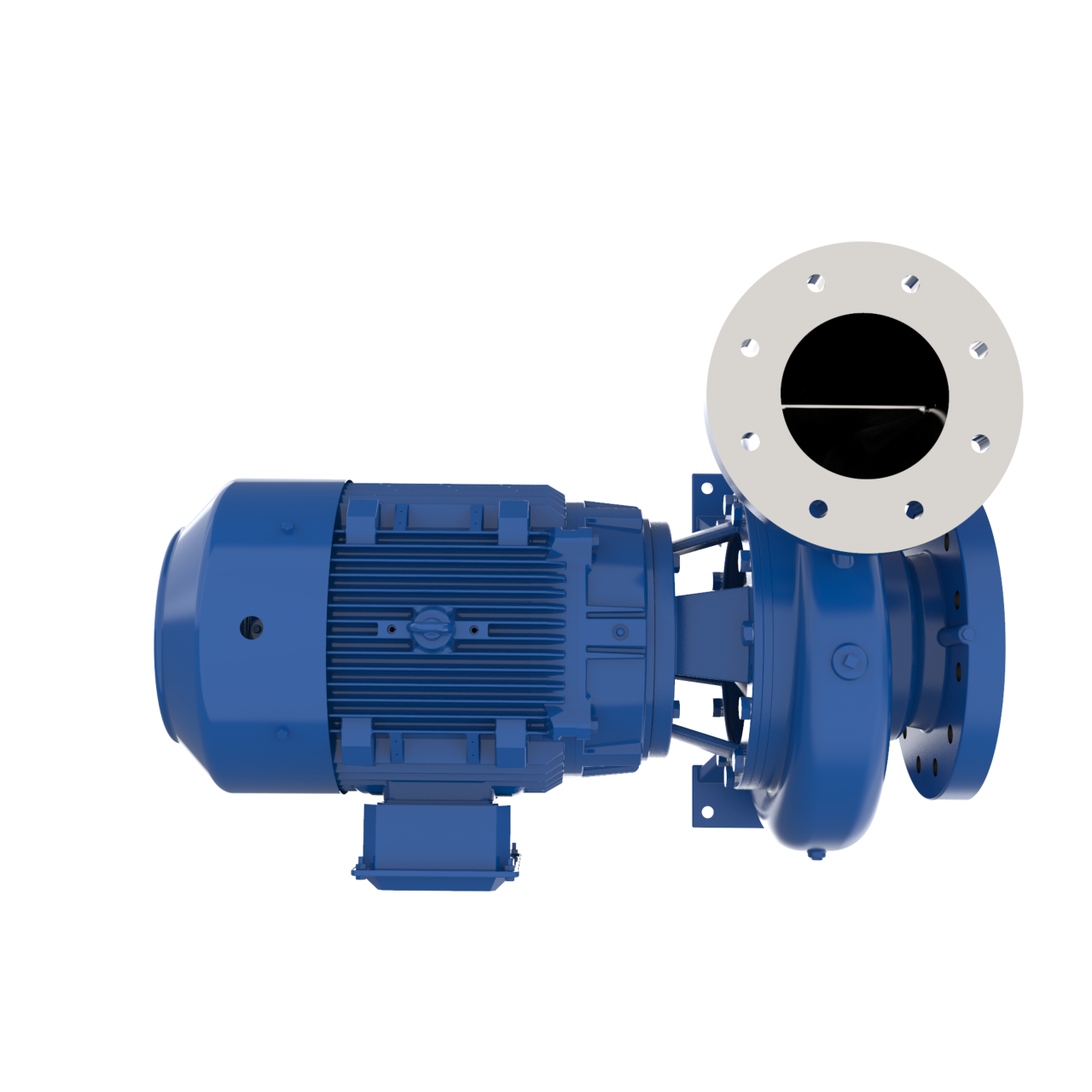

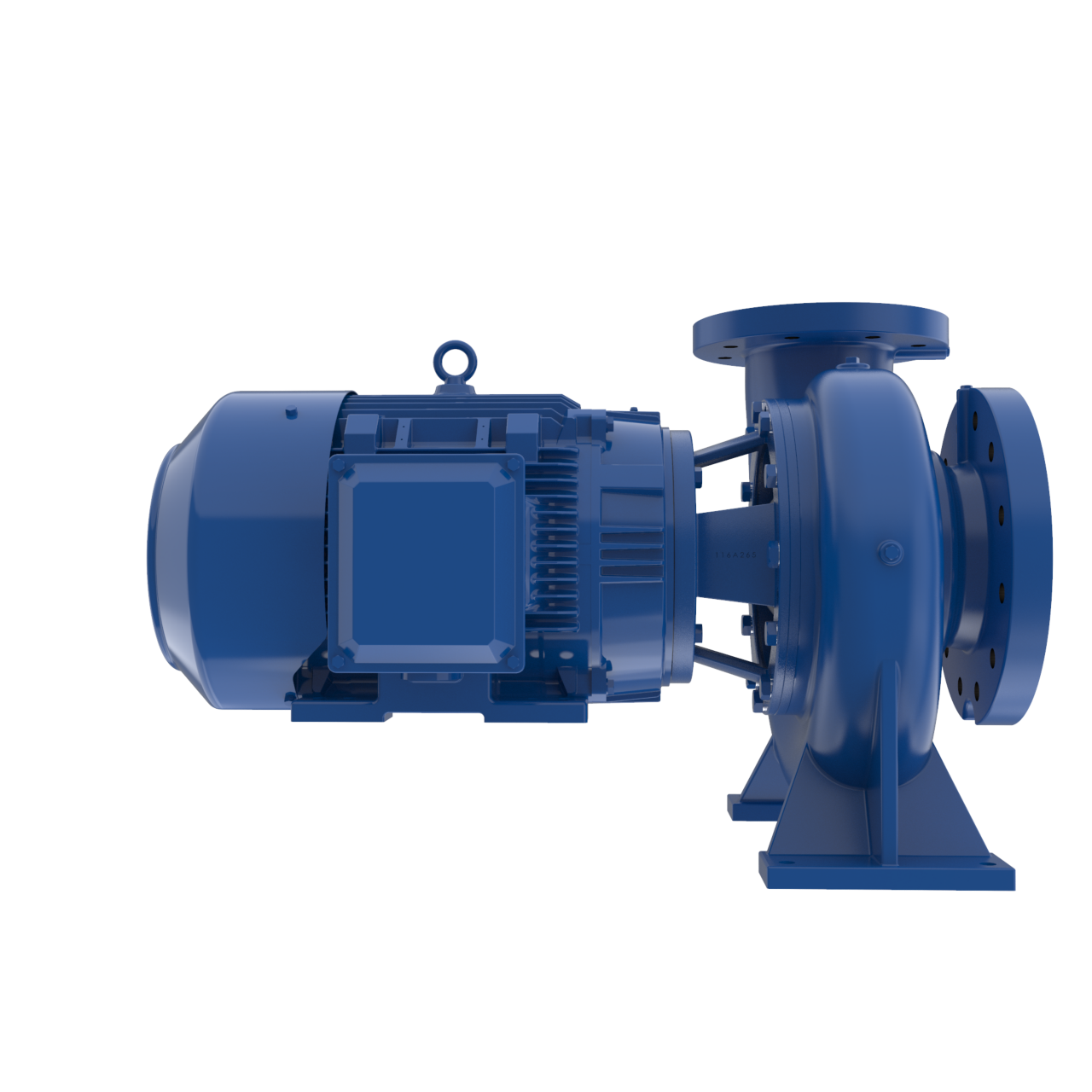

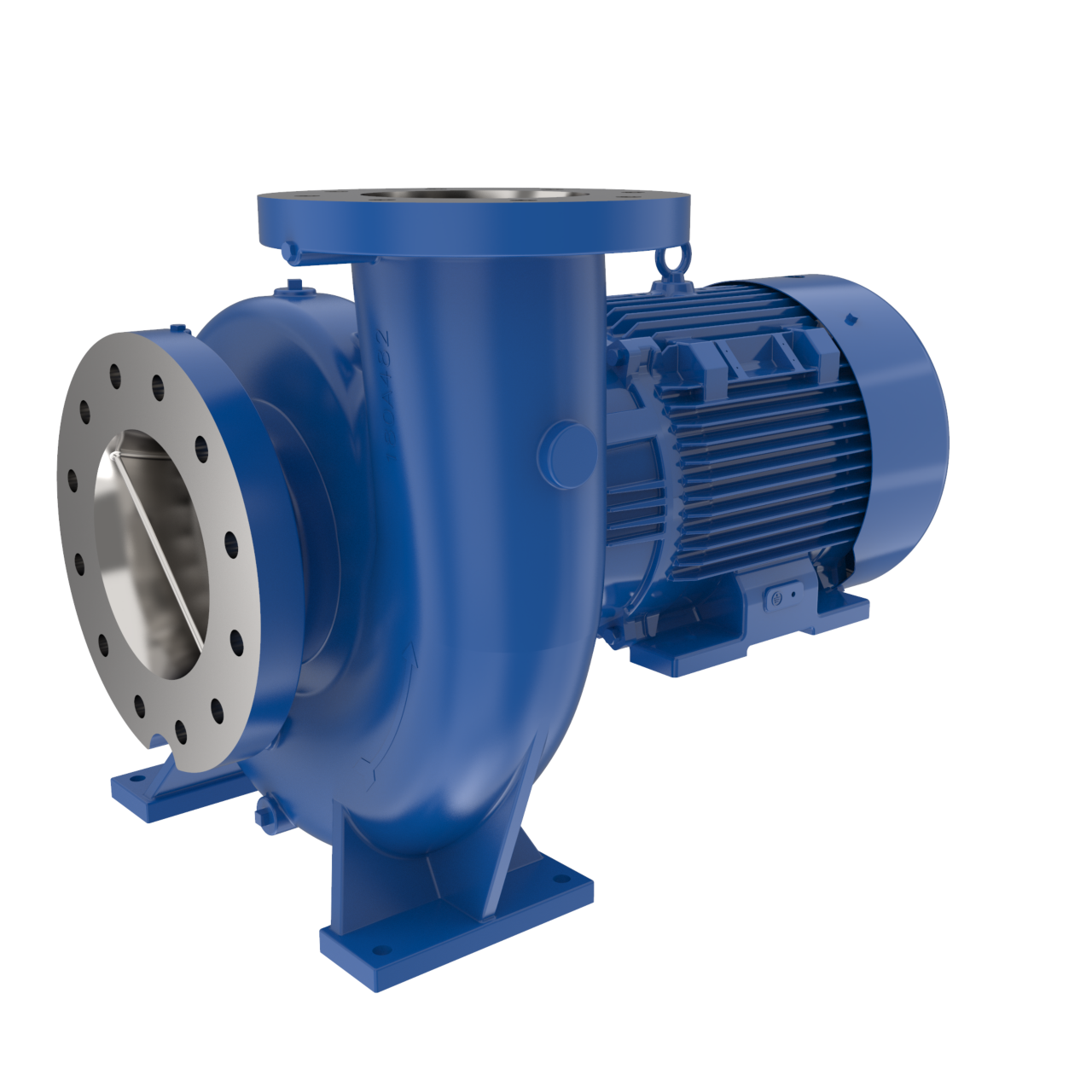

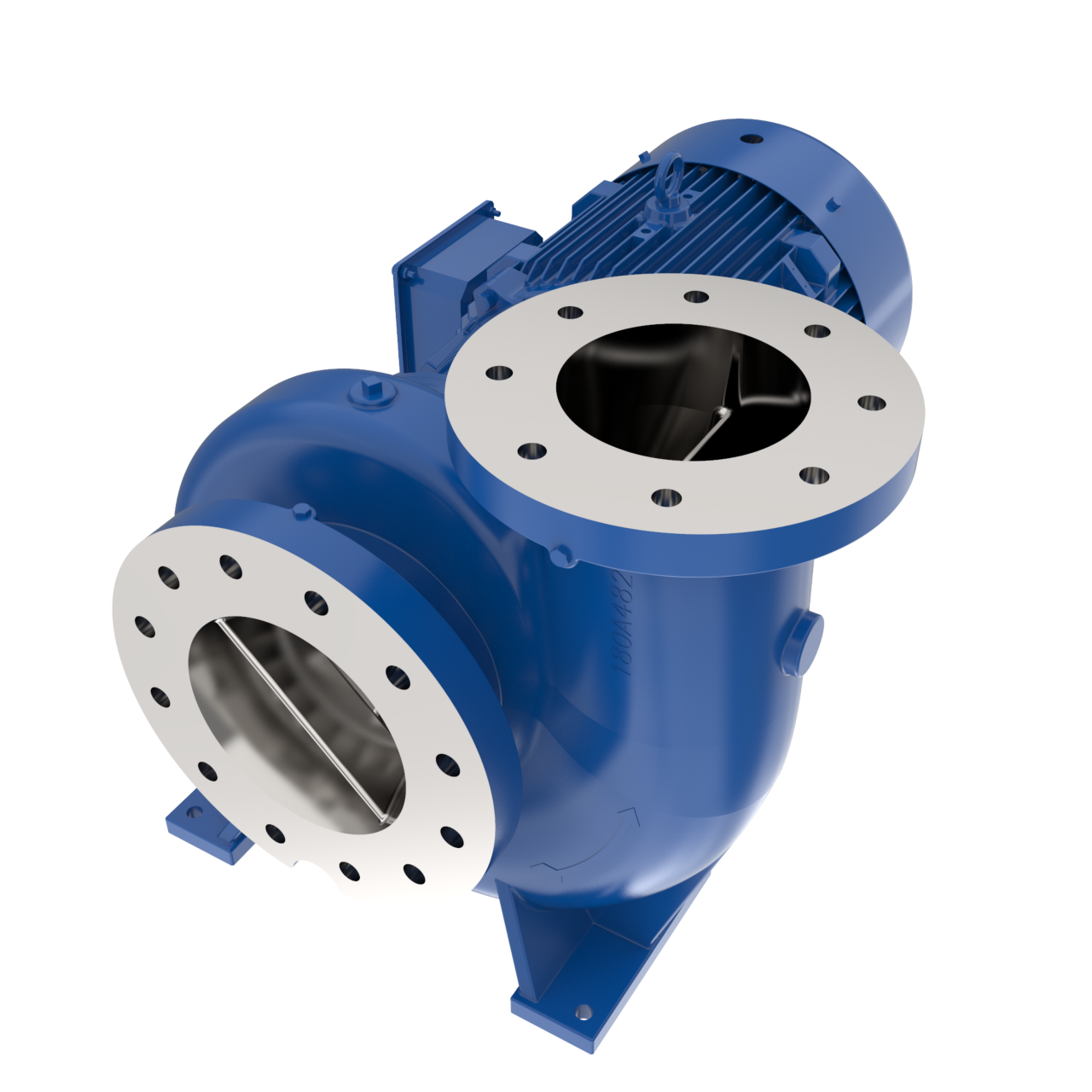

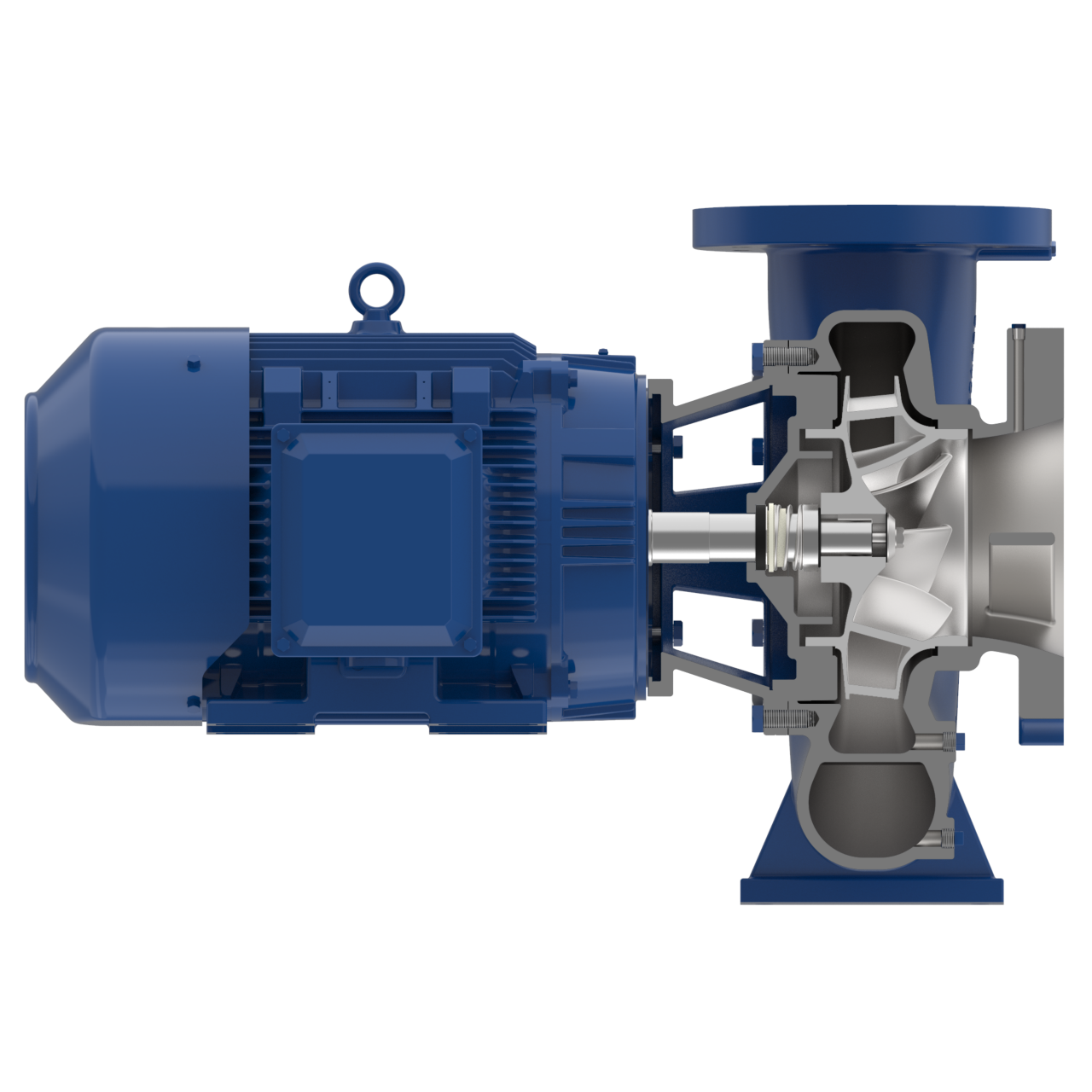

1650 - Close Coupled Legends
- Standard JM and JP motors provide low noise level pump operation
- Ductile iron casing long life with higher working pressures
- Factory Hydro test guarantees casing and seal integrity
- Double volute discharge on 4” discharge and larger to reduce bearing loads
- Suction splitter on 5” suction and larger to eliminate pre-rotation
- Casing feet for easy back pull out allows servicing of pump without disturbing suction and discharge pipelines
- Gauge taps on suction and discharge flanges
- Mechanical seal has carbon against ceramic face for optimum hot water performance. Long life is assured with 303 SST metal parts and Buna-N flexible elastomers
- Shaft sleeve to protect high strength design motor shaft
- Optional casing wear rings
- Optional seal materials

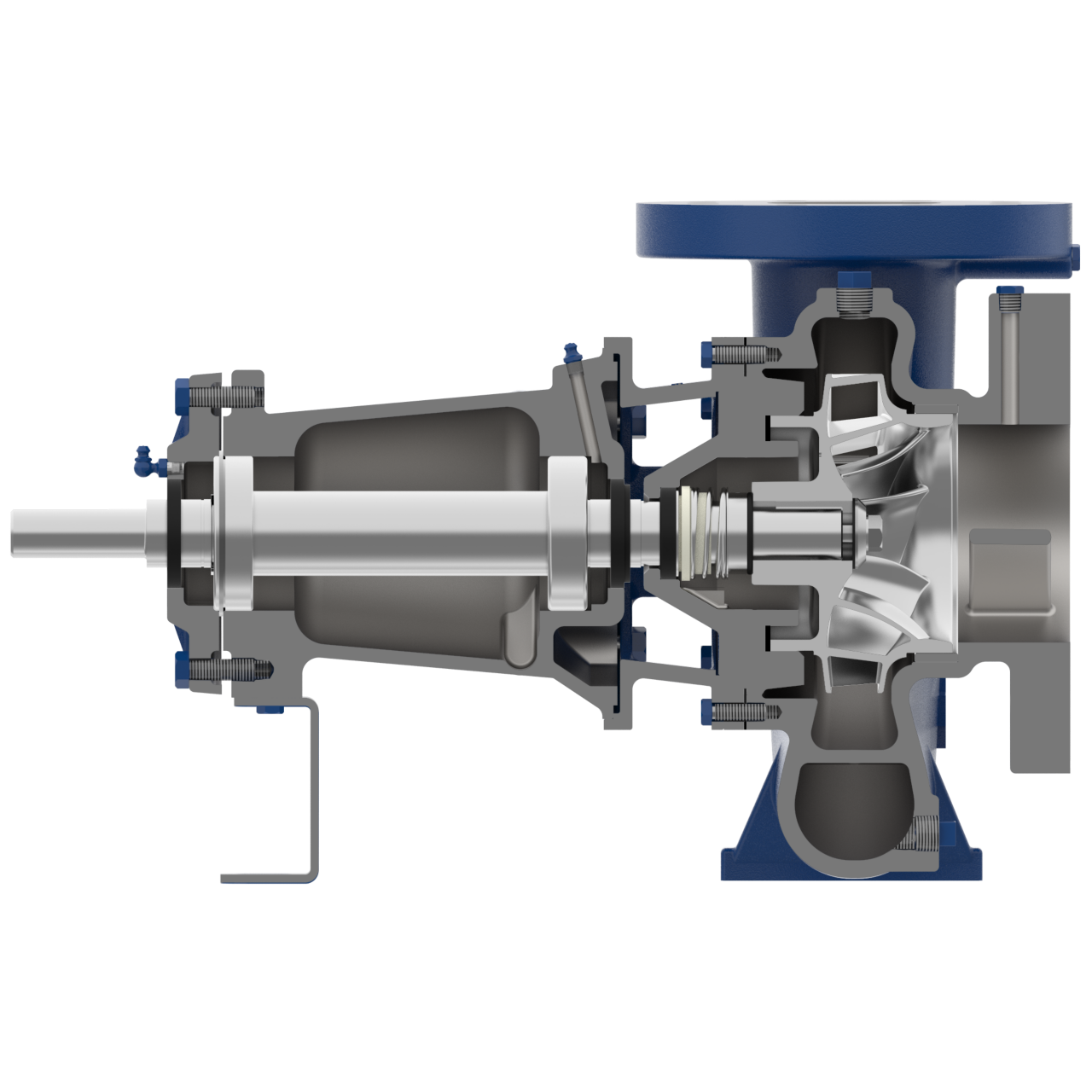

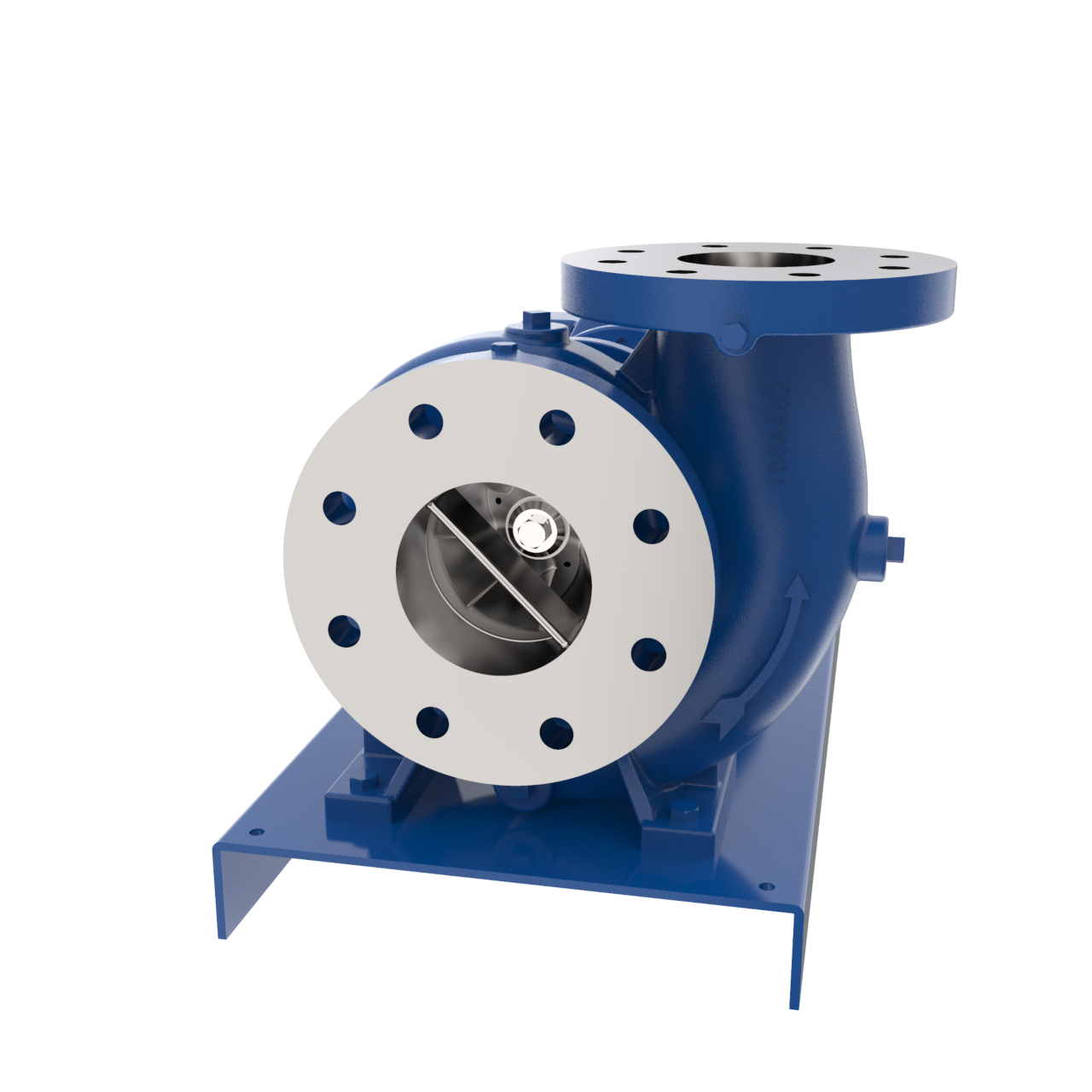

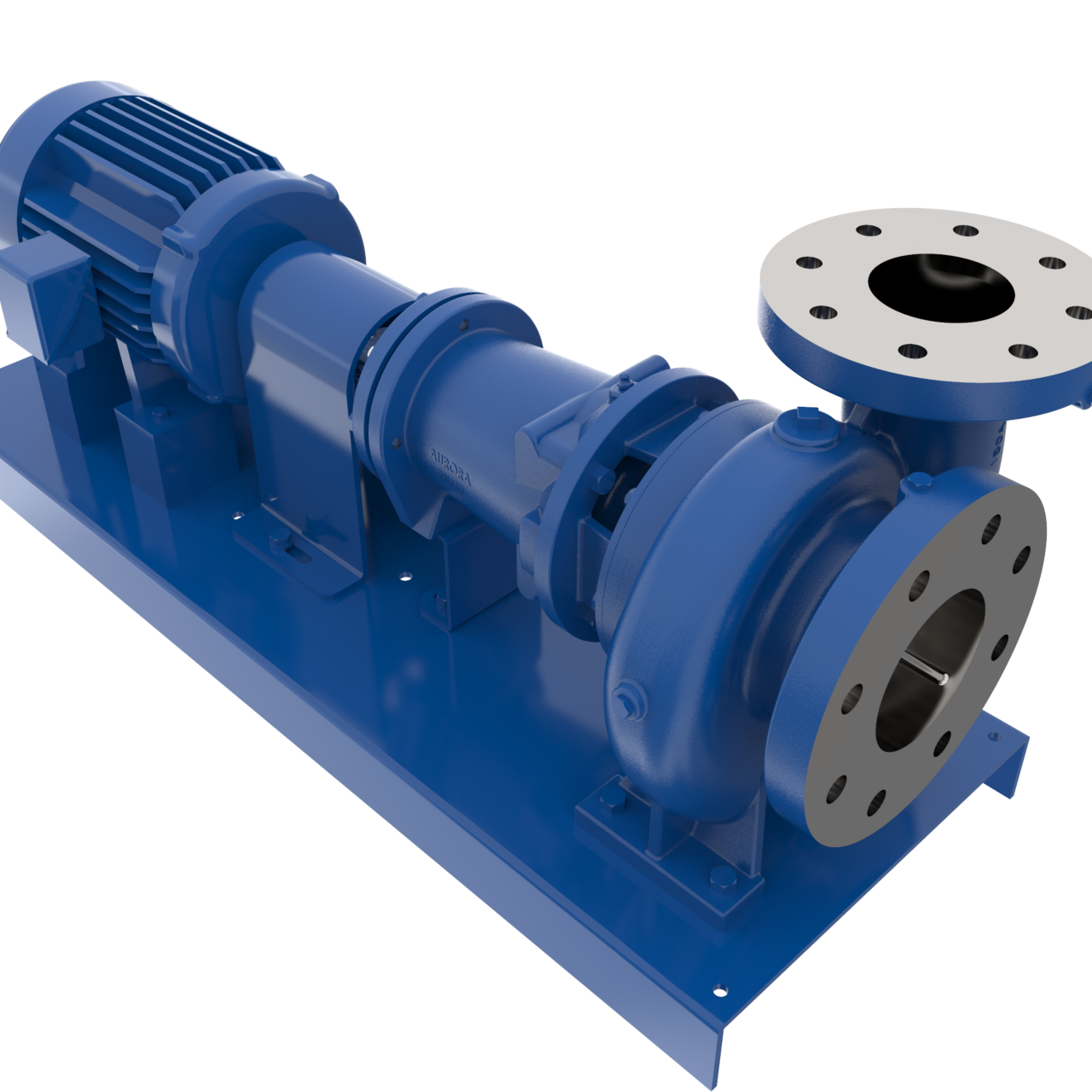

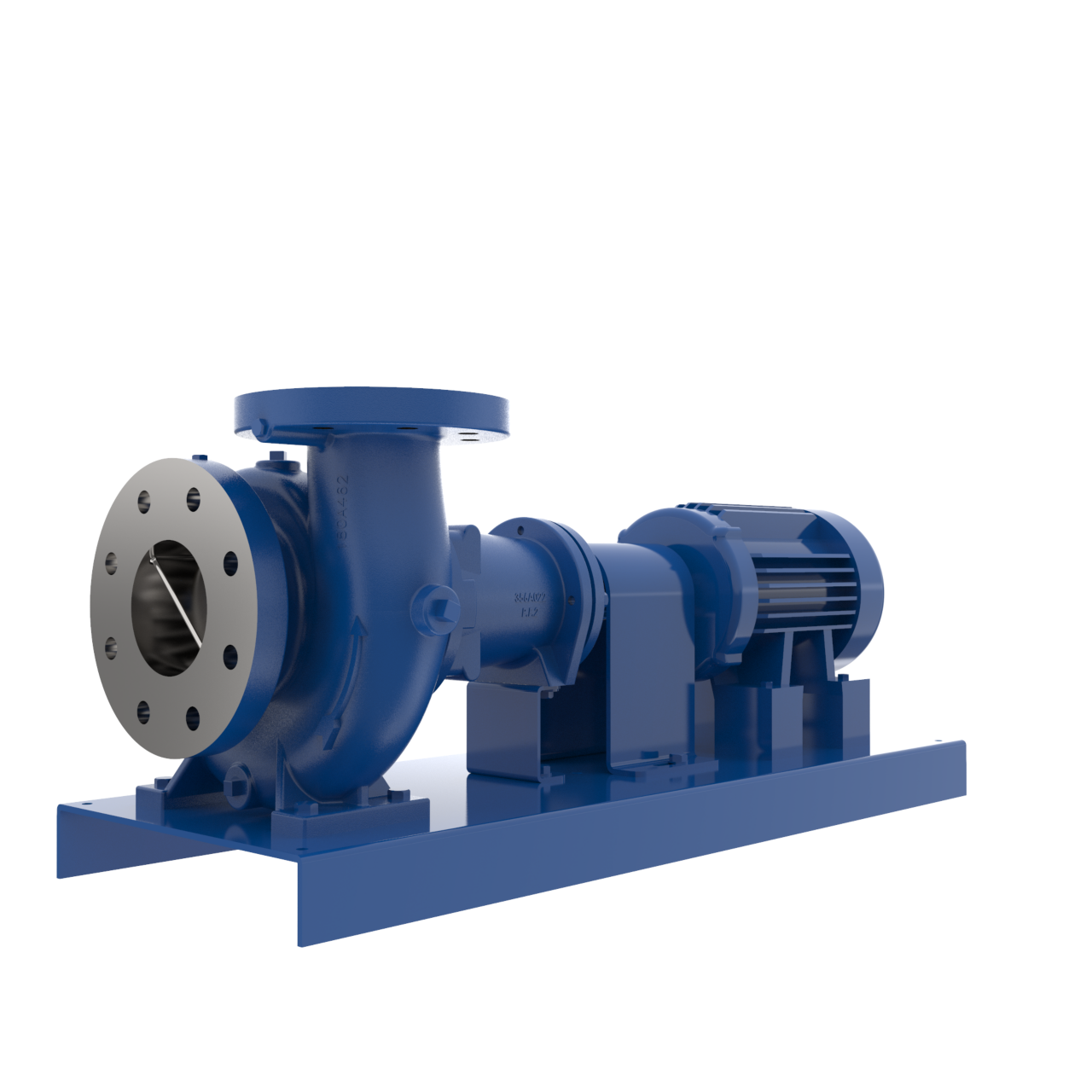

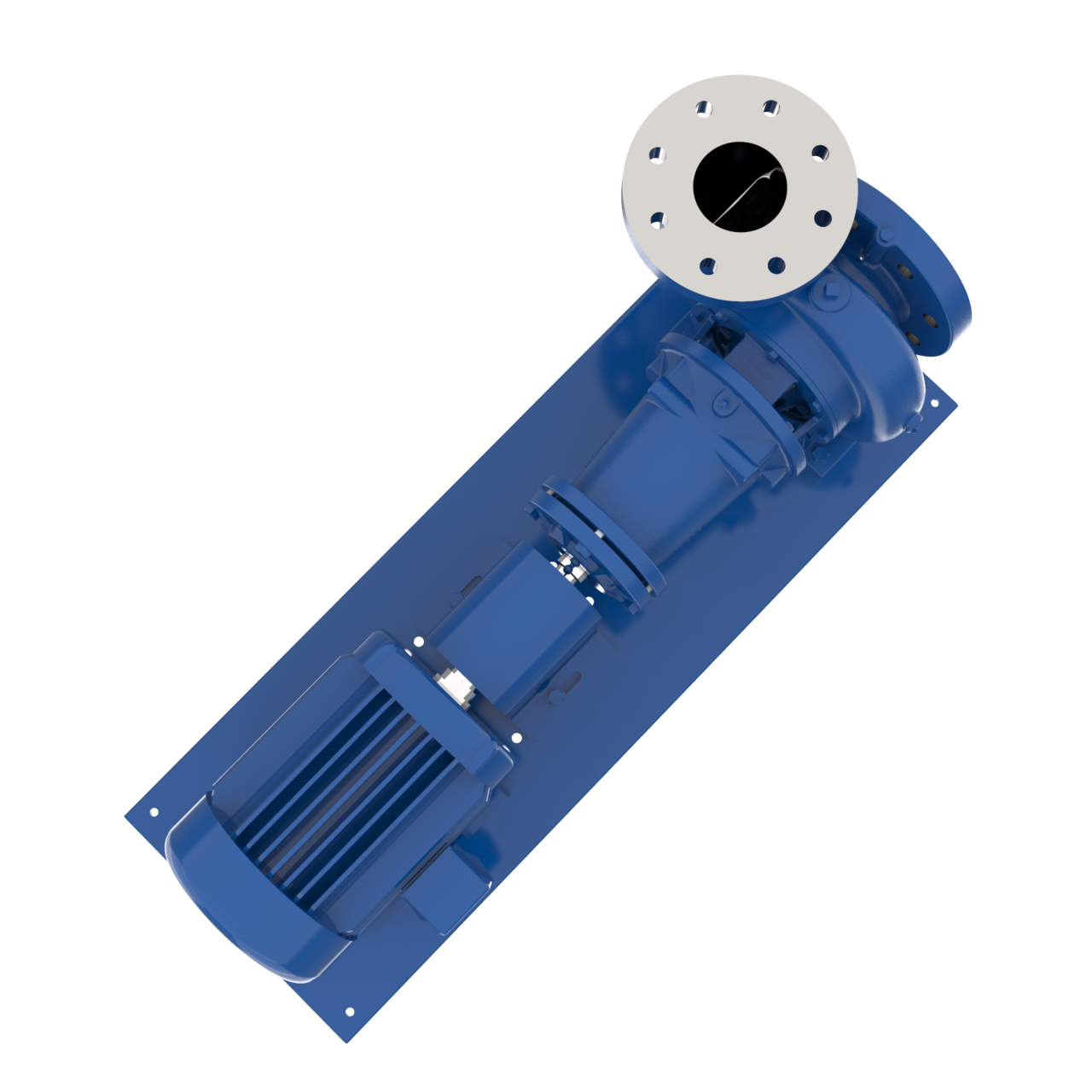

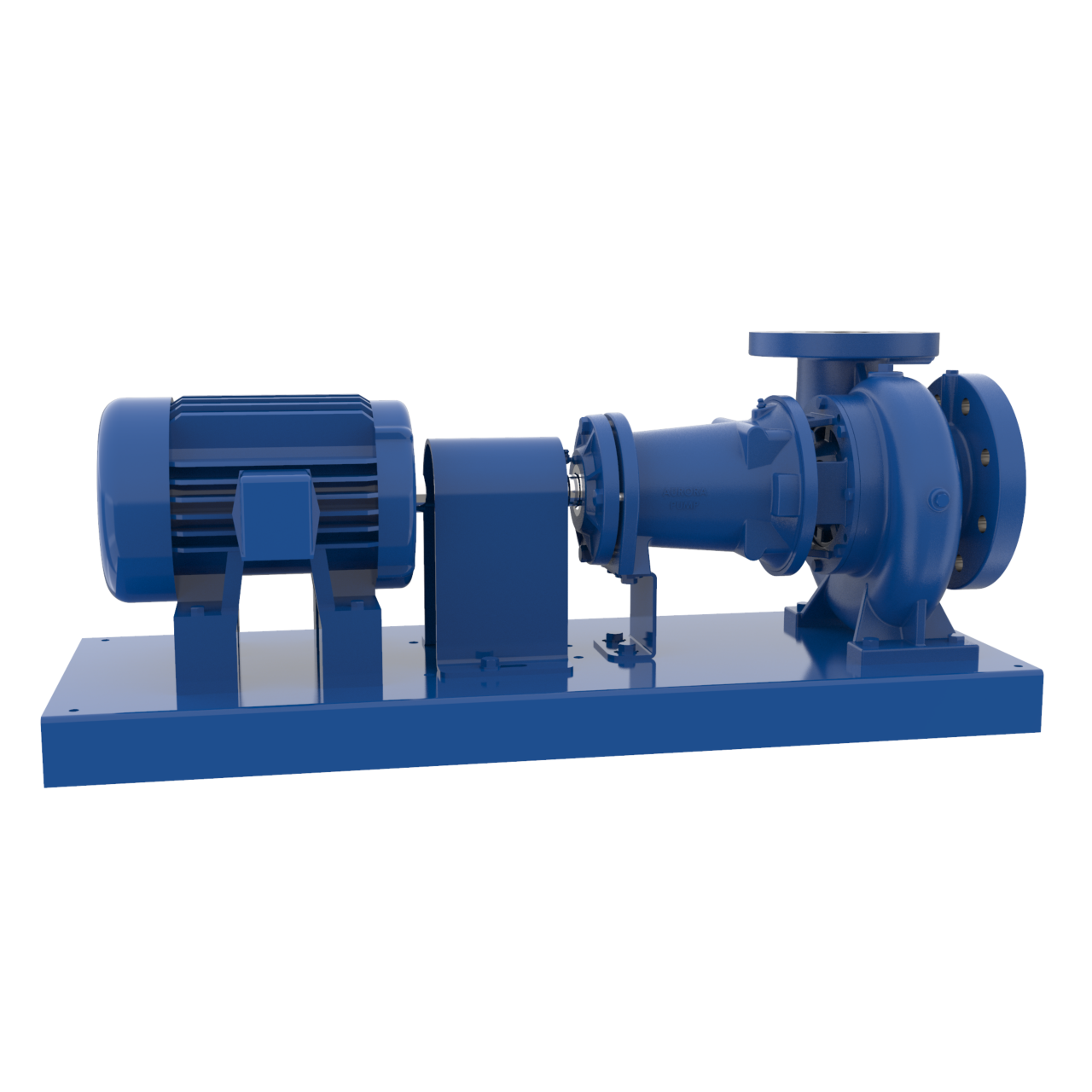

1620 – Flex Coupled Legends
- Standard T and TS base type motors provide low noise level pump operation
- Heavy duty power frame with re-greaseable bearing for long life
- Re-greaseable bearings
- Stainless steel shaft designed for minimum deflection
- Ductile iron casing provides long life with higher working pressures
- Factory Hydro test guarantees casing and seal integrity
- Double volute discharge on 4” discharge and larger to reduce bearing loads
- Suction splitter on 5” suction and larger to eliminate pre-rotation
- Casing feet for easy back pull out allows servicing of pump without disturbing suction and discharge pipelines
- Gauge taps on suction and discharge flanges
- Mechanical seal has carbon against ceramic face for optimum hot water performance. Long life is assured with 303 SST metal parts and Buna-N flexible elastomers
- Shaft sleeve to protect high strength design motor shaft
- Optional casing wear rings
- Optional seal materials
Resources
Downloads
- Fairbanks Nijhuis 1600 Series End Suction Pumps Manual
- Fairbanks Nijhuis 1600 Series End Suction Pump Repair Parts Index
- Fairbanks Nijhuis 1600 Series Brochure
- Fairbanks Nijhuis 1600 Series End Suction Pumps Technical Data
- Fairbanks Nijhuis 1600 Series Pumps Dimension Tables
- Fairbanks Nijhuis 1620 Spec Sheet
- Fairbanks Nijhuis 1650 Spec Sheet
- 1620 End Suction Revit
- 1650 End Suction Revit
