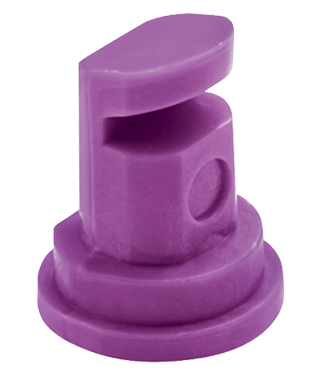

Pentair Hypro DeflecTip Nozzles
The DeflecTip wide-angle flood fan nozzle creates a wide pattern at very low pressures while creating mainly medium and coarse droplets. It is well suited for mounting on machinery where a wide angle or a low spray height is desired and on sprayers using very low pressures, including manual sprayers.
- Medium to coarse spray is suited for a variety of applications
- Larger sizes are suitable for liquid fertilizer applications
- Large circular orifice reduces the chances of blocking
- For use of single nozzles with knapsack/backpack sprayers
Specifications
Common Use:
Weeds & Fertilizer
Pattern:
Flood
Technology:
Deflection
Material:
Polyacetal
Spray Angle:
80˚-160˚
Pressure Range:
10-60 PSI (1-3 BAR)
Configuration:
Nozzle
| Item # | Nozzle Size | Droplet Size | Color |
|---|---|---|---|
| 30DT0.5 | 0.5 | F-VC | Orange |
| 30DT0.75 | 0.75 | F-XC | Green |
| 30DT1.0 | 1.0 | F-C | Yellow |
| 30DT1.5 | 1.5 | F-VC | Blue |
| 30DT2.0 | 2.0 | F-M | Red |
| 30DT2.5 | 2.5 | F-C | Brown |
| 30DT3.0 | 3.0 | M-C | Gray |
| 30DT4.0 | 4.0 | F-M | White |
| 30DT5.0 | 5.0 | F-M | Light Blue |
| 30DT7.5 | 7.5 | M-C | Green |
| Item # | Nozzle Size | Droplet Size | Color |
|---|---|---|---|
| 30DT0.5 | 0.5 | F-VC | Orange |
| 30DT0.75 | 0.75 | F-XC | Green |
| 30DT1.0 | 1.0 | F-C | Yellow |
| 30DT1.5 | 1.5 | F-VC | Blue |
| 30DT2.0 | 2.0 | F-M | Red |
| 30DT2.5 | 2.5 | F-C | Brown |
| 30DT3.0 | 3.0 | M-C | Gray |
| 30DT4.0 | 4.0 | F-M | White |
| 30DT5.0 | 5.0 | F-M | Light Blue |
| 30DT7.5 | 7.5 | M-C | Green |
| 30DT10 | 10 | M-C | Black |
| 30DT15 | 15 | M-C | Pink |
| 30DT20 | 20 | C-VC | Purple |
