Pentair Hypro Ultra Lo-Drift Ceramic 120˚ Spray Nozzles

Pentair Hypro Ultra Lo-Drift Ceramic spray nozzles feature large air-filled droplets to reduce drift while increasing droplet deposition and retention on foliage. It’s an extremely low-drift, air induction flat spray nozzle for systemic applications where drift reduction is paramount.

  • Up to 90% drift reduction depending on nozzle size and pressure
  • Coverage for herbicide applications
  • Increased work rate due to flexible use over a wide pressure range
  • Excellent deposition structure and crop penetration
Explore purchase options available for this product.
Where to Buy

KEY FEATURES

Ultra Lo-Drift Ceramic 120˚ Spray Nozzles

Spray pattern imaging

Spray Pattern

High-speed imaging of spray pattern produced by the Pentair Hypro Ultra Lo-Drift Ceramic spray nozzles.

Spray pattern imaging

Spray Pattern

High-speed imaging of spray pattern produced by the Pentair Hypro Ultra Lo-Drift Ceramic spray nozzles.

Previous
Next
0101

Specifications

Common Use: Plant Health
Pattern: Tapered Flat Fan
Technology: Air Induction
Material: Ceramic
Spray Angle: 120˚
Configuration: Tips, FastCap
Item #Pressure RangeNozzle SizeDroplet Size RangeFlow Rate
Item #
ULDC120-01
Pressure Range
45-115 PSI
Nozzle Size
01
Droplet Size Range
VC-M
Flow Rate
0.09-0.14 GPM
Item #
ULDC120-015
Pressure Range
45-115 PSI
Nozzle Size
015
Droplet Size Range
VC-M
Flow Rate
0.13-0.21 GPM
Item #

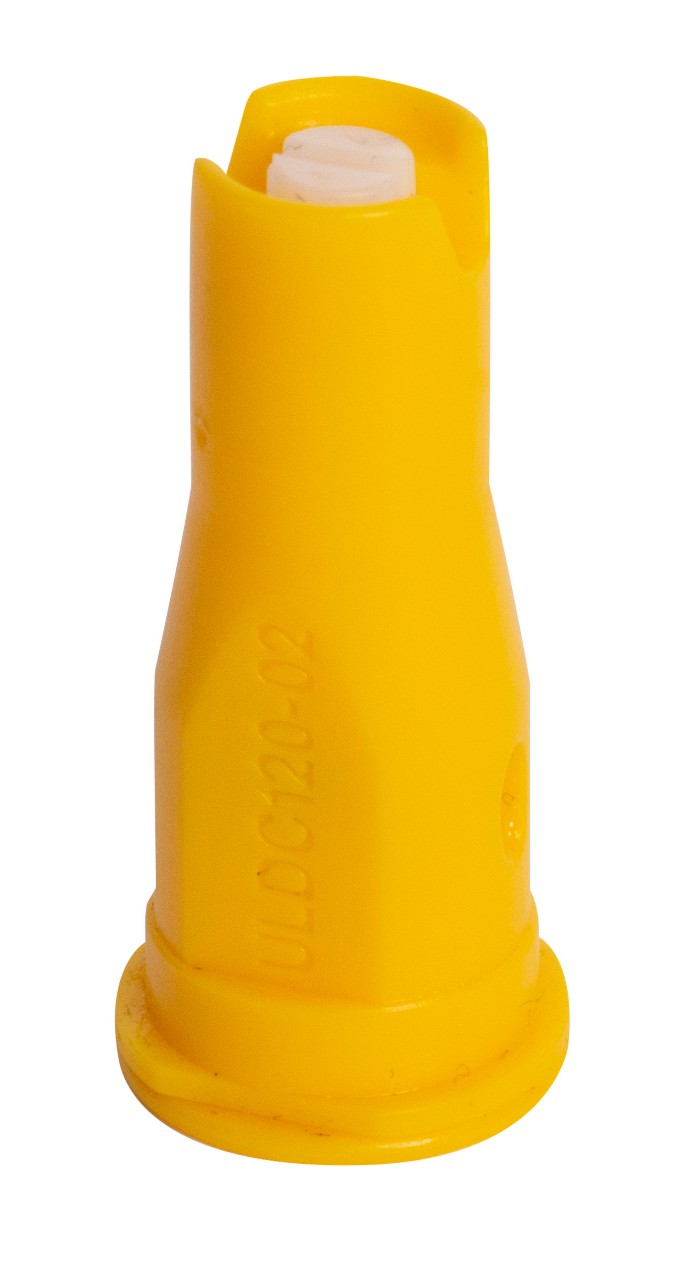

ULDC120-02
Pressure Range
30-115 PSI
Nozzle Size
02
Droplet Size Range
XC-M
Flow Rate
0.14-0.29 GPM
Item #

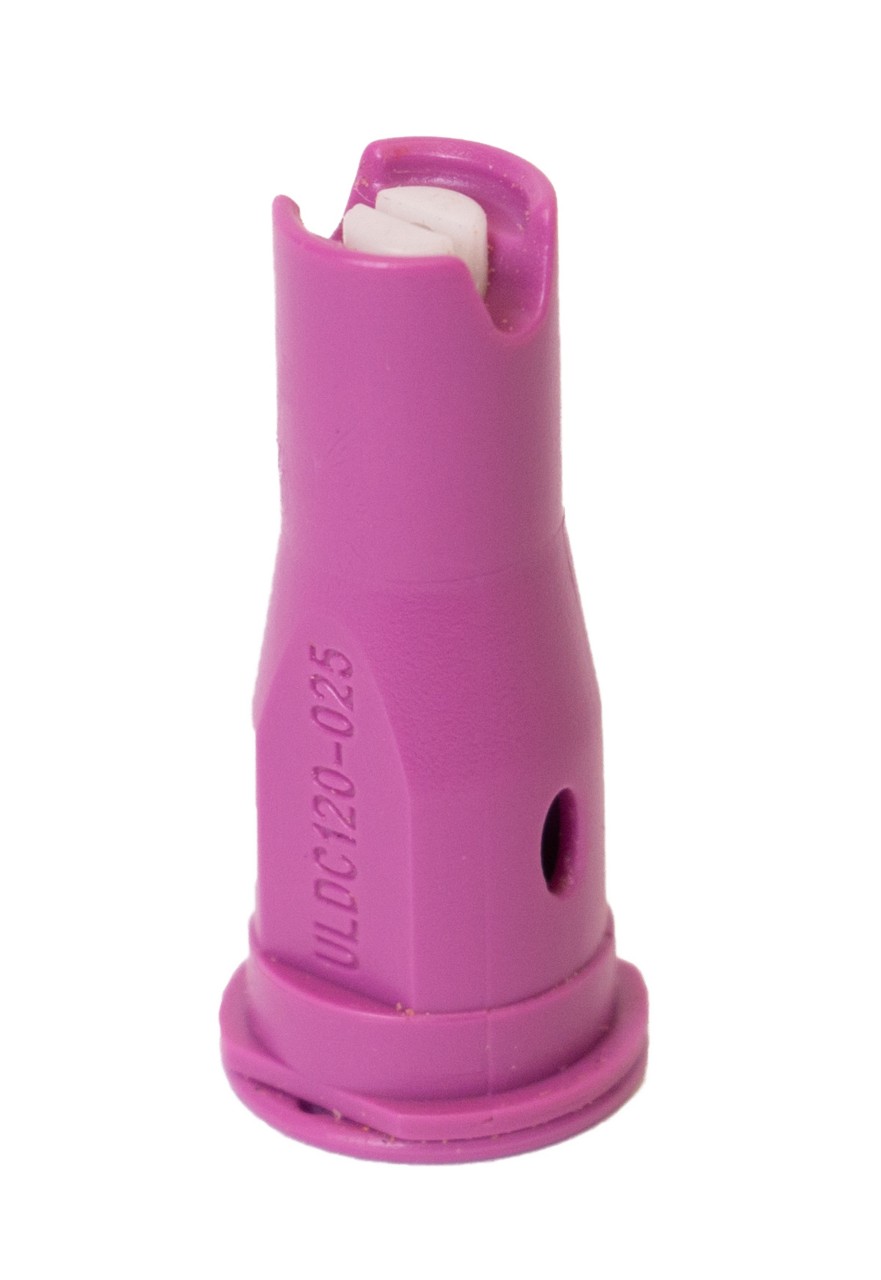

ULDC120-025
Pressure Range
30-115 PSI
Nozzle Size
025
Droplet Size Range
XC-M
Flow Rate
0.18-0.36 GPM
Item #

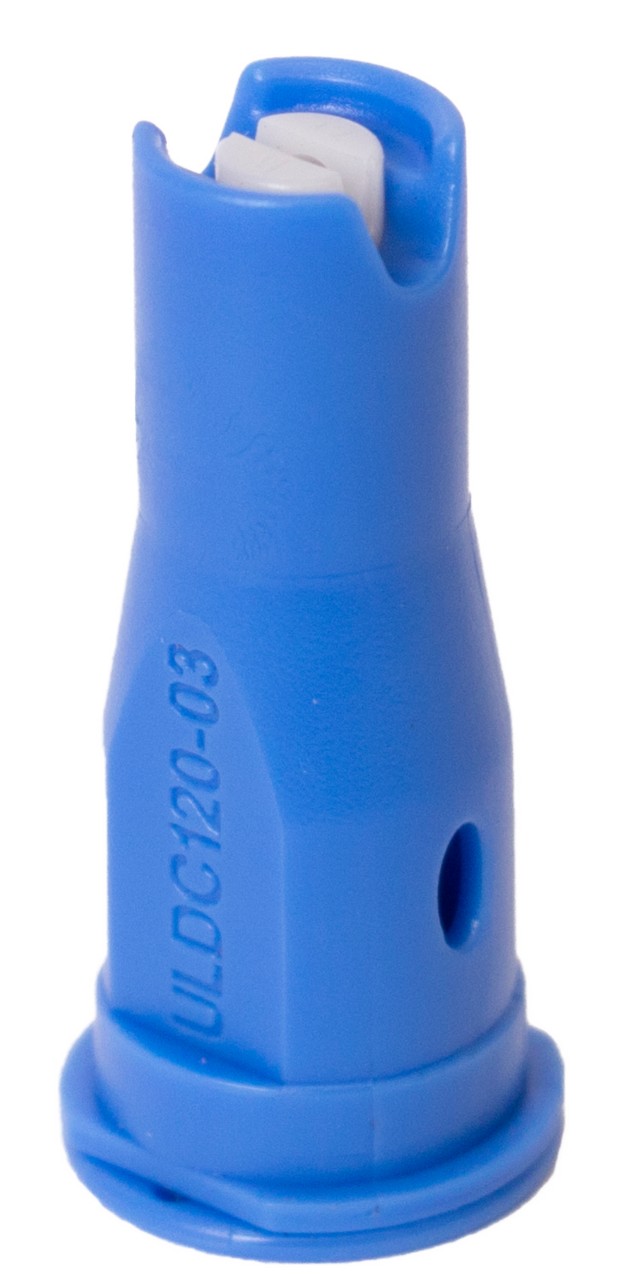

ULDC120-03
Pressure Range
30-115 PSI
Nozzle Size
03
Droplet Size Range
XC-M
Flow Rate
0.21-0.43 GPM
Item #
ULDC120-04
Pressure Range
30-115 PSI
Nozzle Size
04
Droplet Size Range
XC-M
Flow Rate
0.28-0.57 GPM
Item #
ULDC120-05
Pressure Range
30-115 PSI
Nozzle Size
05
Droplet Size Range
XC-M
Flow Rate
0.35-0.71 GPM
Item #
ULDC120-06
Pressure Range
30-115 PSI
Nozzle Size
06
Droplet Size Range
XC-C
Flow Rate
0.42-0.85 GPM
