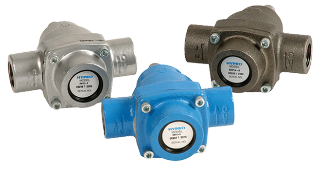

Pentair Hypro 4001 Series 4 Roller Pump
- Pentair Hypro Shurflo Catalog
- Pentair Hypro 1502, 1700, 4001, 4101, 6500, 7560 and 7700 Roller Pumps Manual
- Pentair Hypro 1502, 1700, 4001, 4101, 6500, 7560 and 7700 Roller Pumps Repair Manual
- Pentair Hypro 4000 Parts Illustration
- roller-4001c-3d-step-file.zip
- Roller 4001C-H 3D STEP File
- roller-4001n-e2h-3d-step-file.zip
- roller-4001c-r-3d-step-file.zip
Specifications
Pump Type:
Roller Pump
Ports:
3/4" NPT
Housing Material:
Cast Iron (C), Ni-Resist (N) or Silvercast (XL)
Seal Material:
Viton® standard
WEIGHT:
5 lbs./2.3 kg
Max Fluid Temperature:
140°F/60°C
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output (US) | Shaft Output (Metric) | Shaft |
|---|
| 4001C | 9.1 | 34.4 | 150 | 10.3 | 1800 | 5/8" | 15.9 mm | Solid |
| 4001C-H | 9.1 | 34.4 | 150 | 10.3 | 1800 | 1/2" | 12.7 mm | Hollow |
| 4001 | 9.1 | 34.4 | 150 | 10.3 | 1800 | 5/8" | 15.9 mm | Solid |
| 4001N-H | 9.1 | 34.4 | 150 | 10.3 | 1800 | 1/2" | 12.7 mm | Hollow |
| 4001XL | 9.1 | 34.4 | 150 | 10.3 | 1800 | 5/8" | 15.9 mm | Solid |
| 4001XL-H | 9.1 | 34.4 | 150 | 10.3 | 1800 | 1/2" | 12.7 mm | Hollow |
