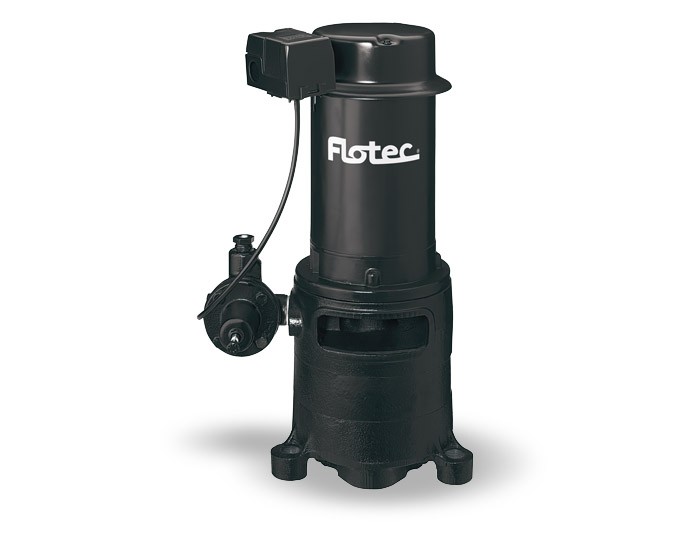

Pentair Flotec FP4432-01 1 HP Vertical Deep Well Jet Pump

Main Content Starts Here

Pentair Flotec FP4432-01 1 HP Vertical Deep Well Jet Pump

Vertical deep well jet pump can be used in 4" diameter or larger wells up to 260', or in 2" diameter wells up to 180'.

KEY FEATURES

  • Superior performance at depths to water of 50' or more
  • Rugged, heavy-duty cast iron pump housing
  • Ready-to-install 230 volt motor - see manual for 115 volt conversion

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

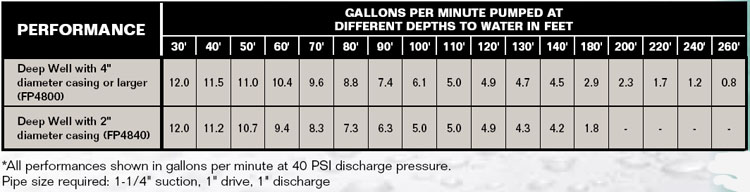

Performance Curves

PerformanceCurves_Vertical Deep Well Jet Pump 1 HP

Accessories

Resources

OWNER'S MANUAL

Download Manual

PARTS LISTING

Download Parts

SPECIFICATIONS

Download Specifications

GENERAL JET PUMP RESOURCES

Pressure Switch Adjustment

Specifications

BODY CONSTRUCTION: Cast Iron
MAX LIFT: 260' for 4" or larger well / 180' for 2" well
PRESSURE SWITCH SETTING: 40/60
Suction Pipe Size: 1-1/4" NPT
Drive Pipe Size: 1" NPT
DISCHARGE PIPE SIZE: 1" NPT
MAXIMUM WATER TEMPERATURE: 140 F (60 C)
Item #Horse PowerMAXIMUM CAPACITYFLOW at 50-foot LIFT and 40 PSIAMP DRAWVoltageRECOMMENDED BREAKER
FP4432-011 HP12 GPM11 GPM1" NPT230v / 115v, 60 Hz15 amp for 230v / 20 amp for 115v
Item #Horse PowerMAXIMUM CAPACITYFLOW at 50-foot LIFT and 40 PSIAMP DRAWVoltageRECOMMENDED BREAKER
FP4432-011 HP12 GPM11 GPM1" NPT230v / 115v, 60 Hz15 amp for 230v / 20 amp for 115v
Show less
