Shurflo MINI Water Boost Systems
Main Content Starts Here
SKU#: 804-001

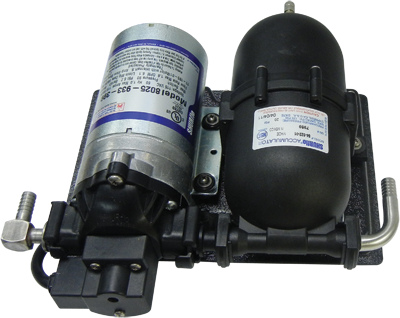

Mini. Water Boost, 115VAC
3Cp 3EMaintains consistent water pressure for fountain 2C coffee and drinking water applications. Increases flow and pressure to carbonated and non-carbonated soda valves for consistent drink quality. Maximizes cartridge life on filtration systems. 3C 2Fp 3E 0D 0A 3Cul 3E 0D 0A 3Cli 3EReplaceable bladder for maximum system life and simple maintenance 3C 2Fli 3E 0D 0A 3Cli 3ESelf-priming pump can run dry without damage 3C 2Fli 3E 0D 0A 3Cli 3EEliminates pulsation at dispenser valve resulting in more accurate brix ratio and maximum syrup utilization 3C 2Fli 3E 0D 0A 3Cli 3ELow profile allows for undercounter installation 3C 2Fli 3E 0D 0A 3Cli 3ERigid stainless steel tanks 3C 2Fli 3E 0D 0A 3Cli 3EReplaceable bladder 3C 2Fli 3E 0D 0A 3Cli 3EQuick connect fittings 3C 2Fli 3E 0D 0A 3C 2Ful 3E 0D 0A
Models / Specs
| Item # | Image | Model Number | Drag Down Volume (Gal.) | Inlet/Outlet Connection | Shutoff Pressure (PSI) | Tank Size (Gal.) | Voltage (VAC) |
|---|---|---|---|---|---|---|---|
| 804-001 |  |
Mini. Water Boost, 115VAC | 0.0625 | 3/8" Barb | 60 | 0.16 | 115VAC |
| 804-002 |  |
Mini. Water Boost, 115VAC | 0.0625 | 3/8" Barb | 90 | 0.16 | 115VAC |
| 804-021 |  |
Mini. Water Boost, 230VAC | 0.0625 | 3/8" Barb | 90 | 0.16 | 230 VAC |
| 804-042 |  |
Mini. Water Boost, 240VAC | 0.0625 | 3/8" Barb | 90 | 0.16 | 240 VAC |
| 804-101 |  |
Mini. Water Boost, 115VAC | 0.0625 | 3/8" Barb | 60 | 0.16 | 115 VAC |
