SKU#: 804-002

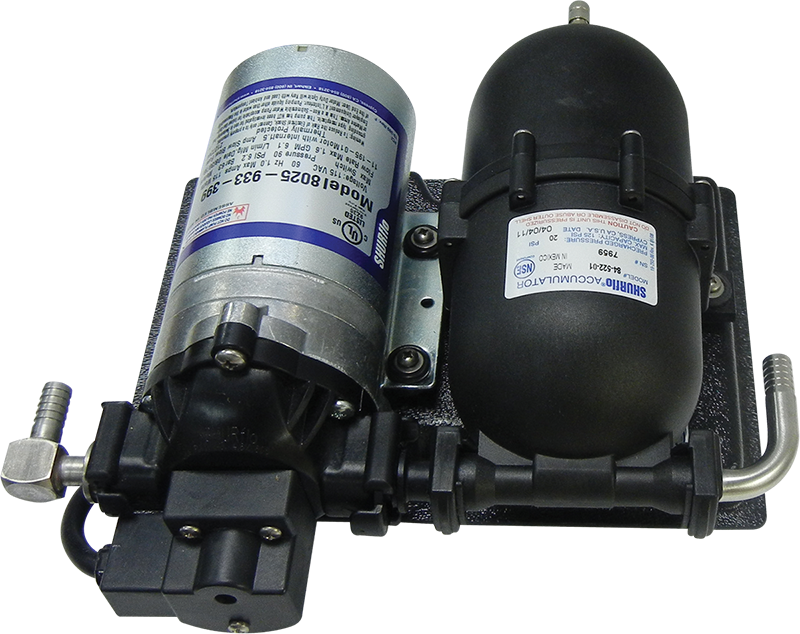

Mini. Water Boost, 115VAC

The increased popularity of non-carbonated drinks and the inconsistency of city water pressure and flow often leads to the need for a water boost system to deliver quality drinks in many installations. Shurflo’s Water Boost Systems are designed for applications where low, fluctuating, or no water pressure exists. The pump and accumulator tank maintain consistent water pressure to one or more dispensing valves or faucets.
  • Pumps and tanks are NSF-, UL- and CSA-listed
  • Features reliable Shurflo 8025 Series Pumps
  • Can run dry without damage
  • Self-priming up to 8 vertical feet (2.4 m)

You need to choose options for your item.

Item added to cart

Mini. Water Boost, 115VAC
Mini. Water Boost, 115VAC
SKU#: 804-002
QTY:

Resources

Models / Specs

Item #ImageModel NumberDrag Down Volume (Gal.)Inlet/Outlet ConnectionShutoff Pressure (PSI)Tank Size (Gal.)Voltage (VAC)
804-001 Mini. Water Boost, 115VAC 0.0625 3/8" Barb 60 0.16 115VAC
804-002 Mini. Water Boost, 115VAC 0.0625 3/8" Barb 90 0.16 115VAC
804-021 Mini. Water Boost, 230VAC 0.0625 3/8" Barb 90 0.16 230 VAC
804-042 Mini. Water Boost, 240VAC 0.0625 3/8" Barb 90 0.16 240 VAC
804-101 Mini. Water Boost, 115VAC 0.0625 3/8" Barb 60 0.16 115 VAC
