Pentair Hypro 9000C-O Series Gear Driven Cast Iron Centrifugal Pumps
Main Content Starts Here

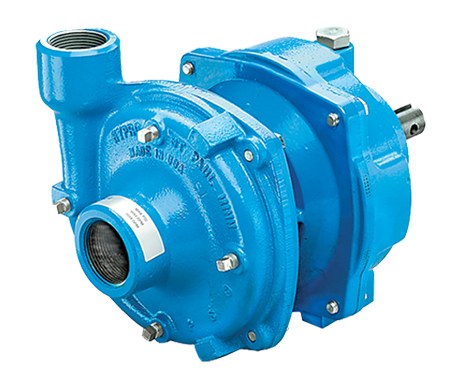

Pentair Hypro 9000C-O Series Gear Driven Cast Iron Centrifugal Pumps
This planetary oil-bath gear driven, cast iron pump achieves up to 110-117 gpm (416-443 lpm) and 78 psi (5.4 bar).
- Planetary oil-bath gear drive
- Pump shaft rotation: Counter clockwise when looking at the shaft end
- Life Guard seals are the industry standard on OEM equipment
Specifications
Housing Material:
Cast Iron
Pump Type:
Centrifugal
Drive Type:
Gear Driven
Seal Material:
Viton ® /ceramic standard; Life Guard silicon carbide (B) available
Max Fluid Temperature:
140°F/60°C
Ports:
1-1/2" NPT inlet, 1-1⁄4" NPT outlet
Impeller:
Nylon
| Item # | Max GPM | Max PSI | Max RPM | Max LPM | Max BAR | PTO Output | Locking Collar & Mounting Clip |
|---|---|---|---|---|---|---|---|
| 9006C-O | 117 | 78 | 600 | 443 | 5.4 | 1-3⁄8" 6 spline (SAE) 540 rpm female | x |
| 9008C-O | 110 | 75 | 1000 | 416 | 5.4 | 1-3⁄8" 21 spline (SAE) 1000 rpm female | x |
| 9016C-O | 117 | 78 | 600 | 443 | 5.4 | 1" ( 25.4 mm) Solid Shaft | |
| 9018C-O | 110 | 75 | 1000 | 416 | 5.2 | 1" ( 25.4 mm) Solid Shaft | |
| 9028C-O | 110 | 75 | 1000 | 416 | 5.2 | 1-3⁄4" 20 spline (SAE) 1000 rpm female | x |
| 90029 | 110 | 75 | 1000 | 416 | 5.2 | 38mm 8 spline 1000 rpm female | x |
| Item # | Max GPM | Max PSI | Max RPM | Max LPM | Max BAR | PTO Output | Locking Collar & Mounting Clip |
|---|---|---|---|---|---|---|---|
| 9006C-O | 117 | 78 | 600 | 443 | 5.4 | 1-3⁄8" 6 spline (SAE) 540 rpm female | x |
| 9008C-O | 110 | 75 | 1000 | 416 | 5.4 | 1-3⁄8" 21 spline (SAE) 1000 rpm female | x |
| 9016C-O | 117 | 78 | 600 | 443 | 5.4 | 1" ( 25.4 mm) Solid Shaft | |
| 9018C-O | 110 | 75 | 1000 | 416 | 5.2 | 1" ( 25.4 mm) Solid Shaft | |
| 9028C-O | 110 | 75 | 1000 | 416 | 5.2 | 1-3⁄4" 20 spline (SAE) 1000 rpm female | x |
| 90029 | 110 | 75 | 1000 | 416 | 5.2 | 38mm 8 spline 1000 rpm female | x |
