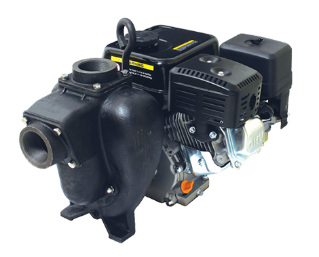

Pentair Hypro 1530 Series Centrifugal Pumps
Pentair Hypro 1530 Series Centrifugal Pumps
Pentair's Hypro line of high-powered, gas engine, self-priming, cast iron transfer pumps are available in multiple configurations including PowerPro gas engine drive, hydraulic motor drive, pump kit for gas engines, pedestal pump, and pump kit for electric motor.
- Gas engine driven (EPA & CARB certified)
- Pump seals: fluoro elastomer (viton)
- Suction lift: 20 ft. (6 m)
- Flapper valve: EPDM
- Comes standard with silicon carbide mechanical seals, use optional carbon ceramic if 1532C-6SP pumping liquid fertilizer
Specifications
Pump Type:
Transfer Pump
Drive Type:
Gas engine driven (EPA & CARB certified)
Seal Material:
Fluoroelastomer (viton)
| Item # | Max GPM | Max LPM | Max BAR | Max PSI | Ports | Engine Manufacturer & HP |
|---|---|---|---|---|---|---|
| 1532C-6SP | 170 | 644 | 42 | 42 | 2" x 2" NPT | PowerPro 6.5 hp |
| 1532C-160HSP | 170 | 644 | 42 | 42 | 2.9 | Honda GX160 |
| 1533C-13SP | 330 | 1249 | 4.1 | 60 | 3" x 3" NPT | PowerPro 13 hp |
| 1533C-13ESP | 330 | 1249 | 4.1 | 60 | 3" x 3" NPT | PowerPro 13 hp w/ electric start |
| 1533C-390EHSP | 330 | 1249 | 4.1 | 60 | 3" x 3" NPT | Honda GX390 w/ electric start |
| Item # | Max GPM | Max LPM | Max BAR | Max PSI | Ports | Engine Manufacturer & HP |
|---|---|---|---|---|---|---|
| 1532C-6SP | 170 | 644 | 42 | 42 | 2" x 2" NPT | PowerPro 6.5 hp |
| 1532C-160HSP | 170 | 644 | 42 | 42 | 2.9 | Honda GX160 |
| 1533C-13SP | 330 | 1249 | 4.1 | 60 | 3" x 3" NPT | PowerPro 13 hp |
| 1533C-13ESP | 330 | 1249 | 4.1 | 60 | 3" x 3" NPT | PowerPro 13 hp w/ electric start |
| 1533C-390EHSP | 330 | 1249 | 4.1 | 60 | 3" x 3" NPT | Honda GX390 w/ electric start |
