Pentair Hypro 1550 Series Centrifugal Pumps

Name: Pentair Hypro 1550 Series Centrifugal Pumps
Brand: Hypro

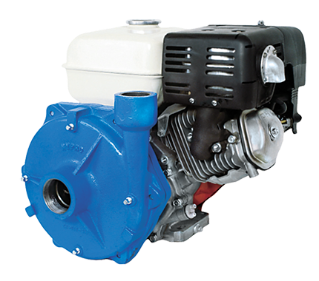

This close-coupled, gas engine driven, cast iron centrifugal pump achieves up to 150 gpm (568 lpm) and 140 psi (9.7 bar).

Explore purchase options available for this product.

Where to Buy

Resources

Downloads

Pump Type: Centrifugal

Drive Type: Close-coupled, gas engine-driven

Housing Material: Cast Iron

Seal Material: Viton®/ceramic

Max Fluid Temperature: 140°F/60°C

WEIGHT: 105 lbs./47.7 kg; SP and BSP: 125 lbs./56.8 kg

Impeller: Nylon

Item #	Max GPM	Max LPM	Max PSI	Max BAR	Engine Manufacturer & HP	Ports	Self-Priming
Item # 1550	Max GPM 150	Max LPM 568	Max PSI 140	Max BAR 9.7	Engine Manufacturer & HP Honda® 9 hp	Ports 2" x 1-1⁄2"	Self-Priming No
Item # 1550-SP	Max GPM 155	Max LPM 587	Max PSI 135	Max BAR 9.3	Engine Manufacturer & HP Honda® 9 hp	Ports 2" x 2"	Self-Priming Yes
Item # 1550-BSP	Max GPM 155	Max LPM 587	Max PSI 135	Max BAR 9.3	Engine Manufacturer & HP Honda® 9 hp	Ports 2" x 2"	Self-Priming Yes
