Pentair Hypro 9742P Series Transfer Pumps
Main Content Starts Here
Pentair Hypro 9742P Series Transfer Pumps

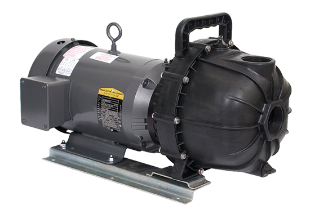

This polypropylene, electric-driven, 2" transfer pump achieves a max of 188 gpm (712 lpm) and a max of 54 psi (3.7 bar).
- Available with either 5 hp or 7.5 hp 50/60 hz TEFC Baldor electric motor
- Three phase 230/460 volt motors in both 5 hp & 7.5 hp
- Single phase 230 volt motor available in 5 hp
- Suction Lift: 25ft/7.62m
Specifications
Pump Type:
Transfer Pump
Ports:
2” x 2” NPT
Housing Material:
Polypropylene
Seal Material:
EPDM Mechanical
Impeller:
Nylon
Mounting Bolts:
5/16" or M8
| Item # | Max GPM | Max LPM | Max BAR | Engine Manufacturer & HP |
|---|---|---|---|---|
| 9742P-050SPT | 568 | 47 | 3.2 | Polypropylene |
| 9742P-050SPT3 | 150 | 568 | 47 | Polypropylene |
| 9742P-075SPT3 | 188 | 712 | 54 | Polypropylene |
| 9742P-050SPT | 568 | 47 | 3.2 | Polypropylene |
| 9742P-050SPT3 | 150 | 568 | 47 | Polypropylene |
| 9742P-075SPT3 | 188 | 712 | 54 | Polypropylene |
| Item # | Max GPM | Max LPM | Max BAR | Engine Manufacturer & HP |
|---|---|---|---|---|
| 9742P-050SPT | 568 | 47 | 3.2 | Polypropylene |
| 9742P-050SPT3 | 150 | 568 | 47 | Polypropylene |
| 9742P-075SPT3 | 188 | 712 | 54 | Polypropylene |
| 9742P-050SPT | 568 | 47 | 3.2 | Polypropylene |
| 9742P-050SPT3 | 150 | 568 | 47 | Polypropylene |
| 9742P-075SPT3 | 188 | 712 | 54 | Polypropylene |
