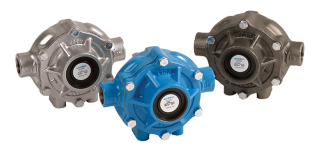

Pentair Hypro 7700 Series 7 Roller Pumps

The 7700 series, 7 roller, pump achieves up to 22.1 gpm (83.7lpm) and 200 psi (13.8 bar). The series includes models 7700C, 7700N, and 7700XL.

  • Shaft rotation: Counter clockwise when looking at the shaft end(Clockwise available)
  • Rollers: Super Rollers standard [Poly (T3) and Teflon® (T2)]
  • Recommended PTO torque arm kit 3430-0540
  • Rotor: Cast Iron, Ni-Resist or Silvercast
Explore purchase options available for this product.
Where to Buy

Specifications

Pump Type: Roller Pump
Ports: 3/4" NPT
Max Fluid Temperature: 140°F/60°C
Housing Material: Cast Iron (C), Ni-Resist (N) or Silvercast (XL)
Seal Material: Viton® standard
WEIGHT: 14 lbs./6.4 kg
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output (US)Shaft Output (Metric)Shaft
7700C22.183.720013.880015/16"23.8 mmSolid
7700N22.183.720013.880015/16"23.8 mmSolid
7700XL22.183.720013.880015/16"23.8 mmSolid
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output (US)Shaft Output (Metric)Shaft
7700C22.183.720013.880015/16"23.8 mmSolid
7700N22.183.720013.880015/16"23.8 mmSolid
7700XL22.183.720013.880015/16"23.8 mmSolid
