- Pentair Hypro 9400C-SP Series Centrifugal Pumps
Resources
Downloads

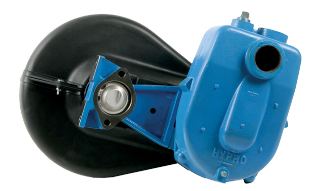

This belt-driven, cast iron, self-priming centrifugal pump achieves a max of 120 gpm (454 lpm) and a max of 99 psi (6.8 bar).
Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | PTO Output |
---|---|---|---|---|---|---|
9403C-540-SP | 120 | 454 | 99 | 6.8 | 600 | 1-3⁄8" female, 6 spline shaft |
9403C-540Q-SP | 120 | 454 | 99 | 6.8 | 600 | 1-3⁄8" 6 spline quick coupler |
9403C-540S-SP | 120 | 454 | 99 | 6.8 | 600 | 1” (25.4 mm) solid shaft |
9403C-1000-SP | 120 | 454 | 99 | 6.8 | 1000 | 1-3⁄8" female, 21-spline shaft |
9403C-1000L-SP | 120 | 454 | 99 | 6.8 | 1000 | 1-3⁄4" female, 20-spline shaft |
Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | PTO Output |
---|---|---|---|---|---|---|
9403C-540-SP | 120 | 454 | 99 | 6.8 | 600 | 1-3⁄8" female, 6 spline shaft |
9403C-540Q-SP | 120 | 454 | 99 | 6.8 | 600 | 1-3⁄8" 6 spline quick coupler |
9403C-540S-SP | 120 | 454 | 99 | 6.8 | 600 | 1” (25.4 mm) solid shaft |
9403C-1000-SP | 120 | 454 | 99 | 6.8 | 1000 | 1-3⁄8" female, 21-spline shaft |
9403C-1000L-SP | 120 | 454 | 99 | 6.8 | 1000 | 1-3⁄4" female, 20-spline shaft |
