Pentair Hypro 9000C-O-SP Series Gear Driven Cast Iron Self-Priming Centrifugal Pumps
Main Content Starts Here

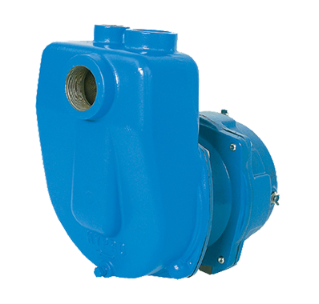

Pentair Hypro 9000C-O-SP Series Gear Driven Cast Iron Self-Priming Centrifugal Pumps
These gear-driven, cast iron, self-priming centrifugal pumps handle big, high-capacity farm spraying jobs with ease. They offer outstanding performance without the need for a flooded suction inlet. The pumps are ideal for sprayers that require pump mounting above the carrier tank. High pressure capabilities allow the pump to be used for both tank filling and spraying.
- Planetary oil-bath gear drive
- Pump shaft rotation: Counter clockwise when looking at the shaft end
- Life Guard seals are the industry standard on OEM equipment
Specifications
Housing Material:
Cast Iron
Pump Type:
Centrifugal
Drive Type:
Gear Driven
Seal Material:
Viton ® /ceramic standard; Life Guard silicon carbide (B) available
Ports:
1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet
Max Fluid Temperature:
140°F/60°C
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | PTO Output | Locking Collar & Mounting Clip | Impeller |
|---|---|---|---|---|---|---|---|
| 9006C-O-SP | 119 | 450 | 77 | 5.3 | 1-3⁄8" 6 spline (SAE) 540 rpm | x | Nylon |
| 9016C-O-SP | 119 | 450 | 77 | 5.3 | 1" (25.4 mm) solid shaft | Nylon | |
| 9028C-O-SP | 117 | 450 | 77 | 5.3 | 1-3⁄4" 20 spline (SAE) 1000 rpm | X | Nylon |
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | PTO Output | Locking Collar & Mounting Clip | Impeller |
|---|---|---|---|---|---|---|---|
| 9006C-O-SP | 119 | 450 | 77 | 5.3 | 1-3⁄8" 6 spline (SAE) 540 rpm | x | Nylon |
| 9016C-O-SP | 119 | 450 | 77 | 5.3 | 1" (25.4 mm) solid shaft | Nylon | |
| 9028C-O-SP | 117 | 450 | 77 | 5.3 | 1-3⁄4" 20 spline (SAE) 1000 rpm | X | Nylon |
