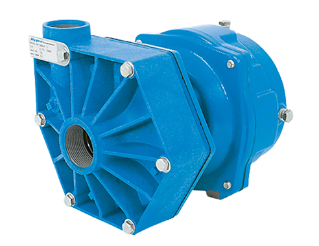

Pentair Hypro 9000P-O Series Gear Driven Polypropylene Centrifugal Pumps
OIPM
Repair Kit
Repair Kit
3D Step File
Specifications
Pump Type:
Centrifugal
Drive Type:
Gear Driven
Ports:
1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet
Housing Material:
Polypropylene
Seal Material:
Viton ® /ceramic standard; Life Guard silicon carbide (B) available
Max Fluid Temperature:
140°F/60°C
Impeller:
Polypropylene
WEIGHT:37 lbs./16.8 kg
Item # | Max GPM | Max LPM | Max PSI | Max BAR | PTO Output | Locking Collar Kit |
---|
9006P-O | 97 | 367 | 83 | 5.7 | 1 3⁄8" 6 spline (SAE) 540 rpm female | x |
9008P-O | 94 | 355 | 67 | 4.6 | 1 3⁄8" 21 spline (SAE) 1000 rpm female | x |
9018P-O | 94 | 355 | 67 | 4.6 | 1" (25.4 mm) solid shaft | |
WEIGHT:37 lbs./16.8 kg
Item # | Max GPM | Max LPM | Max PSI | Max BAR | PTO Output | Locking Collar Kit |
---|
9006P-O | 97 | 367 | 83 | 5.7 | 1 3⁄8" 6 spline (SAE) 540 rpm female | x |
9008P-O | 94 | 355 | 67 | 4.6 | 1 3⁄8" 21 spline (SAE) 1000 rpm female | x |
9018P-O | 94 | 355 | 67 | 4.6 | 1" (25.4 mm) solid shaft | |
WEIGHT:37 lbs./16.8 kg
Item # | Max GPM | Max LPM | Max PSI | Max BAR | PTO Output | Locking Collar Kit |
---|
9006P-O | 97 | 367 | 83 | 5.7 | 1 3⁄8" 6 spline (SAE) 540 rpm female | x |
9008P-O | 94 | 355 | 67 | 4.6 | 1 3⁄8" 21 spline (SAE) 1000 rpm female | x |
9018P-O | 94 | 355 | 67 | 4.6 | 1" (25.4 mm) solid shaft | |
