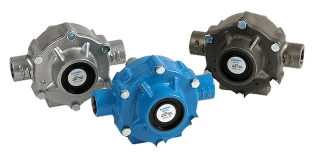

Pentair Hypro 7560-GM30 & 7560-GM15 8-Roller Series Pumps
Pentair Hypro 7560-GM30 & 7560-GM15 8-Roller Series Pumps
The 7560 series, 8 roller, pump powered by a hydraulic motor achieves up to 20.8 gpm (78.7 lpm) and 300 psi (20.7 bar). The series includes models 7560C-GM30, 7560N-GM30 and 7560XL-GM30.
- Shaft rotation: Counter clockwise when looking at the shaft end (clockwise available)
- Rollers: Super Rollers standard
- Rotor: Cast Iron, Ni-Resist or Silvercast
Specifications
Pump Type:
Roller Pump
Housing Material:
Cast Iron (C), Ni-Resist (N) or Silvercast (XL)
Seal Material:
Viton® standard
Ports:
3/4" NPT
Max Fluid Temperature:
140°F/60°C
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Max Hydraulic GPM | Max Hydraulic LPM | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| 7560C-GM30 | 20.8 | 78.7 | 300 | 20.7 | 1000 | 12 | 45 | 13 lbs./5.89 kg |
| 7560N-GM30 | 20.8 | 78.7 | 300 | 20.7 | 1000 | 12 | 45 | 13 lbs./5.89 kg |
| 7560XL-GM30 | 20.8 | 78.7 | 300 | 20.7 | 1000 | 12 | 45 | 13 lbs./5.89 kg |
| 7560C-GM15 | 20.1 | 76.1 | 300 | 20.7 | 1000 | 6 | 23 | 13 lbs./5.89 kg |
| 7560N-GM15 | 20.1 | 76.1 | 300 | 20.7 | 1000 | 6 | 23 | 13 lbs./5.89 kg |
| 7560XL-GM15 | 20.1 | 76.1 | 300 | 20.7 | 1000 | 6 | 23 | 13 lbs./5.89 kg |
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Max Hydraulic GPM | Max Hydraulic LPM | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| 7560C-GM30 | 20.8 | 78.7 | 300 | 20.7 | 1000 | 12 | 45 | 13 lbs./5.89 kg |
| 7560N-GM30 | 20.8 | 78.7 | 300 | 20.7 | 1000 | 12 | 45 | 13 lbs./5.89 kg |
| 7560XL-GM30 | 20.8 | 78.7 | 300 | 20.7 | 1000 | 12 | 45 | 13 lbs./5.89 kg |
| 7560C-GM15 | 20.1 | 76.1 | 300 | 20.7 | 1000 | 6 | 23 | 13 lbs./5.89 kg |
| 7560N-GM15 | 20.1 | 76.1 | 300 | 20.7 | 1000 | 6 | 23 | 13 lbs./5.89 kg |
| 7560XL-GM15 | 20.1 | 76.1 | 300 | 20.7 | 1000 | 6 | 23 | 13 lbs./5.89 kg |
