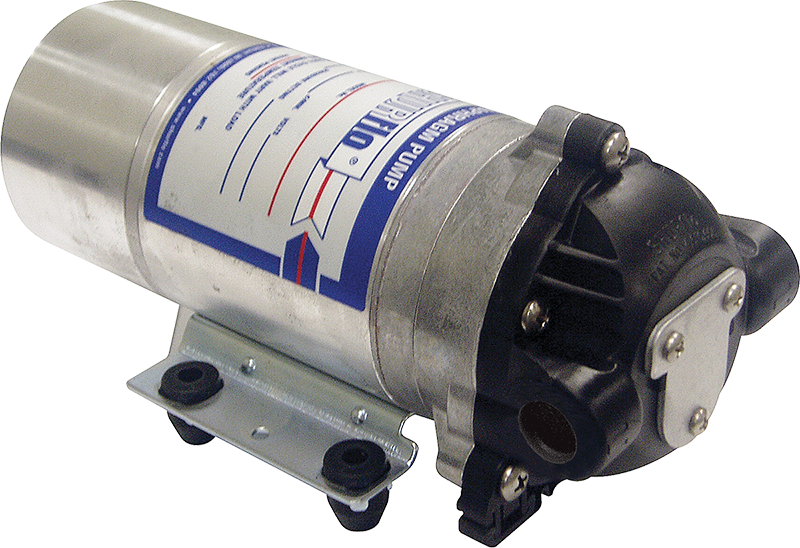

Shurflo Carbonator Pumps
Main Content Starts Here
SKU#: 8095-902-290
8095, 1.5GPM, 230VAC
The high-flow Shurflo family of carbonator pumps is ideal for water delivery applications with fluctuating water flow and low-pressure applications. The pumps combine CO2 gas and water from your dispenser to provide consistent water pressure and dependable operation to deliver quality beverages. Designed for easy maintenance, these pumps can be easily wall-mounted in any position.
- Service flow rate: 0.7 to 1.5 gpm
- Equipped with a 3-chamber diaphragm pump for small to medium carbonators
- Self-priming and can run dry without damage
- Includes ground wires and base plates
Models / Specs
| Item # | Image | Model Number | Connection Size and Type | Flow Rate (GPM) | Max Pressure (PSI) | Voltage (VAC/VDC) | amps_fg |
|---|---|---|---|---|---|---|---|
| 8005-932-260 |  |
8005, 1.5GPM, 115VAC | 3/8" FNPT | 1.5 | 100 | 115 VAC | 1 |
| 8090-791-260 |  |
8090, 0.7GPM, 24VAC | 3/8" FNPT | 0.7 | 100 | 24 VAC | 10 |
| 8095-902-260 |  |
8095, 1.5GPM, 230VAC | 3/8" FNPT | 1.5 | 100 | 230 VAC | 0.8 |
| 8095-902-290 |  |
8095, 1.5GPM, 230VAC | 3/8" FNPT | 1.5 | 100 | 230 VAC | 0.8 |
| 8095-951-269 |  |
8095, 1.0GPM, 230VAC (EU) | 3/8" FNPT | 1 | 100 | 230 VAC | 0.8 |
| 8095-951-299-BW |  |
8095, 1.0GPM, 230VAC | 3/8" FNPT | 1 | 100 | 230 VAC | 0.8 |
