IntelliBrite® 5G Color LED Pool Lights

One of the Most Energy-Efficient Color Underwater Pool Lighting Solutions Available

LED technology is the wave of the future in energy efficiency, lifetime value, quality of light and the ability to control it. With its custom reflector and innovative lens design, the IntelliBrite 5G light is one of the most efficient underwater lights available.*

  • Choose from 5 predetermined fixed colors (blue, green, magenta, white and red) or 7 popular preprogrammed "color shows"
  • Consumes less energy than halogen or incandescent lights
  • Pool lens can be rotated to 180° to provide wide beam pattern (standard) or narrow beam pattern
  • Designed to work with IntelliTouch® and EasyTouch® Control Systems
  • Available in 120-V and 12-V versions

*Appearance of color and white LED light may vary between various models of lights. Appearance and perception of pool lighting may vary depending on a number of factors including, but not limited to, the particular model of light, the location/depth/angle of the light’s installation, pool finish/material, pool depth/shape/geometry, ambient light sources, subjective factors and more. For best results when using multiple lights, use all the same model and do not mix multiple models of lights within a single installation.

Eco Select Logo

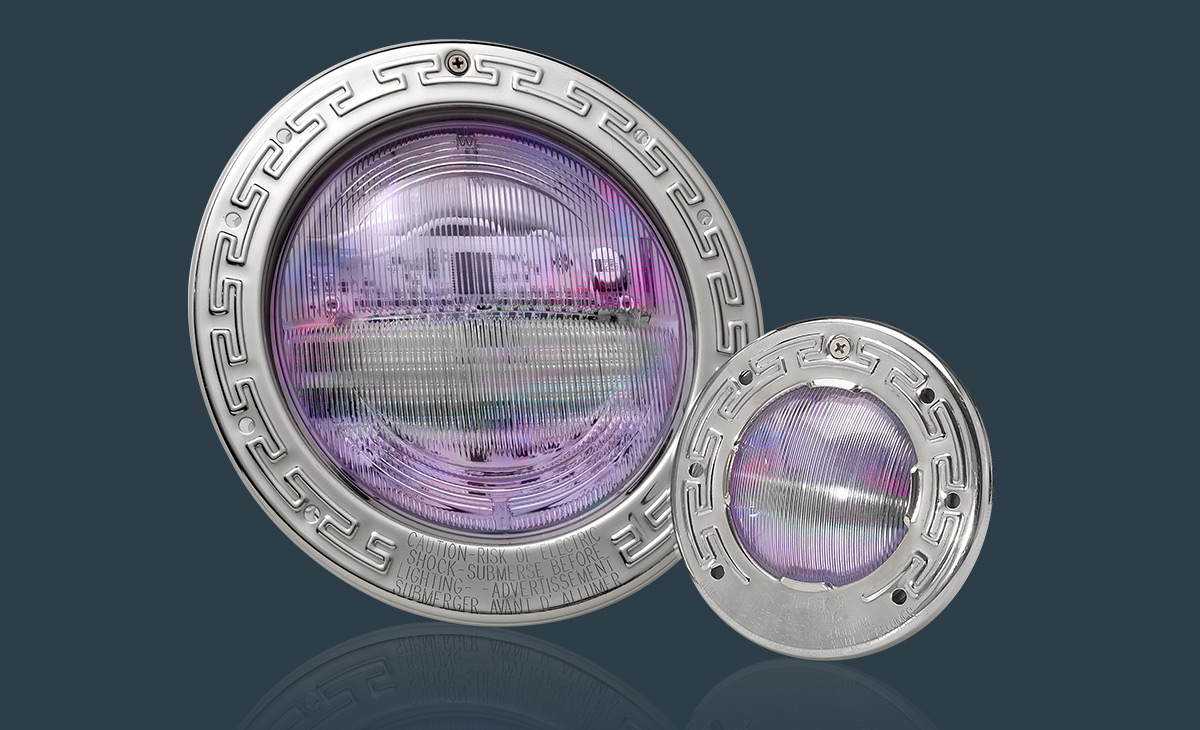

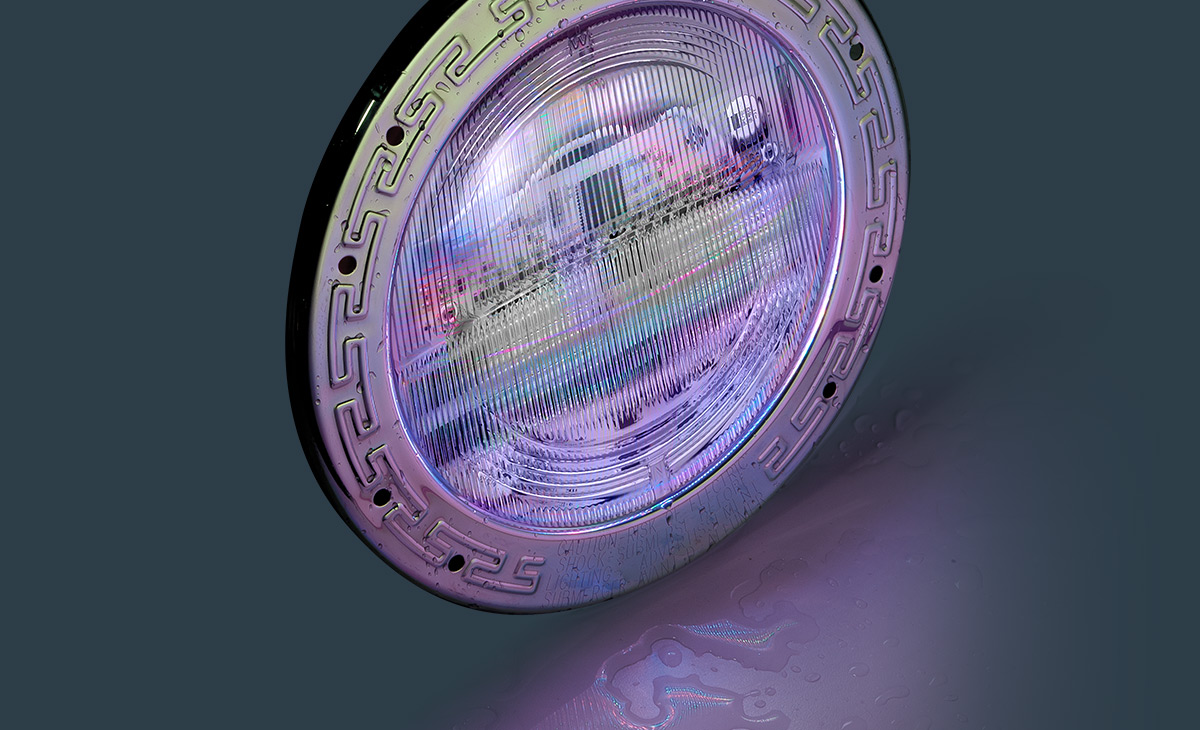

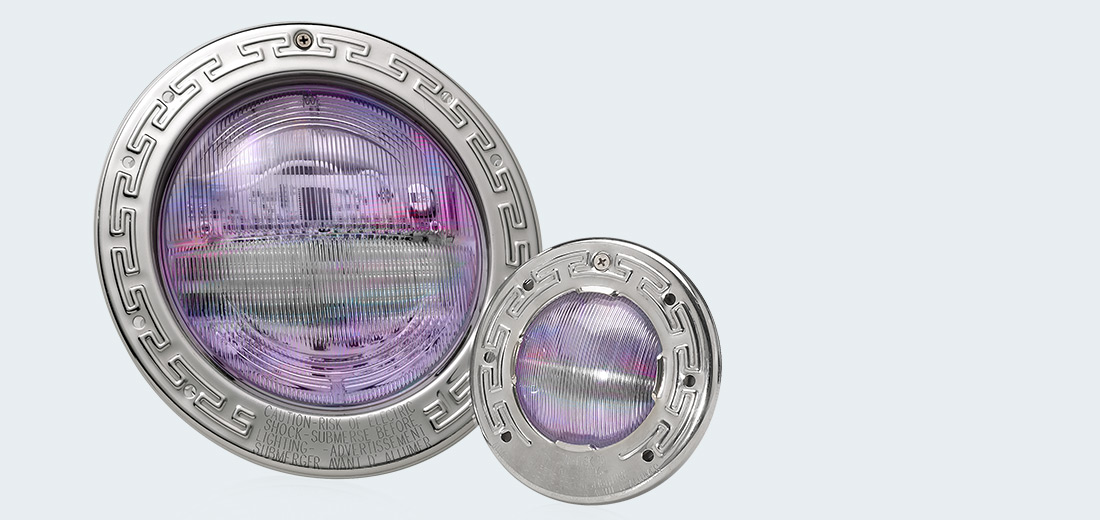

Product Photos

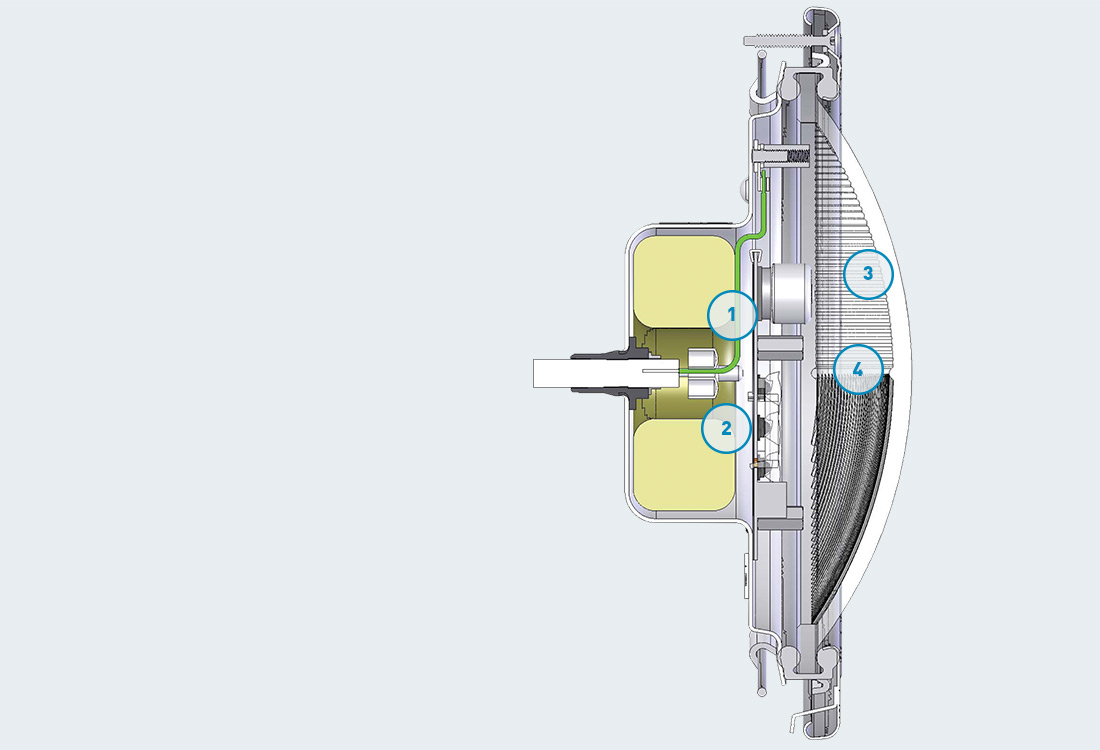

Product Components

  1. Custom reflector to eliminate hot spots
  2. LED lights for exceptional light intensity
  3. Superior lens geometry to improve color effects
  4. Light beam distribution creates more uniform illumination



Innovative Energy Efficiency

LED technology is the wave of the future in energy efficiency, lifetime value, quality of light and the ability to control it. With its custom reflector and innovative lens design, the IntelliBrite 5G light is one of the most efficient underwater LED lights available.

Color Options

  1. Green
  2. Blue
  3. Magenta
  4. White
  5. Red
colorsync-controller-pool-lights-intellibrite

Optional Controller Available

The Color Sync™ Controller for Pentair Color LED Pool Lights offers pool and spa owners without an automation system fast, easy switching to their favorite color modes. This accessory was designed exclusively for IntelliBrite color-changing pool and spa lights.

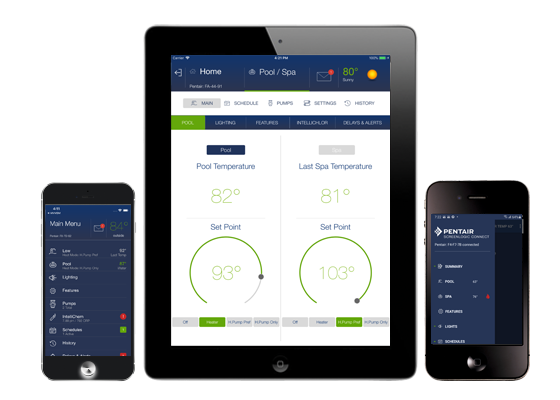

Easy Automation

IntelliBrite 5G lights work with IntelliTouch® or EasyTouch® Control Systems, the ultimate choices in pool, spa and poolscape equipment automation. In effect, you transfer programming and control of IntelliBrite lights to a central system that manages all your other backyard and pool features.

true

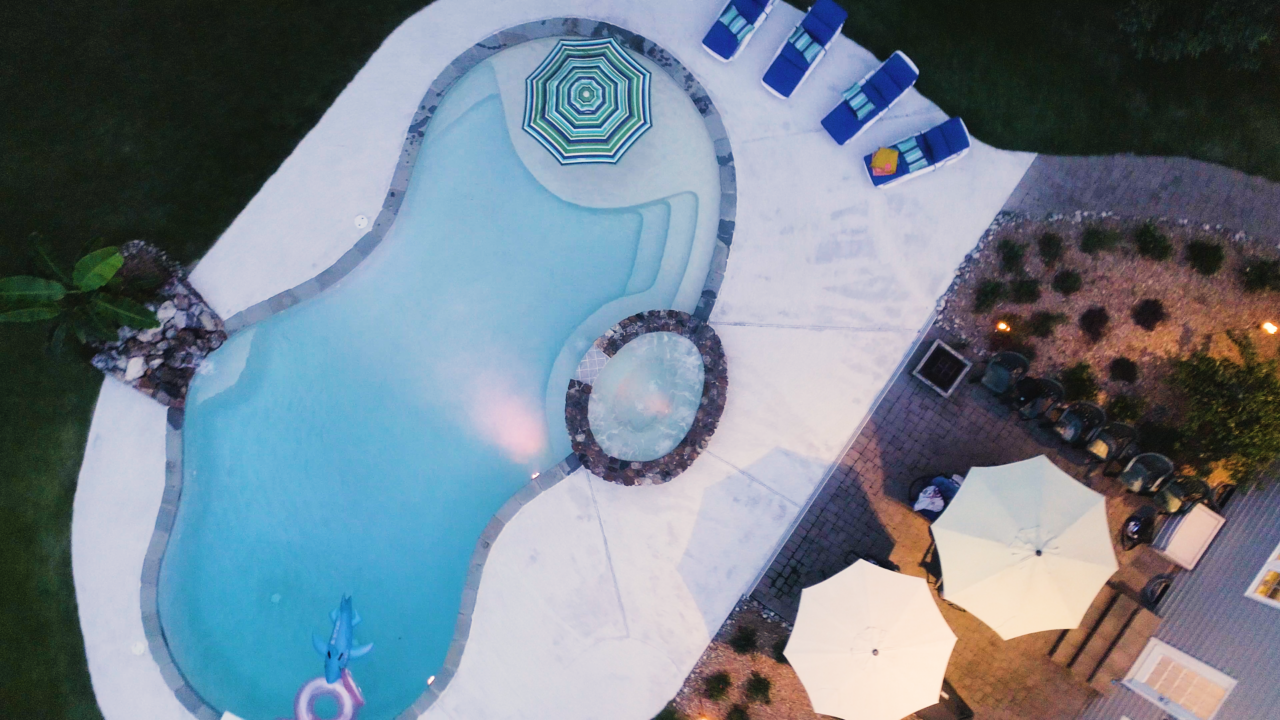

From the living room to the backyard

Pentair brings light technology outside, providing a brighter backyard oasis with pool lighting.

Specifications

Item #Carton Qty.PowerVoltageCABLE LENGTHColor
Item #
601000
Carton Qty.
1
Power
26 W
Voltage
120 VAC
CABLE LENGTH
30 ft
Color
Multi-Color LED
Item #
601001
Carton Qty.
1
Power
26 W
Voltage
120 VAC
CABLE LENGTH
50 ft
Color
Multi-Color LED
Item #
601002
Carton Qty.
1
Power
26 W
Voltage
120 VAC
CABLE LENGTH
100 ft
Color
Multi-Color LED
Item #
601003
Carton Qty.
1
Power
26 W
Voltage
120 VAC
CABLE LENGTH
150 ft
Color
Multi-Color LED
Item #
601004
Carton Qty.
1
Power
26 W
Voltage
120 VAC
CABLE LENGTH
250 ft
Color
Multi-Color LED
Item #
601010
Carton Qty.
1
Power
26 W
Voltage
12 VAC
CABLE LENGTH
30 ft
Color
Multi-Color LED
Item #
601011
Carton Qty.
1
Power
26 W
Voltage
12 VAC
CABLE LENGTH
50 ft
Color
Multi-Color LED
Item #
601012
Carton Qty.
1
Power
26 W
Voltage
12 VAC
CABLE LENGTH
100 ft
Color
Multi-Color LED
Item #
601013
Carton Qty.
1
Power
26 W
Voltage
12 VAC
CABLE LENGTH
150 ft
Color
Multi-Color LED
Item #
640120
Carton Qty.
1
Power
18 W
Voltage
120 VAC
CABLE LENGTH
30 ft
Color
Multi-Color LED

Products beginning with EC- are exclusive to e-commerce sales. For warranty information please visit www.pentair.com/warranty.

Underwater shot of the swimming pool with bubbles

All Pentair UL Listed underwater lights are certified for use in freshwater with up to 6,000 ppm salinity.

Note: All 120-V pool and spa lights must be connected to a branch circuit protected by a ground fault circuit interrupter (GFCI).

Notice: Underwriters Laboratories has listed Pentair Water Pool and Spa Inc. lights for use with Pentair Water Pool and Spa, Pentair Pool Products, American Products, Purex or PacFab niches ONLY. To ensure proper grounding/bonding connections, install only Pentair Water Pool and Spa Inc. lights in Pentair Water Pool and Spa, Pentair Pool Products, American Products, Purex or PacFab niches.
