Pentair Hypro Ultra Lo-Drift Max (ULDM) Nozzles

When spraying Plant Protection Products, where your droplets land is key. Droplets can drift away and be gone with the wind. These droplets could end up in places they’re not supposed to be in. Each chemical droplet needs to be accounted for and well utilized. Help minimize the impact on the surrounding environment. You need a dependable nozzle solution that will help decrease your application drift and your worries considerably.

  • Reduce drift by up to 95% with Hypro Ultra Lo-Drift Max Nozzles.
  • Use at a wide range of operating pressures and maintain a consistent droplet size
  • Reduce installation torque requirements with FastCap version featuring SnapLock cap
  • Avoid breakage when hitting crops or the ground with its compact and robust footprint
  • Leverage for post-emergence herbicide applications where drift reduction is critical
Find out where to purchase online or in a retail location near you.
VIEW ITEMS

Product Components

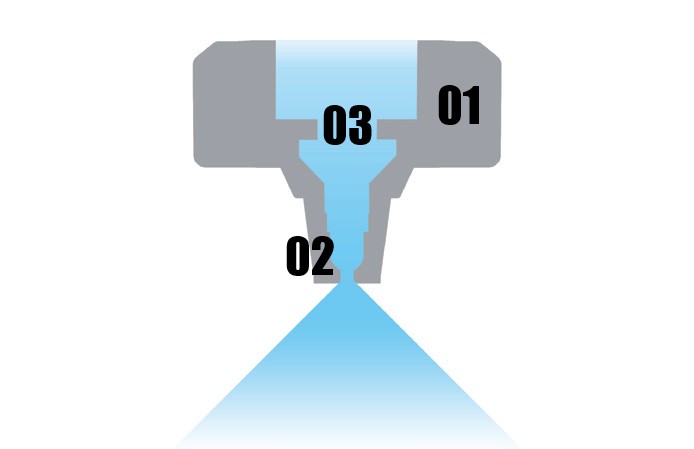

This shows the internal components of the ULDM nozzle.
  1. SnapLock cap version available for easy installation and removal
  2. Duckbill exit orifice for wide angle and fewer fines
  3. Pre-orifice and diffuser designed to create larger droplets and minimize fines across a wide operating range

LEVERAGE THE BENEFITS OF HYPRO ULTRA LO-DRIFT MAX NOZZLES

Learn how these agricultural nozzles help deliver a 95% reduction in driftable fines.

LEVERAGE THE BENEFITS OF HYPRO ULTRA LO-DRIFT MAX NOZZLES

Learn how these agricultural nozzles help deliver a 95% reduction in driftable fines.

Specifications

Item #TYPEDESCRIPTION
ULDM130-02Nozzle TipHypro Ultra Lo-Drift Max size 02 tip only
ULDM130-025Nozzle TipHypro Ultra Lo-Drift Max size 025 tip only
ULDM130-03Nozzle TipHypro Ultra Lo-Drift Max size 03 tip only
ULDM130-04Nozzle TipHypro Ultra Lo-Drift Max size 04 tip only
ULDM130-05Nozzle TipHypro Ultra Lo-Drift Max size 05 tip only
ULDM130-06Nozzle TipHypro Ultra Lo-Drift Max size 06 tip only
ULDM130-08Nozzle TipHypro Ultra Lo-Drift Max size 08 tip only
FC-ULDM130-02Nozzle Fast Cap + TipHypro Ultra Lo-Drift Max size 02 in a FastCap
FC-ULDM130-025Nozzle Fast Cap + TipHypro Ultra Lo-Drift Max size 025 in a FastCap
FC-ULDM130-03Nozzle Fast Cap + TipHypro Ultra Lo-Drift Max size 03 in a FastCap
Item #TYPEDESCRIPTION
ULDM130-02Nozzle TipHypro Ultra Lo-Drift Max size 02 tip only
ULDM130-025Nozzle TipHypro Ultra Lo-Drift Max size 025 tip only
ULDM130-03Nozzle TipHypro Ultra Lo-Drift Max size 03 tip only
ULDM130-04Nozzle TipHypro Ultra Lo-Drift Max size 04 tip only
ULDM130-05Nozzle TipHypro Ultra Lo-Drift Max size 05 tip only
ULDM130-06Nozzle TipHypro Ultra Lo-Drift Max size 06 tip only
ULDM130-08Nozzle TipHypro Ultra Lo-Drift Max size 08 tip only
FC-ULDM130-02Nozzle Fast Cap + TipHypro Ultra Lo-Drift Max size 02 in a FastCap
FC-ULDM130-025Nozzle Fast Cap + TipHypro Ultra Lo-Drift Max size 025 in a FastCap
FC-ULDM130-03Nozzle Fast Cap + TipHypro Ultra Lo-Drift Max size 03 in a FastCap
FC-ULDM130-04Nozzle Fast Cap + TipHypro Ultra Lo-Drift Max size 04 in a FastCap
FC-ULDM130-05Nozzle Fast Cap + TipHypro Ultra Lo-Drift Max size 05 in a FastCap
FC-ULDM130-06Nozzle Fast Cap + TipHypro Ultra Lo-Drift Max size 06 in a FastCap
FC-ULDM130-08Nozzle Fast Cap + TipHypro Ultra Lo-Drift Max size 08 in a FastCap
