Pentair Hypro Dicamba Nozzles

Main Content Starts Here

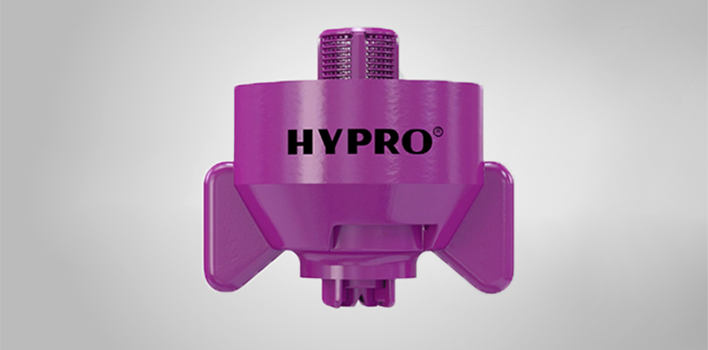

ULD Nozzle Advantages

  • Ideal for drift reduction and efficacy when using Dicamba & 2, 4-D based chemicals
  • Precise droplet control to minimize fine drift-able droplets, without sacrificing coverage
  • Wide spray angle (120) enables boom to be lowered to  further decrease drift and deliver superior spray uniformity
  • A 60 degree thick pattern provides a large area of impact improving spray coverage
  • Convenient FastCap version includes nozzle, cap and gasket all in one
  • Small, compact design is less prone to breakage than competitive nozzles
Ultra Lo-Drift Video

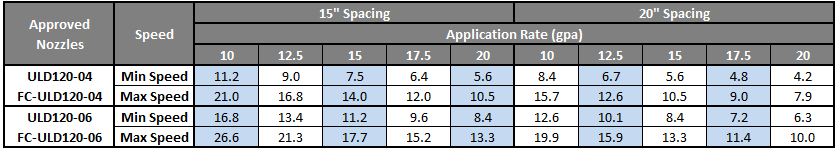

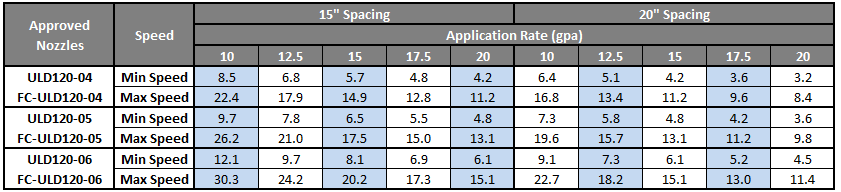

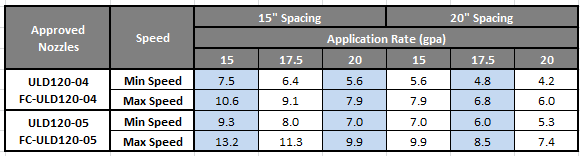

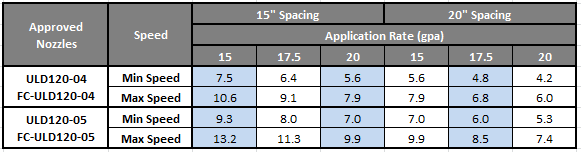

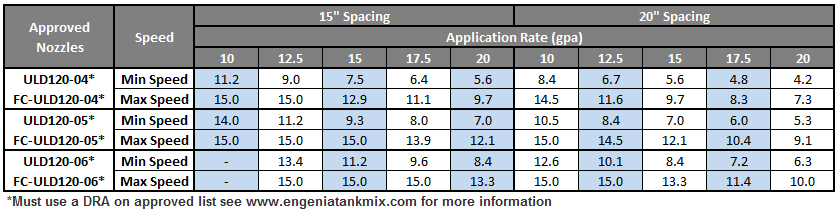

Quick Select Tables

Avoid cross chemical contamination

Hypro Express End Cap with Flush Valve

The Hypro Express End Cap with Flush Valve provides 3 key benefits to your sprayer: improved sprayer cleanout, reduced shut-off lag time, and reduced chemical waste.

Express Boom Assembly

Express Boom Assembly is the most hygienic boom solution.  It utilizes stainless steel piping and Express End Caps to eliminate contamination and allow for thorough clean-out.



Express End Cap

Utilize the Express End Cap to maintain boom hygiene while spraying by eliminating dead ends.  Also use the removable plug for a through boom clean-out.



chemical brand

MODEL NUMBER

Buying Options

NOZZLE SIZE (COLOR)

Engenia® Herbicide

ULD120-04 or FC-ULD120-04 (20-60 PSI)*

ULD120-05 or FC-ULD120-05 (20-60 PSI)*

ULD120-06 or FC-ULD120-06 (20-50 PSI)*

04 (Red)

05 (Brown)

06 (Gray)

Enlist Duo® Herbicide with Colex-D® Technology

ULD120-04 or FC-ULD120-04

ULD120-06 or FC-ULD120-06

04 (Red)

06 (Gray)

Enlist One™ Herbicide with Colex-D® Technology

ULD120-04 or FC-ULD120-04 (15-80 PSI)

ULD120-05 or FC-ULD120-05 (15-70 PSI)

ULD120-06 or FC-ULD120-06 (15-65 PSI)

04 (Red)

05 (Brown)

06 (Gray)

Xtendimax® with Vaporgrip® Technology

ULD120-04 or FC-ULD120-04

ULD120-05 or FC-ULD120-05

04 (Red)

05 (Brown)

Fexapan® plus Vaporgrip® Technology

ULD120-04 or FC-ULD120-04

ULD120-05 or FC-ULD120-05

04 (Red)

05 (Brown)

Ask the Expert

Questions for any specific spraying applications issues?

Sign Up For Our Newsletter

Please fill out the information below to sign up for the Hypro Newsletter

Opt-In

Pentair Hypro will occasionally send you information about our products and services. You can unsubscribe at any time. Your information will be handled in accordance with our Privacy Notice.

Always follow and read label directions.

Engenia is a registered trademark of BASF Corporation. Enlist Duo and Colex-D are registered trademarks of Dow AgroSciences LLC. Fexapan is a registered trademark of du Pont de Nemours and Company. XtendiMax and VaporGrip are registered trademarks of Monsanto Technology LLC.

Enlist One is a trademark of Dow AgroSciences LLC.

For an up to date list of approved nozzles with Engenia herbicide visit www.EngeniaTankMix.com.

*Must use a DRA on approved list
