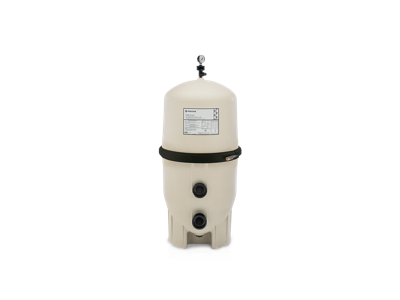

FNS® Plus Filter

More Surface Area for Better Pool Filtration and Less Maintenance

FNS Plus Pool Filters are designed with curved grids to maximize filtration area. More filter area means better performance and longer periods between cleanings. The internal design has been refined to minimize flow restrictions and, therefore, requires minimal pumping power to achieve a needed flow rate. This vertical-grid, D.E. filter is made of fiberglass-reinforced polypropylene for superior strength and reliability.

Superior strength
Service-Ease™ Grid Pack
Integrated Continuous High Flow™ Internal Air Relief*
Top-to-bottom backwash

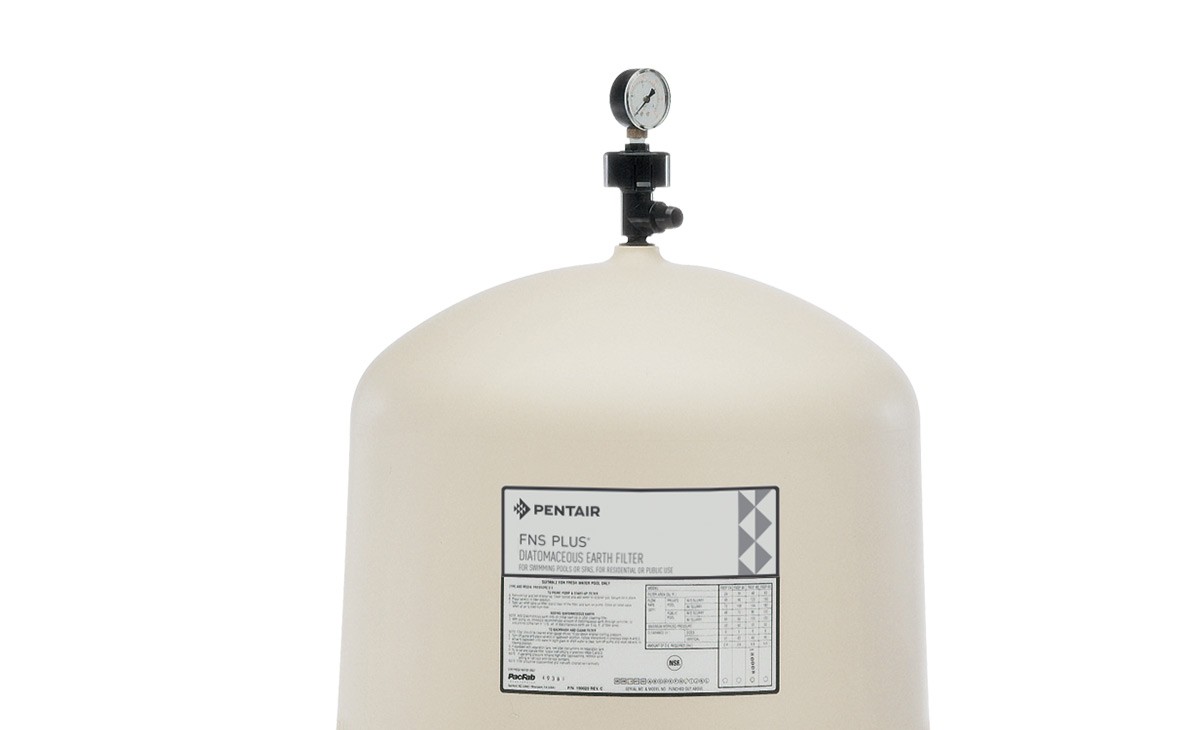

High Flow Manual Air Relief Valve

Find out where to purchase online or in a retail location near you.

VIEW ITEMS

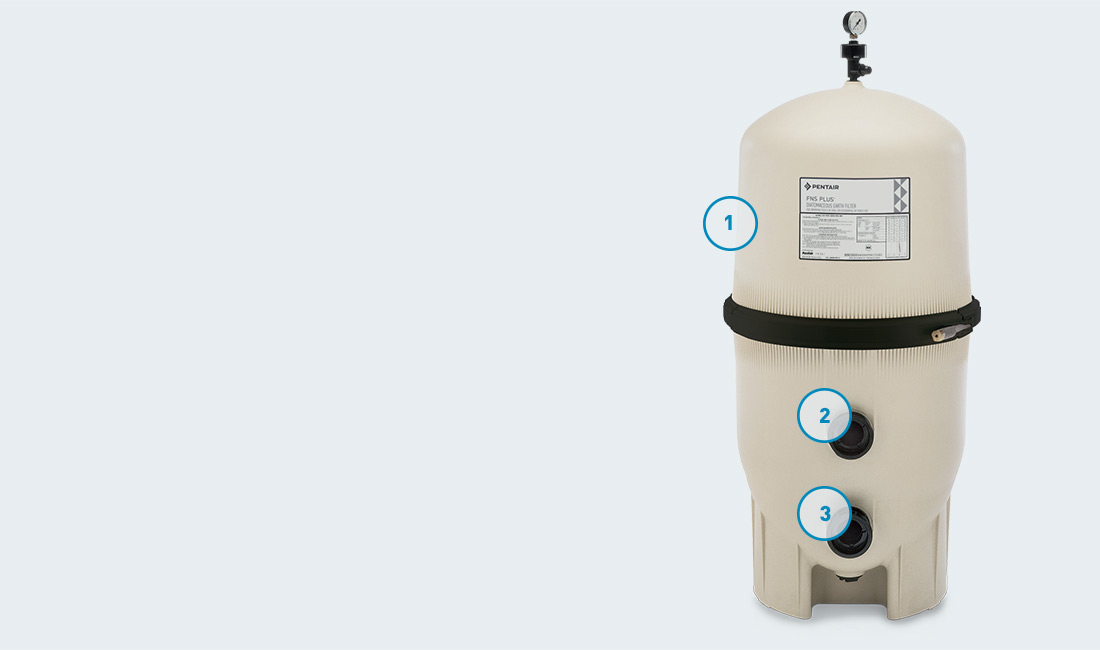

Product Components

Corrosion-resistant fiberglass tank for long life

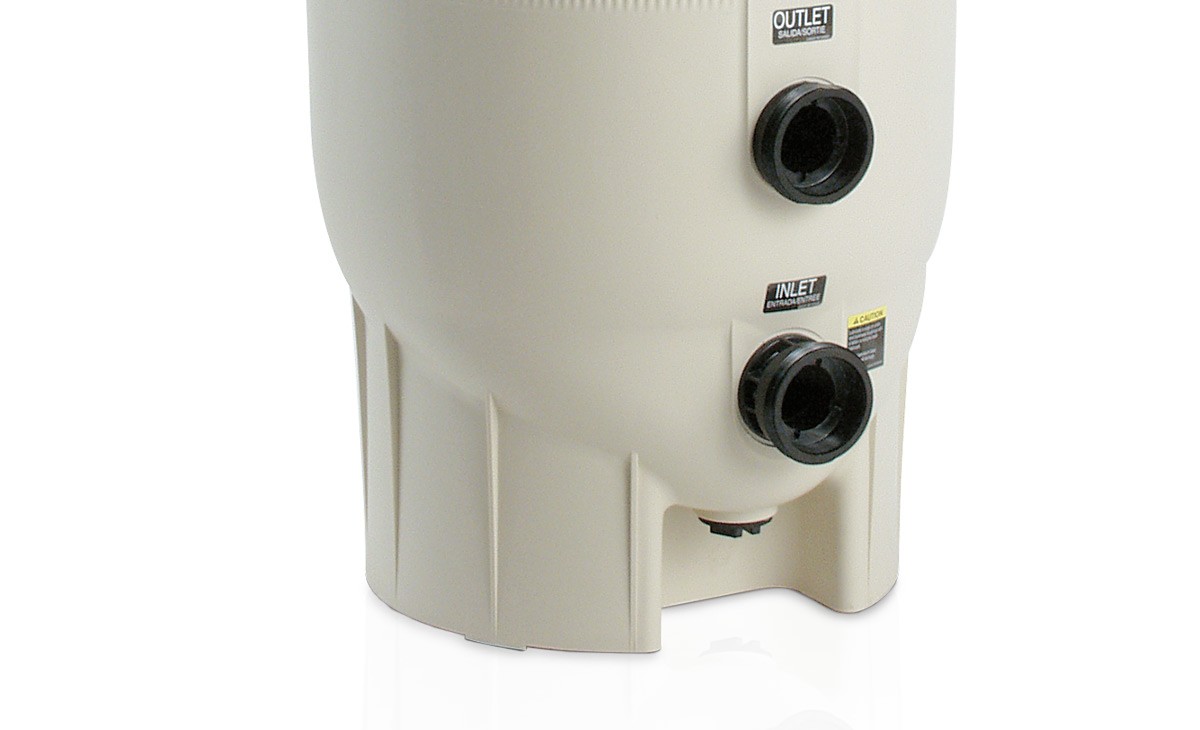

2" plumbing connections for maximum flow
Conveniently located 1" drain for easier and more efficient cleanout and 100% draining

Delivers Crystal Clarity

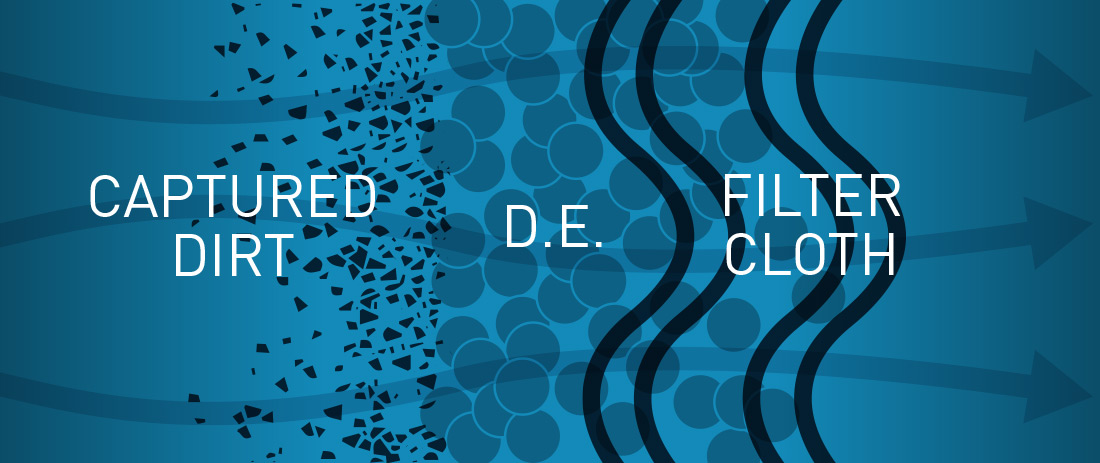

D.E. filters remove the tiniest of contaminants—particles as small as 5 microns (an average grain of sand is 1,000 microns). Just like a sponge, water can pass through, but microscopic impurities like dirt, algae and some forms of bacteria can’t.

Maximized Filtration, Minimized Costs

FNS Plus filters have been designed with curved grids to maximize filtration area. More filter area means better performance and longer periods between cleanings. Our internal design has been refined to minimize flow restrictions and, therefore, requires minimal pumping power to achieve a needed flow rate. That means lower utility costs.

Time-Tested Design

FNS Plus filters were also designed for easy maintenance, convenience and long-term reliability. So, you can count on them to keep your pool’s water clean and crystal clear for years to come.

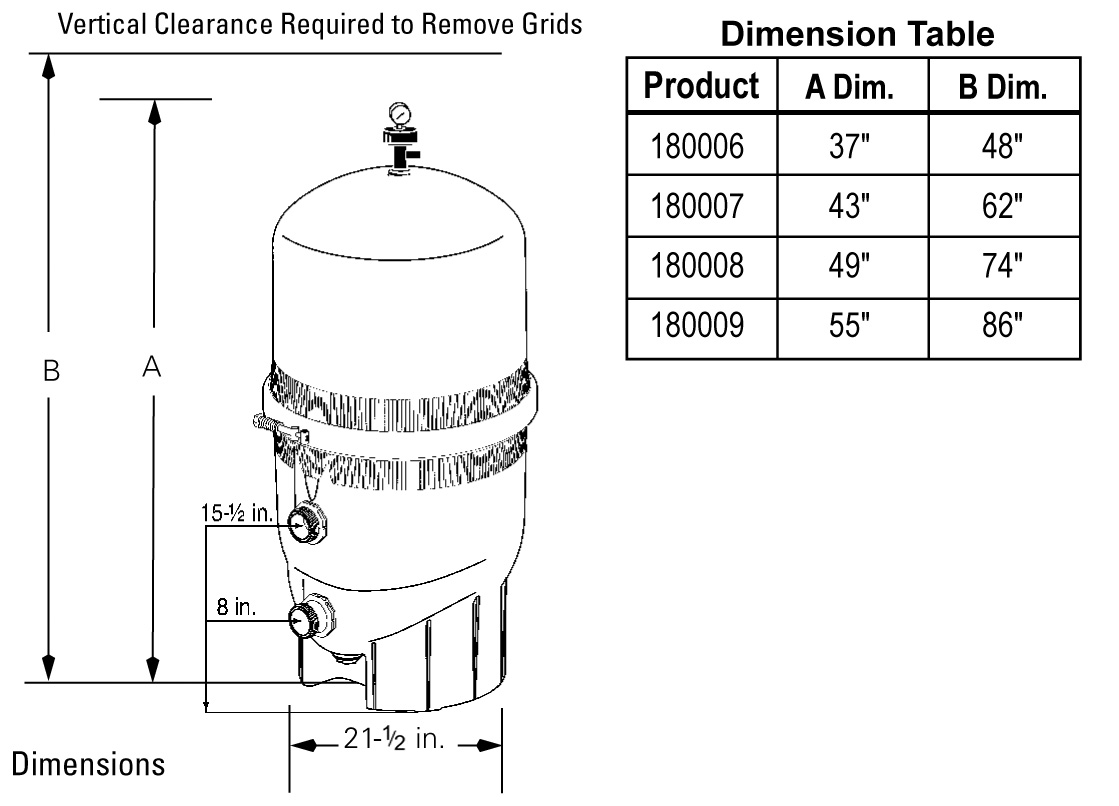

Dimensions

Homeowner and Pro Resources

Brochures

Manuals

Replacement Parts

Certifications

FNS Plus Fiberglass DE Filter English

FNS Plus Owners Manual English

FNS Plus Filters Vertical Grid Filters

Certified to NSF/ANSI Standard 50

Support

Specifications

Item #	Model	Effective Filtration Area (sq ft)	Flow Rate (GPM)	8 Hour	10 Hour	12 Hour	D.E. Required (Lbs.)	Carton Qty.	Carton Wt. (Lbs.)
180006	FNSP24	24	48	23,040	28,800	34,560	2.4	1	60
180007	FNSP36	36	72	34,560	43,200	51,840	3.6	1	70
180008	FNSP48	48	96	46,080	57,600	69,120	4.8	1	80
180009	FNSP60	60	120	57,600	72,000	86,400	6	1	90
EC-180007	FNSP36, Ecommerce	36	72	34,560	43,200	51,840	3.6	1	70
EC-180008	FNSP48, Ecommerce	48	96	46,080	57,600	69,120	4.8	1	80
EC-180009	FNSP60, Ecommerce	60	120	57,600	72,000	86,400	6	1	90

Item #	Model	Effective Filtration Area (sq ft)	Flow Rate (GPM)	8 Hour	10 Hour	12 Hour	D.E. Required (Lbs.)	Carton Qty.	Carton Wt. (Lbs.)
180006	FNSP24	24	48	23,040	28,800	34,560	2.4	1	60
180007	FNSP36	36	72	34,560	43,200	51,840	3.6	1	70
180008	FNSP48	48	96	46,080	57,600	69,120	4.8	1	80
180009	FNSP60	60	120	57,600	72,000	86,400	6	1	90
EC-180007	FNSP36, Ecommerce	36	72	34,560	43,200	51,840	3.6	1	70
EC-180008	FNSP48, Ecommerce	48	96	46,080	57,600	69,120	4.8	1	80
EC-180009	FNSP60, Ecommerce	60	120	57,600	72,000	86,400	6	1	90

Show less

Item #	Model	Effective Filtration Area (sq ft)	Flow Rate (GPM)	8 Hour	10 Hour	12 Hour	D.E. Required (Lbs.)	Carton Qty.	Carton Wt. (Lbs.)
180006	FNSP24	24	48	23,040	28,800	34,560	2.4	1	60
180007	FNSP36	36	72	34,560	43,200	51,840	3.6	1	70
180008	FNSP48	48	96	46,080	57,600	69,120	4.8	1	80
180009	FNSP60	60	120	57,600	72,000	86,400	6	1	90
EC-180007	FNSP36, Ecommerce	36	72	34,560	43,200	51,840	3.6	1	70
EC-180008	FNSP48, Ecommerce	48	96	46,080	57,600	69,120	4.8	1	80
EC-180009	FNSP60, Ecommerce	60	120	57,600	72,000	86,400	6	1	90

Show less

Products beginning with EC- are exclusive to e-commerce sales. For warranty information please visit www.pentair.com/warranty.

180007, 180008, 180009: Flow rate is based on 2 GPM per sq. ft. of filter area. Actual system flow will depend on plumbing size and other system components. Valves must be purchased separately.

*Integrated Continuous High Flow Internal Air Relief is operational only when there is unobstructed flow in the circulating system.

Note: Operating limits—Maximum continual operating pressure of 50 psi. Pool/spa (bather) applications, maximum operating water temperature (internal filter) 104° F (40° C).
