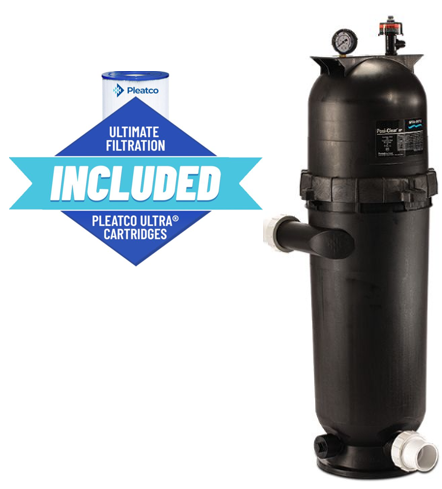

Posi-Clear™ RP Cartridge Pool Filter

Picture-perfect Pool Water With 50% More Energy Efficiency

The Posi-Clear RP Cartridge Pool Filter features a fiberglass-reinforced, chemical-resistant, polypropylene tank with no-tool servicing for easier cleaning. It also features a side-entry port, which provides nearly 50% more efficiency than any other single-cartridge pool filter available. Inside, it has increased cartridge surface consistency to block and trap particles as small as 20 microns. The result is picture-perfect pool water and lower energy use.

  • Innovative lock ring provides a leak-proof seal
  • Easy and safe cartridge removal and maintenance
  • 1.5-in. drain for quick maintenance and winterization
  • Single-piece, fiberglass-reinforced polypropylene tank for strength and corrosion resistance
  • Integrated Continuous High-flow Manual Air Relief Valve*
  • Available in 100-, 150-, 200-sq.-ft. sizes
Find out where to purchase online or in a retail location near you.

Specifications

Item #ModelEffective Filtration Area (Sq Ft)Flow Rate (GPM Res)Turnover Capacity (Gallons) (Flow Rate x 60 x Hours)Carton Oty.Carton Wt. (Lbs.)Purchase Options
160351PXCRP1001001008 hour - 48,000; 10 hour - 60,000; 12 hour - 72,000133Available Through Dealer
160352PXCRP1501501508 hour - 72,000; 10 hour - 90,000; 12 hour - 108,000135Available Through Dealer
160350PXCRP2002001508 hour - 72,000; 10 hour - 90,000; 12 hour - 108,000135Available Through Dealer
Item #ModelEffective Filtration Area (Sq Ft)Flow Rate (GPM Res)Turnover Capacity (Gallons) (Flow Rate x 60 x Hours)Carton Oty.Carton Wt. (Lbs.)Purchase Options
160351PXCRP1001001008 hour - 48,000; 10 hour - 60,000; 12 hour - 72,000133Available Through Dealer
160352PXCRP1501501508 hour - 72,000; 10 hour - 90,000; 12 hour - 108,000135Available Through Dealer
160350PXCRP2002001508 hour - 72,000; 10 hour - 90,000; 12 hour - 108,000135Available Through Dealer
Show less

Certified to NSF/ANSI 50

Note: Actual system flow will depend on plumbing size and other system components.

Note: Pentair Pool Products and Pentair Aquatic Systems do not recommend flow rates above 150 GPM.

Note: Operating limits—Maximum continual operating pressure of 50 psi. Pool/spa (bather) applications, maximum operating water temperature (internal filter) 104° F (40° C).

*Integrated Continuous High Flow Internal Air Relief is operational only when there is unobstructed flow in the circulating system.
