Triton® II Side Mount Filters

Main Content Starts Here

Triton® II Side Mount Filters

Fiberglass Sand Filter Without Valves

Triton II Side Mount Filters are the original and still the industry standard. Our unique process creates a one-piece, fiberglass-reinforced tank with UV-resistant surface finish for years of unequaled strength and durability. This unique method locks in fiberglass, preventing fibers from "blooming" under harsh conditions.

  • Heavy-duty closure provides easy inspection
  • Easy-to-read pressure gauge with air relief valve
  • Instant access to sand and all internal parts
  • Internal air bleed automatically prevents unwanted air pockets
  • Combination sand and water drain makes servicing and winterizing fast and easy
  • Available only in store from Pentair dealers or retail stores

Note: Operating limits—Maximum continual operating pressure of 50 psi. Maximum operating water temperature (internal filter) 104° F (40° C).

Explore purchase options available for this product.
Where to Buy
Triton II Feature 2

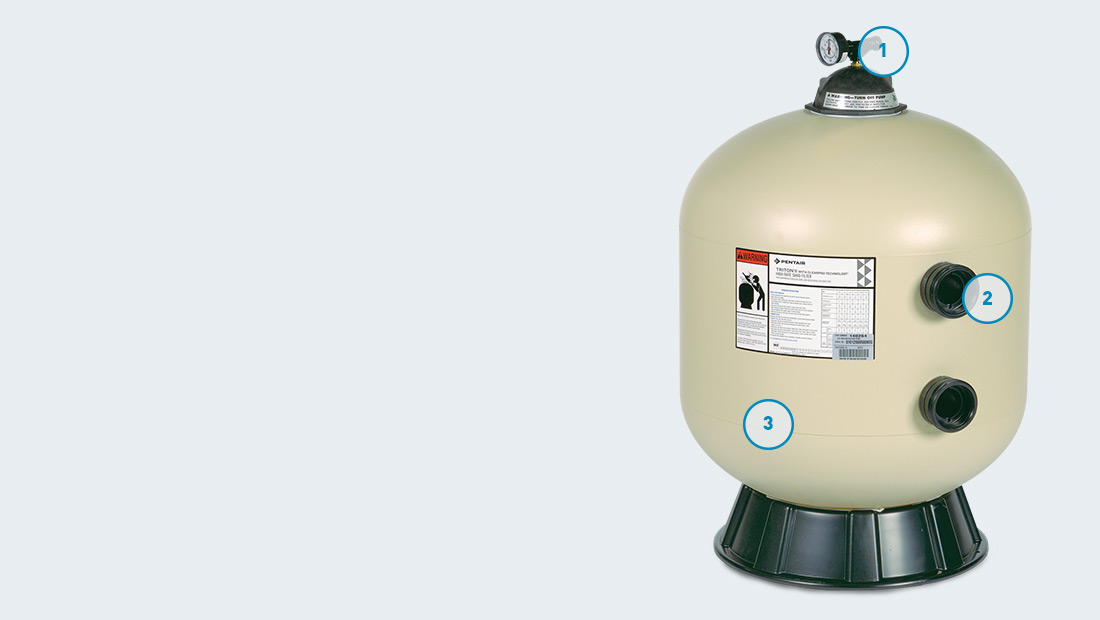

Product Components

  1. Easy access, heavy-duty closure with built-in pressure relief valve makes inspection and maintenance fast and easier
  2. Threaded bulkhead connectors for easier installation and service
  3. One-piece, fiberglass-reinforced tank with UV-resistant surface finish for years of unequaled strength and durability

Superior Design

The Triton II filter features a special internal design that ensures all water receives maximum filtration for crystal-clear results. Plus, a flow system design controls filtration quality and ensures maximum run times between backwashing to save you time.

Triton II Feature 1
Triton II Feature 3

Glaslok™ Process

This process creates a one-piece, fiberglass-reinforced tank with a UV-resistant coating for years of dependable, corrosion-resistant service.

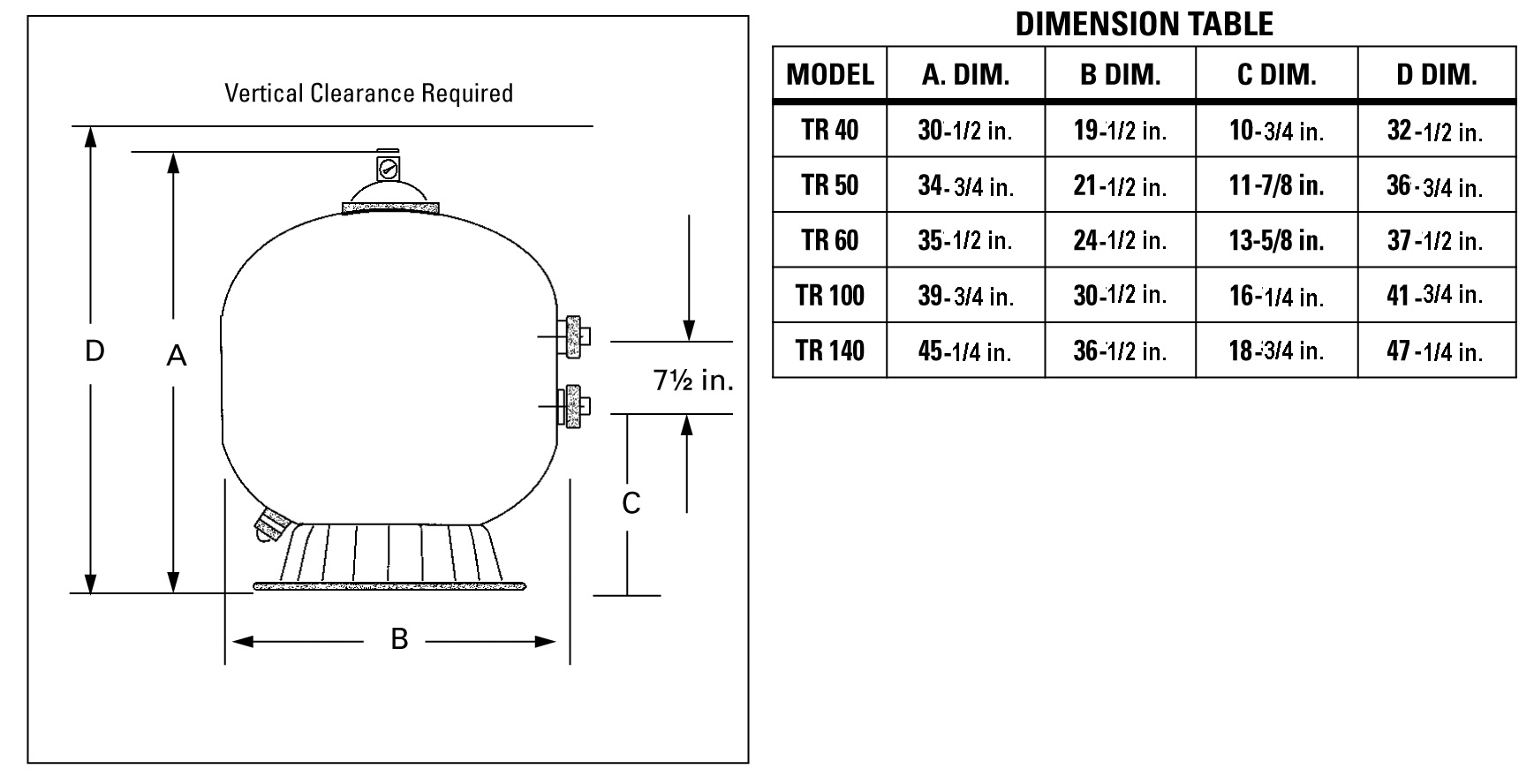

Triton II Dimensional Drawing

Specifications

Item #Purchase Options
140236Available Through Dealer
140249Available Through Dealer
140264Available Through Dealer
140210Available Through Dealer
140243Available Through Dealer
261173Available Through Dealer
263079Available Through Dealer
261049Available Through Dealer
261050Available Through Dealer
261055Available Through Dealer
Item #Purchase Options
140236Available Through Dealer
140249Available Through Dealer
140264Available Through Dealer
140210Available Through Dealer
140243Available Through Dealer
261173Available Through Dealer
263079Available Through Dealer
261049Available Through Dealer
261050Available Through Dealer
261055Available Through Dealer
263064Available Through Dealer
263080Available Through Dealer

140236, 140249, 140264, 140210, 140243: Triton II Sand Filters
261173, 263079, 261049, 261050, 261055, 263064, 263080: Triton II Valve Options. Valves must be purchased separately.
Turnover Capacity (In Gallons)

Products beginning with EC- are exclusive to e-commerce sales. For warranty information please visit www.pentair.com/warranty.
