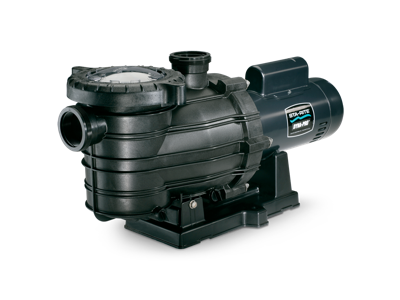

Dyna-Jet™ Spa and Water Features Pump
Previous
Next
The Heart of Your Pool's Circulation System
For residential/commercial use, indoor or outdoor installation. A spa and water features pump in the Sta-Rite tradition of Dura-Glas® pumps. Precision-molded of a proprietary blend of glass-reinforced thermoplastic that is highly corrosion resistant. Ideal pump where warm water service, high flow, and quiet operation are required.
- A spa and water features pump in the Sta-Rite tradition of Dura-Glas® Pumps
- Precision-molded of a blend of glass reinforced thermoplastic that is highly corrosion resistant
- Ideal pump where warm water service, high flow, and quiet operation are required
Pumps and replacement motors that are single speed and one (1) Total HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR section 1601-1609.
Specifications
| Item # | Voltage | Full Load Amps | HP | SF | SFHP | Primary Listings and Certifications | Port Size (NPT) | Carton Wt. (Lbs) | Curve Key | Purchase Options |
|---|---|---|---|---|---|---|---|---|---|---|
| TPEAE-165L | 115/230 | 12.6/3 | 1 | 1.25 | 1.25 | UL | 2 x 2" | 35 | H | Available Through Dealer |
| TPEAF-166L | 115/230 | 16.0/8.0 | 1-1/2 | 1.10 | 1.65 | UL | 2" x 2" | 37 | F | Available Through Dealer |
| TPEAG-167L | 230 | 10.4 | 2 | 1.10 | 2.20 | UL | 2" x 2" | 41 | C | Available Through Dealer |
| TPEAAG-168L | 230 | 11.2 | 2-1/2 | 1.04 | 2.60 | UL | 2" x 2" | 43 | A | Available Through Dealer |
| TPRAF-174L | 115/230 | 19.2/9.6 | 1-1/2 | 1.10 | 1.65 | UL | 2" x 2" | 33 | G | Available Through Dealer |
| TPRAG-175L | 230 | 12 | 2 | 1.10 | 2.20 | UL | 2" x 2" | 37 | E | Available Through Dealer |
| TPEAYG-175L | 230 | 11.3/3.3 | 2 / 1/4 | 1.10 | 2.20 | UL | 2" x 2" | 43 | D, J | Available Through Dealer |
| TPEAAYG-168L | 230 | 11.3/3.3 | 2-1/2 / 1/3 | 1.04 | 2.60 | UL | 2" x 2" | 45 | B, I | Available Through Dealer |
| Item # | Voltage | Full Load Amps | HP | SF | SFHP | Primary Listings and Certifications | Port Size (NPT) | Carton Wt. (Lbs) | Curve Key | Purchase Options |
|---|---|---|---|---|---|---|---|---|---|---|
| TPEAE-165L | 115/230 | 12.6/3 | 1 | 1.25 | 1.25 | UL | 2 x 2" | 35 | H | Available Through Dealer |
| TPEAF-166L | 115/230 | 16.0/8.0 | 1-1/2 | 1.10 | 1.65 | UL | 2" x 2" | 37 | F | Available Through Dealer |
| TPEAG-167L | 230 | 10.4 | 2 | 1.10 | 2.20 | UL | 2" x 2" | 41 | C | Available Through Dealer |
| TPEAAG-168L | 230 | 11.2 | 2-1/2 | 1.04 | 2.60 | UL | 2" x 2" | 43 | A | Available Through Dealer |
| TPRAF-174L | 115/230 | 19.2/9.6 | 1-1/2 | 1.10 | 1.65 | UL | 2" x 2" | 33 | G | Available Through Dealer |
| TPRAG-175L | 230 | 12 | 2 | 1.10 | 2.20 | UL | 2" x 2" | 37 | E | Available Through Dealer |
| TPEAYG-175L | 230 | 11.3/3.3 | 2 / 1/4 | 1.10 | 2.20 | UL | 2" x 2" | 43 | D, J | Available Through Dealer |
| TPEAAYG-168L | 230 | 11.3/3.3 | 2-1/2 / 1/3 | 1.04 | 2.60 | UL | 2" x 2" | 45 | B, I | Available Through Dealer |
ENERGY EFFICIENT SINGLE SPEED: TPEA-165L, TPEAF-166L, TPEAG-167L, TPEAG-168L
STANDARD EFFICIENCY SINGLE SPEED: TPRAF-174L, TPRAG-175L
ENERGY EFFICIENT TWO SPEED 3450 RPM, LOW SPEED 1725 RPM UP RATED: TPEAYG-175L, TPEAAYG-168L
