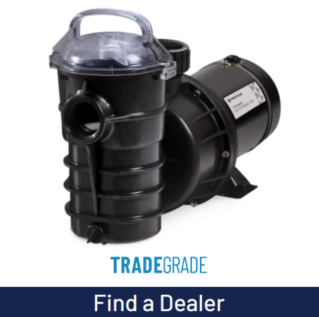

Dynamo® Aboveground Pool Pump

Quiet, Super-reliable Performance

All components designed for maximum performance and economy in an aboveground swimming pool pump.

  • Self-priming design ensures long life
  • Reinforced fiberglass for strength and durability
  • Large capacity basket with see-thru lid
  • Unique diffuser and impeller for excellent flow rates
  • Easy access drain plugs

Pumps and replacement motors that are single speed and one (1) TOTAL HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.

Note: TWL = Twist Lock Cord, STD = Standard Cord



Find out where to purchase online or in a retail location near you.
VIEW ITEMS
TradeGrade Logo in Blue

specifications

Item #modelVoltageFull Load AmpsHPCord Length (Ft.)Full Pipe SizeCarton Wt. (Lbs)
340194DYNII-NI- 3/4 HP115V Only9.23/43' STD51-1/2" 24
340314DYNII-NI- 3/4 HP115V Only9.23/43' TWL1-1/2" 24
340197DYNII-NI-1 HP115V Only12.013' STD1-1/2" 26
340316DYNII-NI-1 HP115V Only12.013' TWL1-1/2" 26
340210DYNII-NI-1-1/2 HP115V Only12.01-1/23' STD1-1/2" 26
351230DYNII-N-1-1/2 HP115V Only16.01-1/23' STD1-1/2"26
347970DYNII-N-1-1/2 HP115V Only16.01-1/23" TWL1-1/2"26
340219DYNII-NI-2 HP115V Only16.023' STD1-1/2" 30
340288DYNII-N1-3/4 HP115V Only9.23/425' STD1-1/2" 29
340289DYNII-N1-1 HP115V Only12.0125' STD1-1/2" 31
Show more
Item #modelVoltageFull Load AmpsHPCord Length (Ft.)Full Pipe SizeCarton Wt. (Lbs)
340194DYNII-NI- 3/4 HP115V Only9.23/43' STD51-1/2" 24
340314DYNII-NI- 3/4 HP115V Only9.23/43' TWL1-1/2" 24
340197DYNII-NI-1 HP115V Only12.013' STD1-1/2" 26
340316DYNII-NI-1 HP115V Only12.013' TWL1-1/2" 26
340210DYNII-NI-1-1/2 HP115V Only12.01-1/23' STD1-1/2" 26
351230DYNII-N-1-1/2 HP115V Only16.01-1/23' STD1-1/2"26
347970DYNII-N-1-1/2 HP115V Only16.01-1/23" TWL1-1/2"26
340219DYNII-NI-2 HP115V Only16.023' STD1-1/2" 30
340288DYNII-N1-3/4 HP115V Only9.23/425' STD1-1/2" 29
340289DYNII-N1-1 HP115V Only12.0125' STD1-1/2" 31
340290DYNII-N1-1-1/2 HP115V/230v16.01-1/225' STD1-1/2" 33
340103DYNII-NI-3/4 HP115V Only16.0/8.03/4N/A1-1/2"31
340104DYNII-NI-1 HP115V Only16.01N/A1-1/2"26
340184DYNII-N 1-1/2 HP115V Only16.01-1/2N/A1-1/2"26
340106DYNII-N 1-1/2 HP115V/23016.0/8.01-1/2N/A1-1/2"31
340203DYNII-N2-3/4 HP115V Only16.4/4.43/4N/A1-1/2"30
340204DYNII-N2 1 HP115V Only11.0/2.91N/A1-1/2"28
340206DYNII-N2-1-1/2 HP115V Only16.4/4.41-1/2N/A1-1/2"30
340060DYNII-N2-1HP115V Only11.0/2.913" STD1-1/2"28
340062DYNII-N2-1HP115V Only11.0/2.913" TWL1-1/2"28
340400DYNII-N2-1-1/2HP115V Only11.0/2.91-1/23' STD1-1/2"28
340064DYNII-N2-1-1/2HP115V Only11.0/2.91-1/23' TWL1-1/2"28
340542DYNII-N2-1-1/2HP115V Only16.4/4.41-1/23’ TWL1-1/2"31
Show less

SINGLE-SPEED WITH CORD: 340194, 340314, 340197, 340316, 340210, 351230, 347970, 340219

SINGLE-SPEED WITH CORD, BASE, AND ON/OFF SWITCH: 340288, 340289, 340290

ONE-SPEED WITHOUT CORD: 340103, 340104, 340184, 340106

TWO SPEED WITHOUT CORD: 340203, 340204, 340206

TWO-SPEED WITH CORD: 340060, 340062, 340400, 340064, 340542
