SuperFlo® High Performance Pumps

Strong Performance and Staying Power, Now with DOE Compliant Options

Pentair is proud to announce updates to the line of SuperFlo High Performance Pumps. We've added the first and only single-speed pump models to use NEMA Premium® Efficient motors for pool applications.* The new and improved SuperFlo DOE compliant pumps are designed to help save electricity and optimize hydraulic horsepower without sacrificing performance.

  • Available high-quality proprietary Totally Enclosed Fan-Cooled (TEFC) motor for a long, worry-free life.
  • Enhanced design and balanced flow enable greater efficiency and reduced operating costs.
  • Improved design that stands up to demanding installations and conditions.
  • 1.5” internal slip (2” external slip) and quick-disconnect plumbing union for faster disassembly, making it a summer breeze to service.
  • Cam and RampTM Lid permits easy inspection and cleaning of the strainer basket.
  • SuperFlo pumps are a high-performing drop-in replacement for the Hayward® Super Pump**.
  • Certain models meet updated DOE minimum efficiency requirements.
Find out where to purchase online or in a retail location near you.
VIEW ITEMS
TradeGrade Logo in Blue

ULTRA-QUIET PERFORMANCE

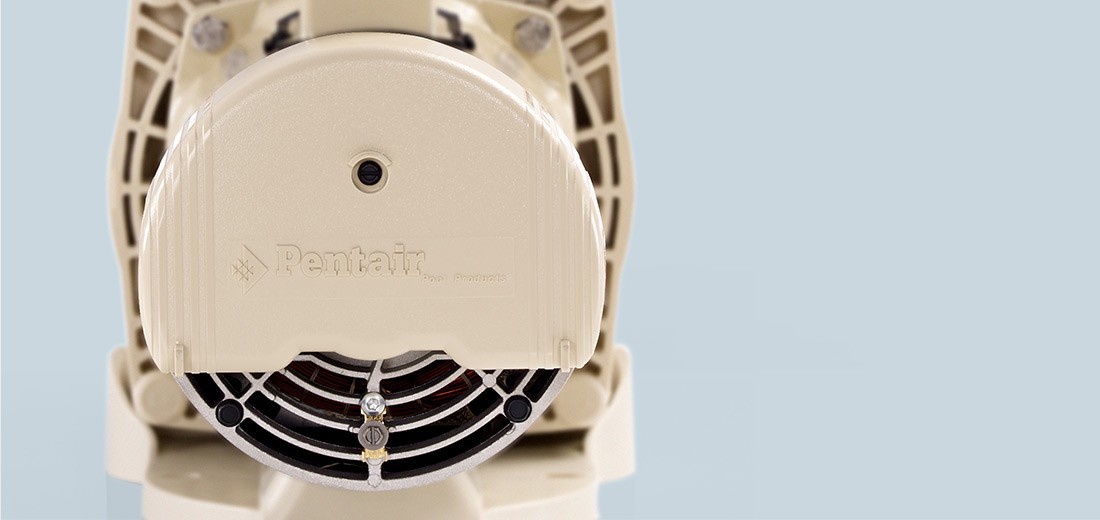

The ultra-quiet totally enclosed fan-cooled motor barely makes a whisper and virtually eliminates unpleasant, high-pitched noise.

true

Product Categories

TEFC SUPER-DUTY SINGLE SPEED: 348144, 348145, 348146

ENERGY EFFICIENT SINGLE SPEED: 348021, 348022, 348023, 348024, 348025, 348026

STANDARD EFFICIENCY SINGLE SPEED: 340036, 340037, 340038, 340039, 340040, 3400341

ENERGY EFFICIENT TWO SPEED 3450 RPM, LOW SPEED 1725 RPM: 341111, 340042, 340043, 340044

EFFICIENT SINGLE PHASE - 50HZ INPUT POWER FREQUENCY: 340098, 340094, 340095, 340096, 340097,

Specifications

Item #modelVoltageFull Load AmpsHPSFSFHPPrimary Listings and CertificationsPort Size (NPT)Carton Wt. (Lbs)Category
015583Coming Soon115/208-23010.5/5.5-5.40.63 HHP**11.1 THP***UL, NSF1.548DOE Compliant - Available in the U.S.
348190Coming Soon115/208-230VAC at 60hz10.5/5.5-5.4A 0.69 HHP***1.01.1UL, CSA, NSF, ANSI1.5”53DOE Compliant - Available in the U.S.
340094SF-N1-1-3/4240/1207.5/15.03/41.10.82N/A1.5 in. x 1.5 in.40Available outside of the U.S. / For international use only
340095SF-N1-1240/1206.9/13.811.11.10N/A1.5 in. x 1.5 in.38Available outside of the U.S. / For international use only
340096SF-N1-1-1/22407.21-1/21.11.65N/A1.5 in. x 1.5 in.40Available outside of the U.S. / For international use only
340097SF-N1-22409.421.12.20N/A1.5 in. x 1.5 in.48Available outside of the U.S. / For international use only
340098SF-N1-1/2240/1207.5/15.01/21.10.55N/A1.5 in. x 1.5 in.38Available outside of the U.S. / For international use only
348021SF-NI-1/2FE115/208-2308.8/4.5-4.41/21.900.95UL1.5" x 1.5"38Available outside of the U.S. / For international use only
348022SF-NI-3/4FE115/208-2308.8/4.5-4.43/41.671.25UL1.5" x 1.5"38Available outside of the U.S. / For international use only
348144SF N1 1FET115/208-23015.1/8.5-7.711.651.65UL, NSF1.5 in. x 1.5 in.41Available outside of the U.S. / For international use only
Item #modelVoltageFull Load AmpsHPSFSFHPPrimary Listings and CertificationsPort Size (NPT)Carton Wt. (Lbs)Category
015583Coming Soon115/208-23010.5/5.5-5.40.63 HHP**11.1 THP***UL, NSF1.548DOE Compliant - Available in the U.S.
348190Coming Soon115/208-230VAC at 60hz10.5/5.5-5.4A 0.69 HHP***1.01.1UL, CSA, NSF, ANSI1.5”53DOE Compliant - Available in the U.S.
340094SF-N1-1-3/4240/1207.5/15.03/41.10.82N/A1.5 in. x 1.5 in.40Available outside of the U.S. / For international use only
340095SF-N1-1240/1206.9/13.811.11.10N/A1.5 in. x 1.5 in.38Available outside of the U.S. / For international use only
340096SF-N1-1-1/22407.21-1/21.11.65N/A1.5 in. x 1.5 in.40Available outside of the U.S. / For international use only
340097SF-N1-22409.421.12.20N/A1.5 in. x 1.5 in.48Available outside of the U.S. / For international use only
340098SF-N1-1/2240/1207.5/15.01/21.10.55N/A1.5 in. x 1.5 in.38Available outside of the U.S. / For international use only
348021SF-NI-1/2FE115/208-2308.8/4.5-4.41/21.900.95UL1.5" x 1.5"38Available outside of the U.S. / For international use only
348022SF-NI-3/4FE115/208-2308.8/4.5-4.43/41.671.25UL1.5" x 1.5"38Available outside of the U.S. / For international use only
348144SF N1 1FET115/208-23015.1/8.5-7.711.651.65UL, NSF1.5 in. x 1.5 in.41Available outside of the U.S. / For international use only
348145SF N1 1-1/2FET208-23010.3-9.11-1/21.472.21UL, NSF1.5 in. x 1.5 in.45Available outside of the U.S. / For international use only
348146SF N1 2FET208-23011.7-10.321.32.6UL, NSF1.5 in. x 1.5 in.48Available outside of the U.S. / For international use only

*First single-speed, single-phase, Permanent Split Capacitor motor.

**Hayward® and Super Pump® are registered trademarks of Hayward Industries, Inc.

***Hydraulic Horse Power
