Pentair Hypro Universal Flange Gaskets
Main Content Starts Here

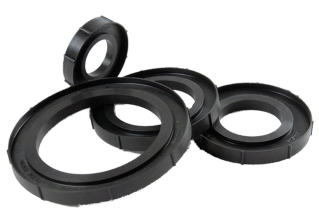

Pentair Hypro Universal Flange Gaskets

Hypro Universal Flanged Gaskets were designed to make joint assembly quick and easy, and works with the standard clamps or the Hypro Universal Flanged Clamp product line.
- The Hypro Universal Flanged Gasket's unique T-web aligns adjoining fittings while holding itself in place without the use of adhesives.
- Alignment ribs stiffen the T-web and mark 0 degrees, 45 degrees; and 90 degrees; for rotational alignment of fittings.
- Visibility allows for 100% inspection to prevent leaks and costly rework and ensuring that it is properly installed the first time, every time.
- The T-web secures the seal so that it cannot be sucked into the joint by normal pump suction increasing the flowable area up to 28%, while reducing turbulence and ensuring maximum flow
Specifications
Product:
Universal Flange Gaskets
Item # | Size (US) | Size (Metric) | Fits Series | Gasket Type |
---|---|---|---|---|
UFG0100E-A | 1" | 25mm | 100 | EPDM |
UFG0150E-A | 1.5" | 38mm | 200 | EPDM |
UFG0200E-A | 2" | 51mm | 220 | EPDM |
UFG0300E-A | 3" | 76mm | 300 | EPDM |
Item # | Size (US) | Size (Metric) | Fits Series | Gasket Type |
---|---|---|---|---|
UFG0100E-A | 1" | 25mm | 100 | EPDM |
UFG0150E-A | 1.5" | 38mm | 200 | EPDM |
UFG0200E-A | 2" | 51mm | 220 | EPDM |
UFG0300E-A | 3" | 76mm | 300 | EPDM |
