Pentair Hypro Hollow Cone Ceramic 80˚ Spray Nozzles
Previous
Next

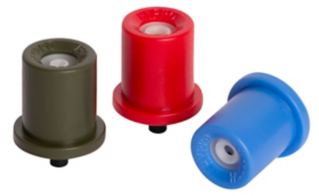

Pentair Hypro Hollow Cone Ceramic spray nozzles produce an 80˚ spray angle with a narrow spectrum of fine droplets.
- Ideal coverage for foliar contact applications
- Very fine droplets for dense canopy penetration
- Consistent droplet size across operating range of pressure
- Resistant to clogging due to round bore
Specifications
Common Use:
Plant Health
Pattern:
Hollow Cone
Technology:
Swirl
Material:
Ceramic
Spray Angle:
80˚
Pressure Range:
40-350 PSI
Configuration:
Tips
| Item # | Nozzle Size | Flow Rate |
|---|---|---|
| HCC80-005 | 005 | 0.052-0.129 GPM (0.20-0.51 LPM) |
| HCC80-0067 | 0067 | 0.071-0.179 GPM (0.27-0.70 LPM) |
| HCC80-01 | 01 | 0.103-0.261 GPM (0.39-1.01 LPM) |
| HCC80-015 | 015 | 0.155-0.391 GPM (0.59-1.52 LPM) |
| HCC80-02 | 02 | 0.211-0.531 GPM (0.80-2.07 LPM) |
| HCC80-03 | 03 | 0.314-0.789 GPM (1.19-3.07 LPM) |
| HCC80-04 | 04 | 0.417-1.050 GPM (1.58-4.08 LPM) |
| HCC80-05 | 05 | 0.520-1.310 GPM (1.97-5.09 LPM) |
| Item # | Nozzle Size | Flow Rate |
|---|---|---|
| HCC80-005 | 005 | 0.052-0.129 GPM (0.20-0.51 LPM) |
| HCC80-0067 | 0067 | 0.071-0.179 GPM (0.27-0.70 LPM) |
| HCC80-01 | 01 | 0.103-0.261 GPM (0.39-1.01 LPM) |
| HCC80-015 | 015 | 0.155-0.391 GPM (0.59-1.52 LPM) |
| HCC80-02 | 02 | 0.211-0.531 GPM (0.80-2.07 LPM) |
| HCC80-03 | 03 | 0.314-0.789 GPM (1.19-3.07 LPM) |
| HCC80-04 | 04 | 0.417-1.050 GPM (1.58-4.08 LPM) |
| HCC80-05 | 05 | 0.520-1.310 GPM (1.97-5.09 LPM) |
