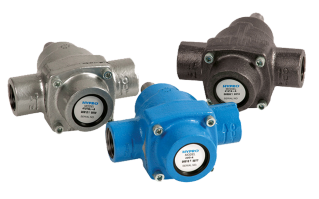

Pentair Hypro 4101 Series Roller Pumps

The 4101 series, 4 roller, pump achieves up to 7.2 gpm (27.3 lpm) and 150 psi (10.3 bar). The series includes models 4101C, 4101N, and 4101XL.

  •  Pump shaft rotation: Clockwise when looking at the shaft end (counter clockwise available)
  • Rollers: Super Rollers standard [Poly (T3) and Teflon® (T2)]
  • Special torque arm and base kit is available for gas engines
  • Rotor: Cast Iron, Ni-Resist or Silvercast
Find out where to purchase online or in a retail location near you.
Where to Buy

Specifications

Pump Type: Roller Pump
Ports: 3/4" NPT
Housing Material: Cast Iron (C), Ni-Resist (N) or Silvercast (XL)
Seal Material: Viton® standard
WEIGHT: 5 lbs./2.27 kg
Max Fluid Temperature: 140°F/60°C
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output (US)Shaft Output (Metric)Shaft
4101C7.227.315010.326005/8"15.9 mmSolid
4101C-H7.227.315010.326001/2"12.7 mmHollow
4101N7.227.315010.326005/8"15.9 mmSolid
4101N-H7.227.315010.326001/2"12.7 mmHollow
4101XL7.227.315010.326005/8"15.9 mmSolid
4101XL-H7.227.315010.326001/2"12.7 mmHollow
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output (US)Shaft Output (Metric)Shaft
4101C7.227.315010.326005/8"15.9 mmSolid
4101C-H7.227.315010.326001/2"12.7 mmHollow
4101N7.227.315010.326005/8"15.9 mmSolid
4101N-H7.227.315010.326001/2"12.7 mmHollow
4101XL7.227.315010.326005/8"15.9 mmSolid
4101XL-H7.227.315010.326001/2"12.7 mmHollow
