Pentair Hypro 9307CWS Series Centrifugal Pumps
Main Content Starts Here
Pentair Hypro 9307CWS Series Centrifugal Pumps

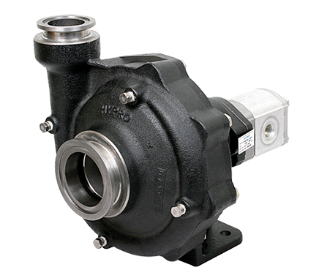

The Hypro 9307CWS hydraulically-driven, cast iron centrifugal pump with ForceField Seal Technology achieves a max of 370 gpm (1400 lpm) and max of 135 psi (9.8 bar).
- ForceField Technology is a superior wet seal technology that provides the ultimate protection for the mechanical seal and avoids costly downtime
- Protects the mechanical seal against common failures related to dry run and chemical bonding by using a barrier fluid to keep it cool and lubricated
- Direct drop-in for current 9307 designs
- Components designed for today’s high volume liquid fertilizer application on large capacity sprayers:
- Hydraulic motor includes a case drain for maximum motor life
- 316 stainless steel impeller
- Two-piece shaft design includes 416 stainless steel wet end and 8620 hardened steel drive end
- Bearings designed to handle continuous high volume pump loading
- Capable of flows over 370 GPM (1400 LPM) at 40 PSI (2.8 BAR)
For Flanged Connections You Will Also Need: Universal Flange Gasket, Universal Flange Clamp
Specifications
Housing Material:
Cast Iron
Seal Material:
ForceField Technology
Pump Type:
Centrifugal
Drive Type:
Hydraulic
Ports:
300 x 220 Universal Flanges
Hydraulic Selection System:
Open/Closed
Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max Hydraulic GPM | Max Hydraulic LPM |
---|---|---|---|---|---|---|
9307CWS-GM12 | 370 | 1400 | 135 | 9.8 | 23 | 87.1 |
Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max Hydraulic GPM | Max Hydraulic LPM |
---|---|---|---|---|---|---|
9307CWS-GM12 | 370 | 1400 | 135 | 9.8 | 23 | 87.1 |
