Simple Cartridge Can Be Cleaned With a Hose

Long-lasting Clean & Clear Cartridge Filter with fiberglass-reinforced, chemical resistant, polypropylene tanks are among the simplest to maintain. The easily accessible cartridge can be rinsed clean in minutes with a garden hose. Pool pros love the easy spin-on unions that provide fast hookup and servicing.

Integrated Continuous High Flow™ Internal Air Relief*
Chemical-resistant tank body
Coreless cartridge for easy cleaning
High Flow manual air relief valve
Single-piece base and body design

Find out where to purchase online or in a retail location near you.

VIEW ITEMS

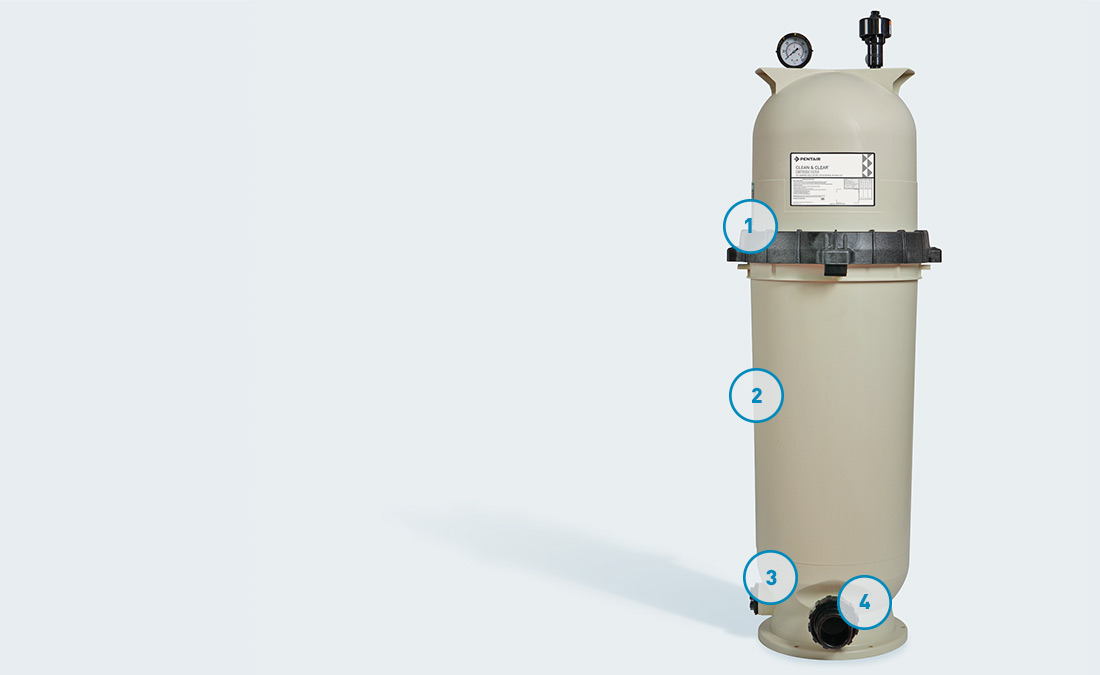

Product Components

Clamp ring for quick access to cartridges
Single-piece fiberglass-reinforced polypropylene tank for strength and corrosion resistance
Easy access 1 ½” drain
2" plumbing for maximum flow

Crystal Clarity with Cartridge Convenience

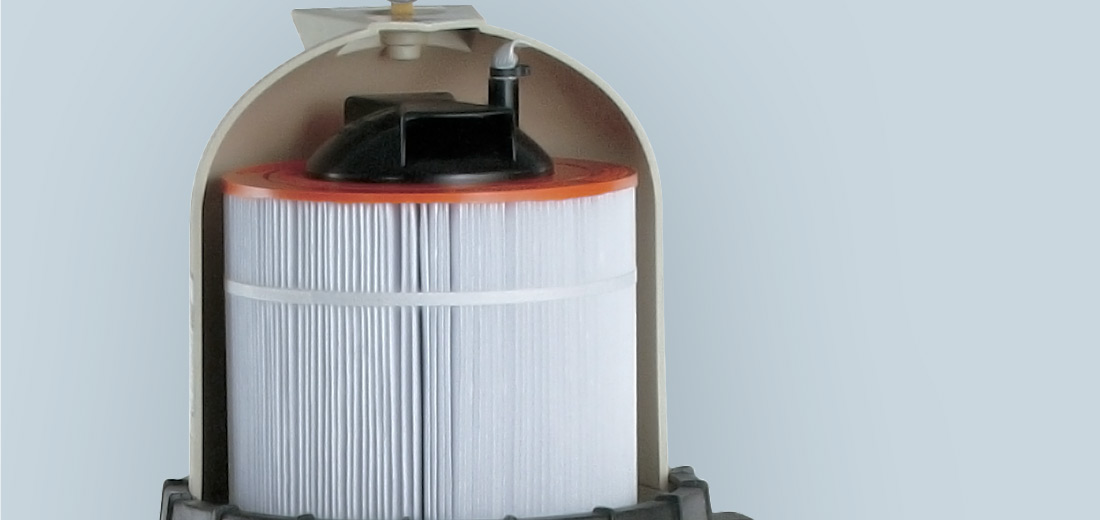

The Clean & Clear pool filter will keep your pool sparkling day in and day out. It features a cartridge that is easy to remove and rinse, as well as a clamp ring that allows easy access to the cartridge and internal parts.

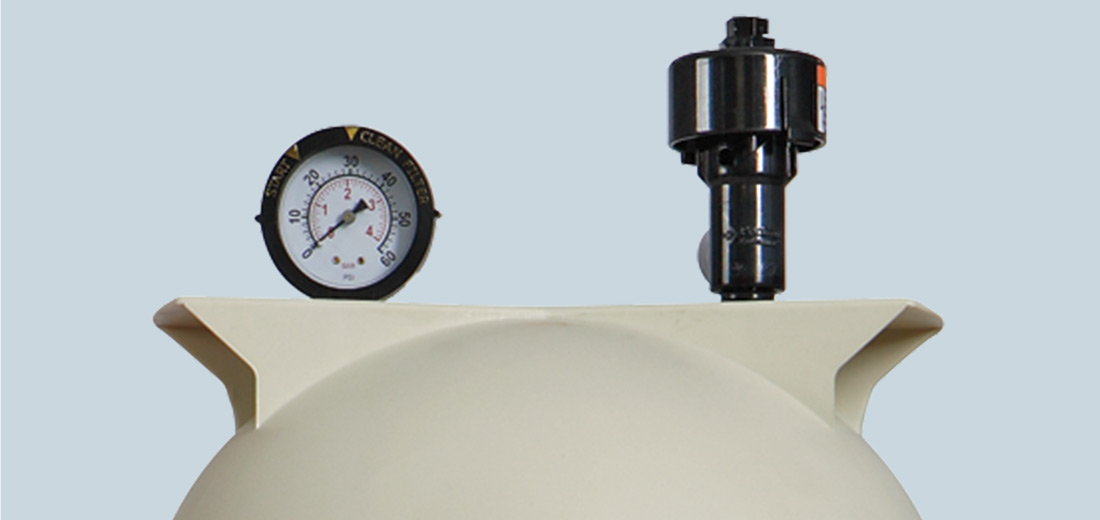

High-Flow™ Manual Air Relief Valve

This powerful valve and continuous internal air relief work together to maintain optimum pool filtration efficiency at all times.

Homeowner and Pro Resources

Brochures

Manuals

Replacement Parts

Clean and Clear FIlter Manual— English

Specifications

Item #	model	Effective Filtration Area (Sq.Ft)	Flow Rate (GPM Res)	8 Hour	10 Hour	12 Hour	Carton Qty.	Carton Wt. (Lbs.)
160314	CC 50	50	50	24,000	30,000	36,000	1	15
160315	CC 75	75	75	36,000	45,000	54,000	1	26
160316	CC 100	100	100	48,000	60,000	72,000	1	33
160317	CC 150	150	150	72,000	90,000	108,000	1	35
160318	CC 200	200	200	72,000	90,000	108,000	1	35
EC-160315	CC 75	75	75	36,000	45,000	54,000	1	26
EC-160316	CC 100	100	100	48,000	60,000	72,000	1	33
EC-160317	CC 150	150	150	72,000	90,000	108,000	1	35
EC-160318	CC 200	200	150	72,000	90,000	108,000	1	35

Item #	model	Effective Filtration Area (Sq.Ft)	Flow Rate (GPM Res)	8 Hour	10 Hour	12 Hour	Carton Qty.	Carton Wt. (Lbs.)
160314	CC 50	50	50	24,000	30,000	36,000	1	15
160315	CC 75	75	75	36,000	45,000	54,000	1	26
160316	CC 100	100	100	48,000	60,000	72,000	1	33
160317	CC 150	150	150	72,000	90,000	108,000	1	35
160318	CC 200	200	200	72,000	90,000	108,000	1	35
EC-160315	CC 75	75	75	36,000	45,000	54,000	1	26
EC-160316	CC 100	100	100	48,000	60,000	72,000	1	33
EC-160317	CC 150	150	150	72,000	90,000	108,000	1	35
EC-160318	CC 200	200	150	72,000	90,000	108,000	1	35

Show less

Item #	model	Effective Filtration Area (Sq.Ft)	Flow Rate (GPM Res)	8 Hour	10 Hour	12 Hour	Carton Qty.	Carton Wt. (Lbs.)
160314	CC 50	50	50	24,000	30,000	36,000	1	15
160315	CC 75	75	75	36,000	45,000	54,000	1	26
160316	CC 100	100	100	48,000	60,000	72,000	1	33
160317	CC 150	150	150	72,000	90,000	108,000	1	35
160318	CC 200	200	200	72,000	90,000	108,000	1	35
EC-160315	CC 75	75	75	36,000	45,000	54,000	1	26
EC-160316	CC 100	100	100	48,000	60,000	72,000	1	33
EC-160317	CC 150	150	150	72,000	90,000	108,000	1	35
EC-160318	CC 200	200	150	72,000	90,000	108,000	1	35

Show less

Certified to NSF/ANSI 50
Flow Rate: One GPM per sq. ft. shown recommended flow rate 0.5 GPM per sq. ft.
Turnover Capacity (In Gallons)

Products beginning with EC- are exclusive to e-commerce sales. For warranty information please visit www.pentair.com/warranty.

Support

Note: Actual system flow will depend on plumbing size and other system components.

Note: Pentair Aquatic Systems does not recommend flow rates above 150 GPM.

*Integrated Continuous High Flow Internal Air Relief is operational only when there is unobstructed flow in the circulating system.

Note: Operating limits—Maximum continual operating pressure of 50 psi. Pool/spa (bather) applications, maximum operating water temperature (internal filter) 104° F (40° C).
