Tagelus® Top Mount Filter

Main Content Starts Here

Tagelus® Top Mount Filter

Fiberglass Tank With Multiport Valve, Clamp Style

Our process creates a one-piece, fiberglass reinforced tank with superior strength and durability. Tagelus Top Mount Filters are equipped with a six-position, top-mounted multiport valve.

  • Special lateral design provides superior flow characteristics and long filter cycles for economical operation
  • Maximum Operating Pressure 50 psi
  • Combination water and sand drain makes servicing and winterizing fast and easy
  • 40, 50, and 60D models standard with plastic clamp
  • Available only in store from Pentair dealers or retail stores

Note: Operating Limits - maximum continual operating pressure of 50 psi. Maximum operating water temperature (internal filter) 104°F (40°C).

Explore purchase options available for this product.
Where to Buy

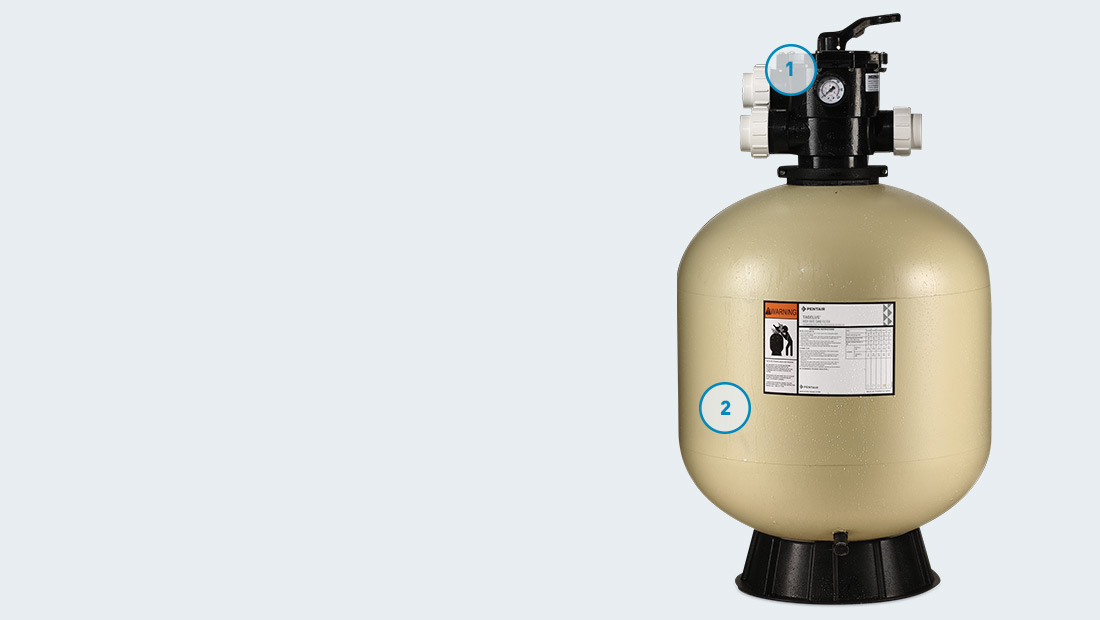

Tagelus Top Mount Filter Components

Product Components

  1. Hi Flow™ Valve provides easy control of all filter functions
  2. Exceptionally strong one-piece fiberglass-reinforced tank with UV-resistant surface finish for years of service

Superior Design

The Tagelus filter’s time-proven internal design ensures water is exposed to a maximum surface area of sand for optimal filtration performance and more efficient backwashing. Meanwhile, the flow system design also ensures maximum run times between backwashing to save you time.

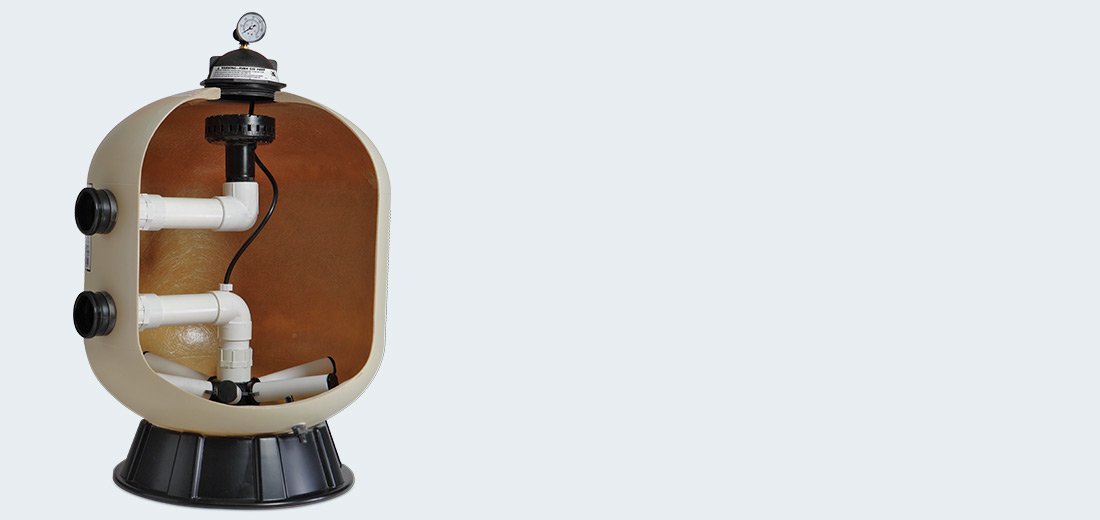

Tagelus Top Mount Filter Design Cut-Out
Tagelus Top Mount Filter Featured 3

Long-lasting Construction

The Tagelus filter tank is constructed from one piece of fiberglass-reinforced material to deliver unmatched strength and durability for years of service.

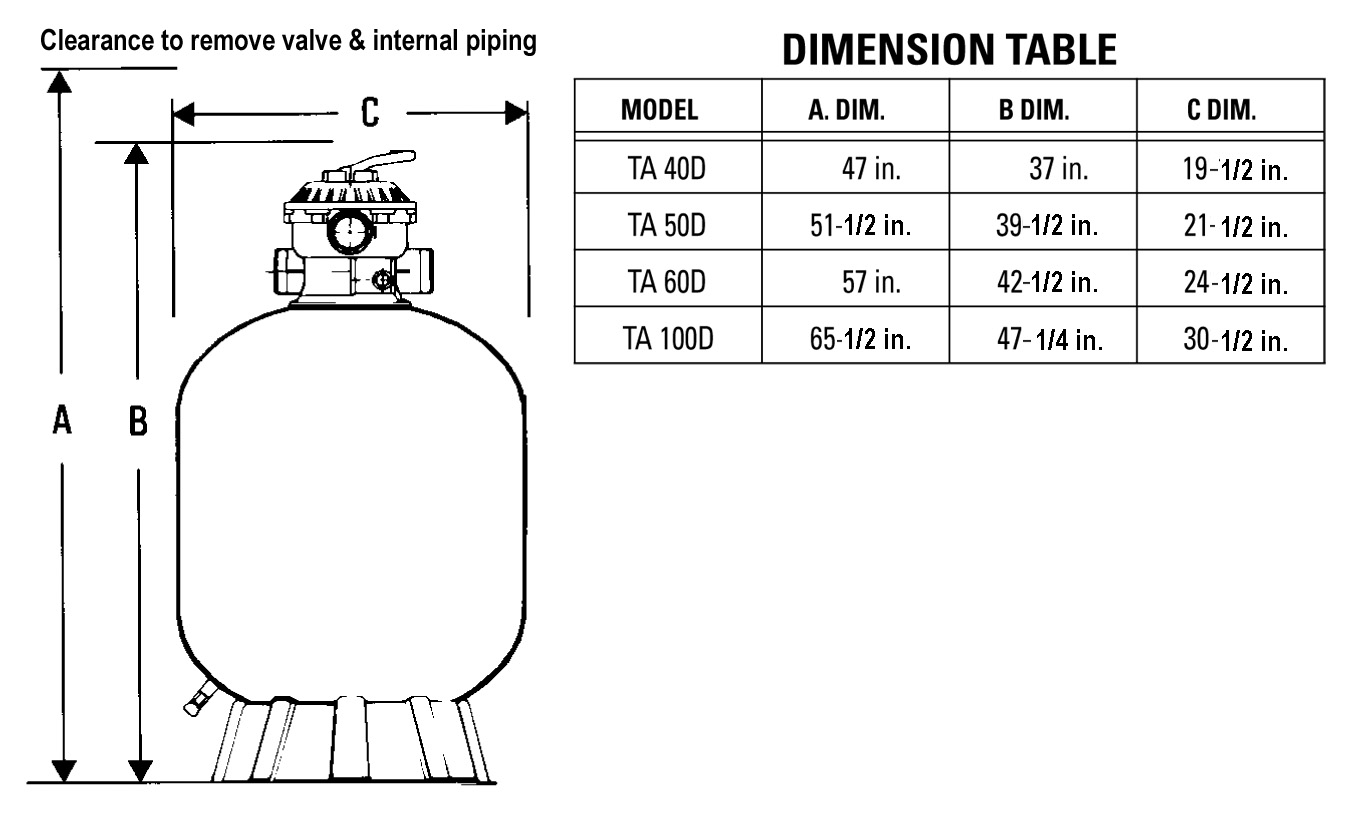

Tagelus Top Mount Filter Dimensional Drawing

Specifications

Item #Purchase Options
144126Available Through Dealer
144127Available Through Dealer
145241Available Through Dealer
145240Available Through Dealer
145385Available Through Dealer
Item #Purchase Options
144126Available Through Dealer
144127Available Through Dealer
145241Available Through Dealer
145240Available Through Dealer
145385Available Through Dealer
Show less

145385: with 2 in. valve
Turnover Capacity (In Gallons)

Products beginning with EC- are exclusive to e-commerce sales. For warranty information please visit www.pentair.com/warranty.
