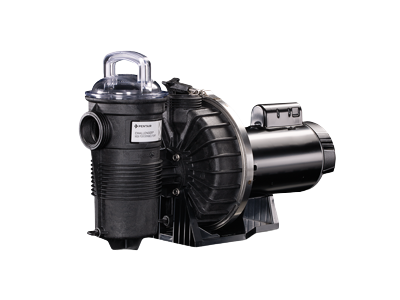

Challenger® High Pressure Pool and Spa Pump

Thermoplastic Pump with Closed Impeller, Single Speed

Single-speed Challenger pool pumps for inground pools are designed specifically for applications requiring higher pressure operation to feed multiple needs beyond pool water circulation, such as spa jets, in-floor cleaning systems and decorative water features like waterfalls and fountains. Pump components are made from custom-molded thermoplastic for superior strength and durability.

  • Standard 2-in. suction and discharge ports permit operating efficiency
  • Extra-large strainer basket extends time between cleanings
  • Transparent strainer pot lid with comfortable handle provides easy access to strainer basket
  • Diffuser and impeller provide excellent high-pressure performance for all types of demanding installations
  • One-bolt stainless-steel clamp removes easily to provide quick access for any required service
  • Power end can easily be removed for service or winterizing without disturbing piping or pump support base
  • No tool required for removing thumbscrew drain plugs for draining and winterizing
  • Internal components and 2-in. ports are designed to provide rapid priming and quiet operation

Pumps and replacement motors that are single speed and one (1) Total HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.

Find out where to purchase online or in a retail location near you.
VIEW ITEMS
TradeGrade Logo in Blue

specifications

Item #modelVoltageFull Load AmpsHPSFSFHPPrimary Listings and CertificationsPort Size (NPT)Carton Wt. (Lbs)Curve Key
348154CHII N1 1FET115/208-23015.1/8.5-7.711.651.65UL, NSF2 in. x 2 in.44I
348155CHII N1 1-1/2FET208-23010.3-9.11-1/21.472.21UL, NSF2 in. x 2 in.48J
348156CHII N1 2FET208-23011.7-10.321.32.6UL, NSF2 in. x 2 in.51K
348157CHII N1 3FET208-23014.6-12.731.153.45UL, NSF2 in. x 2 in.55L
345212CHII-NI-1/2FE115/208-2308.8/4.5-4.41/21.900.95Ul, NSF, APSP2" x 2"41G
345213CHII-NI-3/4FE115/208-23011.2/6.0-5.63/41.671.25UL, NSF, CSA2" x 2"43H
345205CHII-NI-1FE115/208-23014.8/7.8-7.411.651.65UL, NSF2" x 2"46I
345206CHII-NI-1-1/2FE208-2309.6-8.81-1/21.472.20UL, NSF2" x 2"54J
345208CHII-NI-2FE208/23011.0-10.221.302.60UL, NSF2" x 2"55K
345209CHII-NI-3FE208-23015.0-13.631.153.45UL, NSF2" x 2"56L
Item #modelVoltageFull Load AmpsHPSFSFHPPrimary Listings and CertificationsPort Size (NPT)Carton Wt. (Lbs)Curve Key
348154CHII N1 1FET115/208-23015.1/8.5-7.711.651.65UL, NSF2 in. x 2 in.44I
348155CHII N1 1-1/2FET208-23010.3-9.11-1/21.472.21UL, NSF2 in. x 2 in.48J
348156CHII N1 2FET208-23011.7-10.321.32.6UL, NSF2 in. x 2 in.51K
348157CHII N1 3FET208-23014.6-12.731.153.45UL, NSF2 in. x 2 in.55L
345212CHII-NI-1/2FE115/208-2308.8/4.5-4.41/21.900.95Ul, NSF, APSP2" x 2"41G
345213CHII-NI-3/4FE115/208-23011.2/6.0-5.63/41.671.25UL, NSF, CSA2" x 2"43H
345205CHII-NI-1FE115/208-23014.8/7.8-7.411.651.65UL, NSF2" x 2"46I
345206CHII-NI-1-1/2FE208-2309.6-8.81-1/21.472.20UL, NSF2" x 2"54J
345208CHII-NI-2FE208/23011.0-10.221.302.60UL, NSF2" x 2"55K
345209CHII-NI-3FE208-23015.0-13.631.153.45UL, NSF2" x 2"56L
346209CHII-NI-2-1/2AE208-23015.0-13.631.152.60UL2" x 2"55K
345202CHI-NI-1/2F115/23010.8-5.41/21.900.95UL, NSF, CSA, APSP2" x 2"41G
345203CHII-NI- 3/4F115/23014.2/7.111.671.25UL, NSF, CSA, APSP2" x 2"41H
345204CHII-NI-1F115/23016.0/8.011.651.65UL, NSF, CSA2" x 2"I
345201CHII-NI-1-1/2F115/23022.4/11.21-1/21.502.20UL, NSF2" x 2"49J
345218CHII-NI-2F23011.521.302.60UL, NSF, CSA2" x 2"55K
345219CHII-NI-3F23014.121.153.45UL, NSF2" x 2"56L
346203CHII-NI- 3/4A115/23010.8/5.43/41.250.94UL, CSA2" x 2"41G
346204CHII-NI-1A115/23014.2/7.11.251.251.25UL, CSA2" x 2"41H
346206CHII-NI-1-1/2A115/23016.0/8.01-1/21.101.65UL, CSA2" x 2"41I
346201CHII-NI-2A115/23022.4/11.221.102.20UL, CSA2" x 2"49J
346249CHII-NI-2-1/2A23011.52 1/21.042.60UL2" x 2"55K

EFFICIENT SINGLE SPEED FULL RATED: 345212, 345213, 345205, 345206, 345208, 345209

EFFICIENT SINGLE SPEED UP RATED: 346209

STANDARD SINGLE SPEED FULL RATED: 345202, 345203, 345204, 345201, 345218, 345219

STANDARD SINGLE SPEED UP RATED: 346203, 346204, 346206, 346201, 346249

EFFICIENT SINGLE SPEED FULL RATED - 3 PHASE: 345290, 345284, 345286, 345288, 345299
