IntelliFlo® i1 and i2 Variable Speed and Pool Pump

Previous
Next

The Energy-efficient Variable Speed Pool Pump for Systems With Smaller Plumbing

For pools in areas that restrict replacement pump flow rates, the IntelliFlo i1 Variable Speed Pool Pump for inground pools may be the ideal choice. Its hydraulic design reduces flow rates while providing the significant energy savings you’d expect from a Pentair variable speed pump. With a maximum rating of seven amps, this makes retrofits easier in applications that are limited by existing wire gauge size.

IntelliFlo i2 Variable Speed Pool pump is hydraulically engineered to provide maximum performance on a 15-amp breaker. It has a maximum rating of 11.8 amps, which makes retrofits easier in applications that are limited by existing wire gauge size. Energy efficient, automation ready and technologically advanced—now that’s a smart choice.

  • Permanent magnet motor runs cooler, produces less vibration than induction motors
  • Totally enclosed fan-cooled (TEFC) design protects against the elements
  • Built-in diagnostics that detect the most common causes of premature wear and tear—loss of prime, overheating, freezing and voltage irregularities—protect the pump for longer service life
  • Improves the efficiency of automatic chlorinators and chemical dispensers, because water moves slower for longer periods of time
  • Heavy-duty/durable construction is designed for long life
  • IntelliFlo i1   WEF  7.5   THP  3.95
  • IntelliFlo i2   WEF 6.9   THP  3.95
Find out where to purchase online or in a retail location near you.
VIEW ITEMS

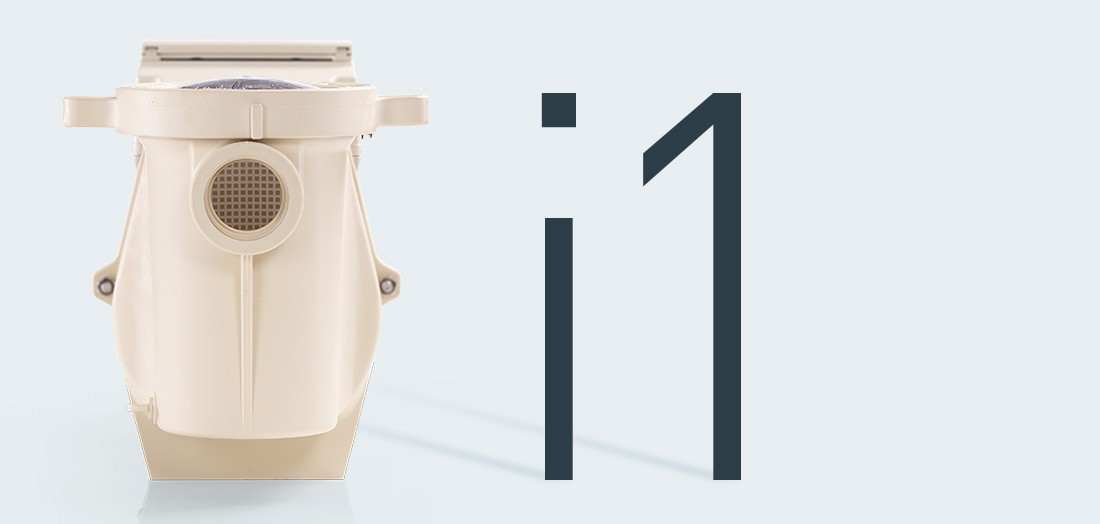

Versatile Hydraulic Design

If your pool is in an area that restricts the rate of flow on replacement pumps, the IntelliFlo i1 pump may be your ideal choice. Its hydraulic design reduces flow rates while providing the significant energy savings you’d expect from a Pentair variable speed pump.

true
true

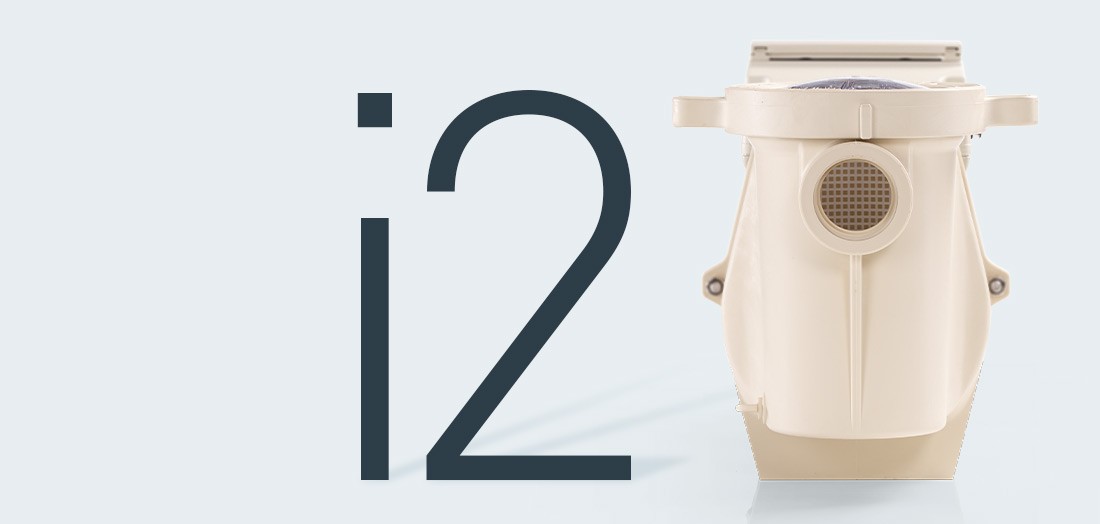

Designed for Maximum Performance

The IntelliFlo i2 pump is hydraulically engineered to provide maximum performance on a 15-amp breaker. It has a maximum rating of 11.8 amps, which makes retrofits easier in applications that are limited by existing wire gauge size.

blue-pure-water-wave-splash-white-background-horizontal-7500x5000-image-file-652635500

Energy Star Certified

The IntelliFlo I1 and I2 pumps feature some of the smartest pump technology available and has received an ENERGY STAR Certification. You can expect increased energy savings over conventional single- or two-speed pumps, up to 90%.*

Save Energy and Money

The IntelliFlo i1 and i2 pumps are built to move water more efficiently at lower speeds. They also provide increased energy savings versus conventional pumps. Plus, they have a record of proven field reliability that no competitor can match.

true
true

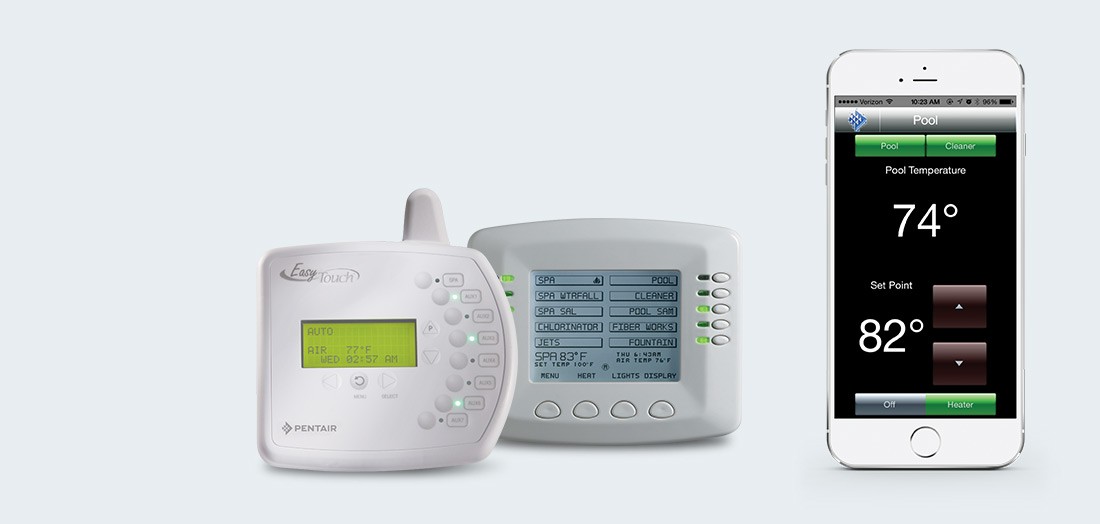

Easy Automation, Even Remotely

The IntelliFlo i1 and i2 variable speed pumps are designed to pair with our Automation Systems. They can be programmed to deliver the right flow required for filtration, water features, spas and other equipment. Plus, the IntelliFlo i1 and i2 pumps interface with these automation systems to give you the convenience of mobile device control.

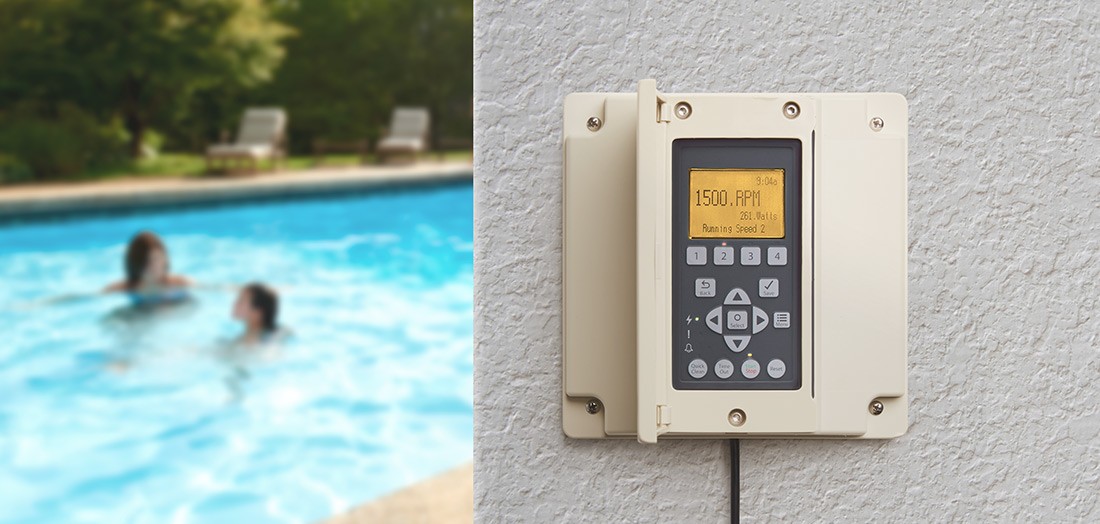

Keypad Convenience

The new keypad is rotatable for easy access and has an optional wall mount kit that’s sold separately.

true

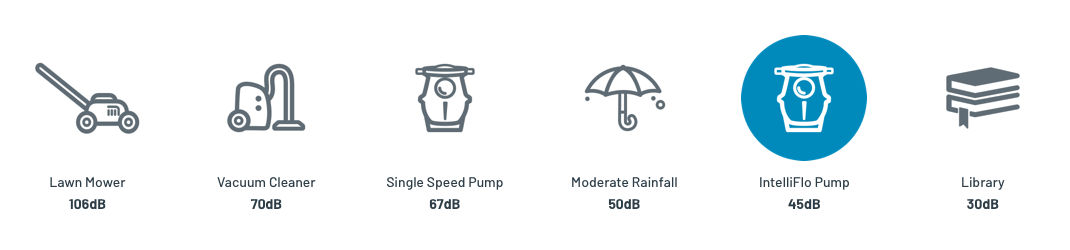

The Ultimate in Quiet

The IntelliFlo i1 and i2 pumps feature a totally enclosed fan-cooled design and a permanent magnet motor that virtually eliminates unpleasant, high-pitched noise. At low speeds, you might not even know they are operating.

true

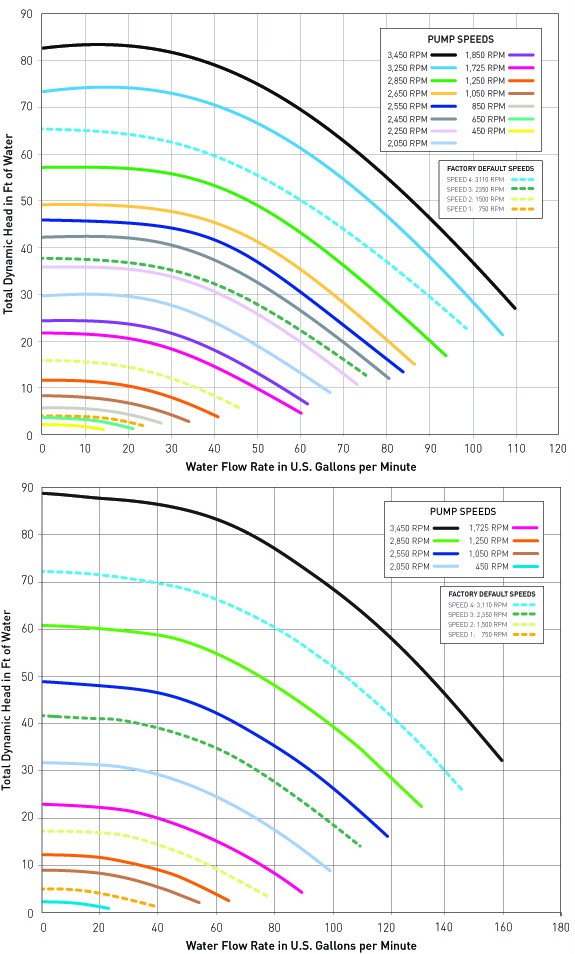

Performance Curves

true
true

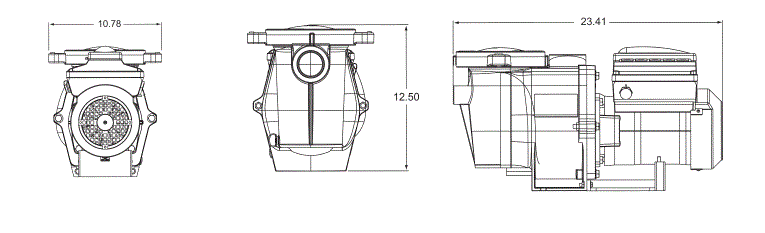

Dimensional Drawings

specifications

Item #DescriptionVoltageFull Load AmpsHPSFSFHPFREQ (Hz)Primary Listings and Certifications4Port Size (NPT)Carton Wt. (Lbs.)
011059IntelliFlo i1 Variable Speed Pump230V7.31.03.953.9550hz/60hzUL, NSF, APSP2 in. x 2 in.55
011060IntelliFlo i2 Variable Speed Pump230V11.82.01.983.9550hz/60hzUL, NSF, APSP2 in. x 2 in.55
EC-011059IntelliFlo i1 Variable Speed Pump, Ecommerce230V7.313.953.9550hz/60hzUL, NSF, APSP2 in. x 2 in.55
EC-011060IntelliFlo i2 Variable Speed Pump, Ecommerce230V11.821.983.9550hz/60hzUL, NSF, APSP2 in. x 2 in.55
Item #DescriptionVoltageFull Load AmpsHPSFSFHPFREQ (Hz)Primary Listings and Certifications4Port Size (NPT)Carton Wt. (Lbs.)
011059IntelliFlo i1 Variable Speed Pump230V7.31.03.953.9550hz/60hzUL, NSF, APSP2 in. x 2 in.55
011060IntelliFlo i2 Variable Speed Pump230V11.82.01.983.9550hz/60hzUL, NSF, APSP2 in. x 2 in.55
EC-011059IntelliFlo i1 Variable Speed Pump, Ecommerce230V7.313.953.9550hz/60hzUL, NSF, APSP2 in. x 2 in.55
EC-011060IntelliFlo i2 Variable Speed Pump, Ecommerce230V11.821.983.9550hz/60hzUL, NSF, APSP2 in. x 2 in.55

Products beginning with EC- are exclusive to e-commerce sales. For warranty information please visit www.pentair.com/warranty.

 * Savings based on variable speed pump compared to a single-speed pump running 12 hours per day at an average of $0.16 per kWh in a 20,000 gallon pool. Actual savings may vary based on local utility rates, pool size, pump run time, pump horsepower, pump rpm, plumbing size and length, pump model, service factor and other hydraulic factors.
