SuperFlo® VS Variable Speed Pump

Main Content Starts Here

SuperFlo® VS Variable Speed Pump

Pool Pump Rebates: Save up to $100 View Rebates Close
Previous
Next

The Perfect Pump for Everyday Pools Requiring Up to a 1.5 Hp Pump

The SuperFlo VS Variable Speed Pumps bring the remarkable energy cost savings of variable speed technology to standard pools at an affordable price. They reduce energy costs by up to 80%. SuperFlo VS Variable Speed Pumps have an easyto- read graphical display and a built-in timer so the pumps are easy to install and easy to use.

  • Variable speed technology costs significantly less to operate
  • Ideal for standard pools requiring up to 1.5 hp pump
  • 110/230V and 50/60 Hz capability
  • Real-time clock with 24-hour memory retention
  • Simple, intuitive user interface is easy to program and operate
  • Easy to access electrical connections for simple installation
  • Three operating speed settings plus override capability
  • SuperFlo pump by Pentair Aquatic Systems is a direct replacement for the Hayward® Super Pump® *
  • 115-volt: WEF 7.3 THP 2.2
  • 230-volt: WEF 6.6 THP 2.2
Find out where to purchase online or in a retail location near you.
VIEW ITEMS
EcoSelect logo

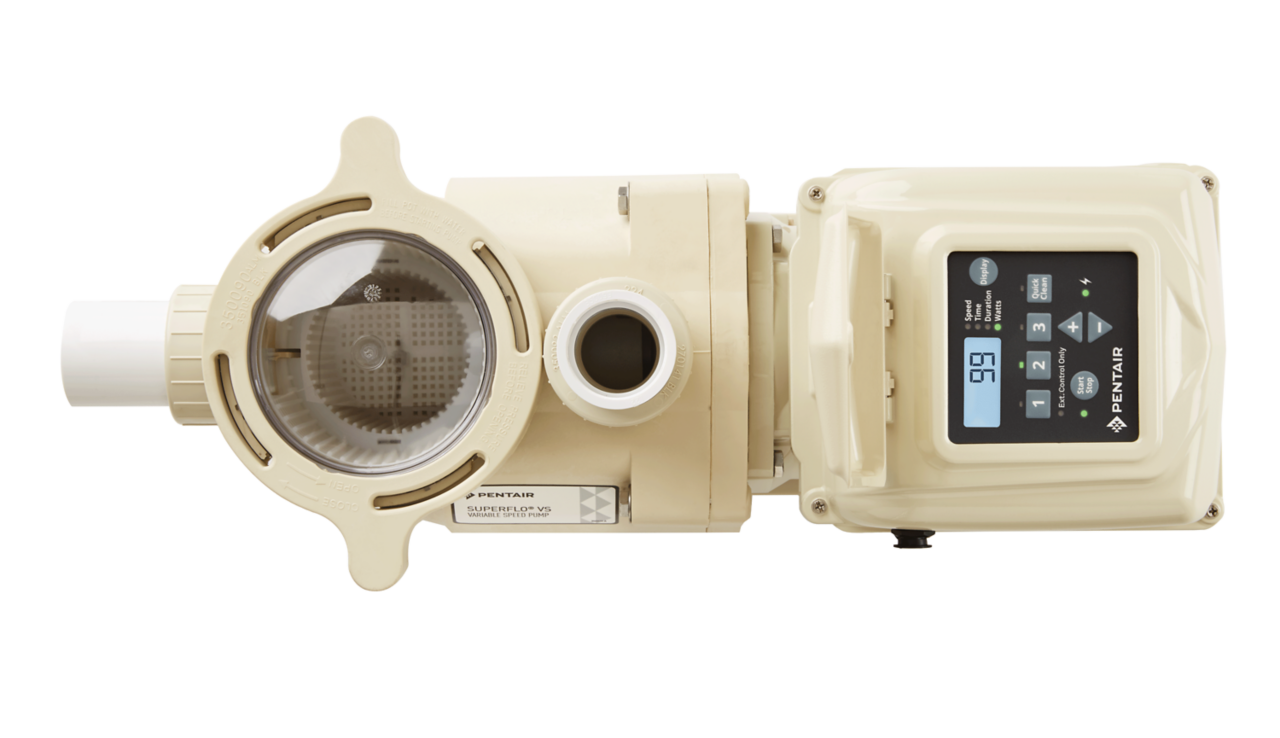

SuperFlo VS Pump

Product Components

  1. Built-in, real-time, 24-hour clock
  2. Intuitive, easy-to-use interface
  3. Display shows watt use and other key operational information
  4. Wiring compartment is easy to access

2020 Pool Rebates Are Here!

Save up to $100 on Select Pool Pumps

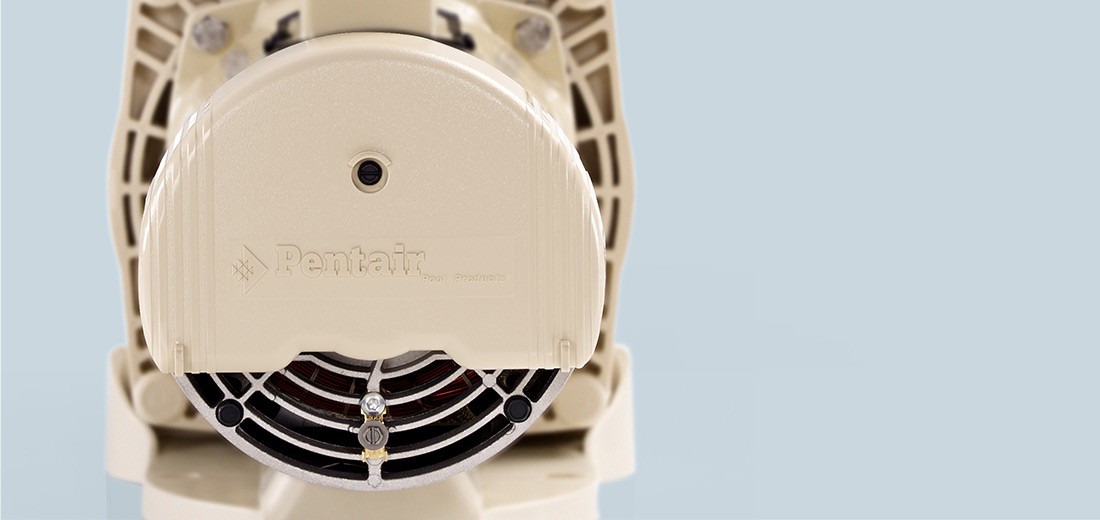

ULTRA-QUIET PERFORMANCE

The ultra-quiet totally enclosed fan-cooled motor barely makes a whisper and virtually eliminates unpleasant, high-pitched noise.

true

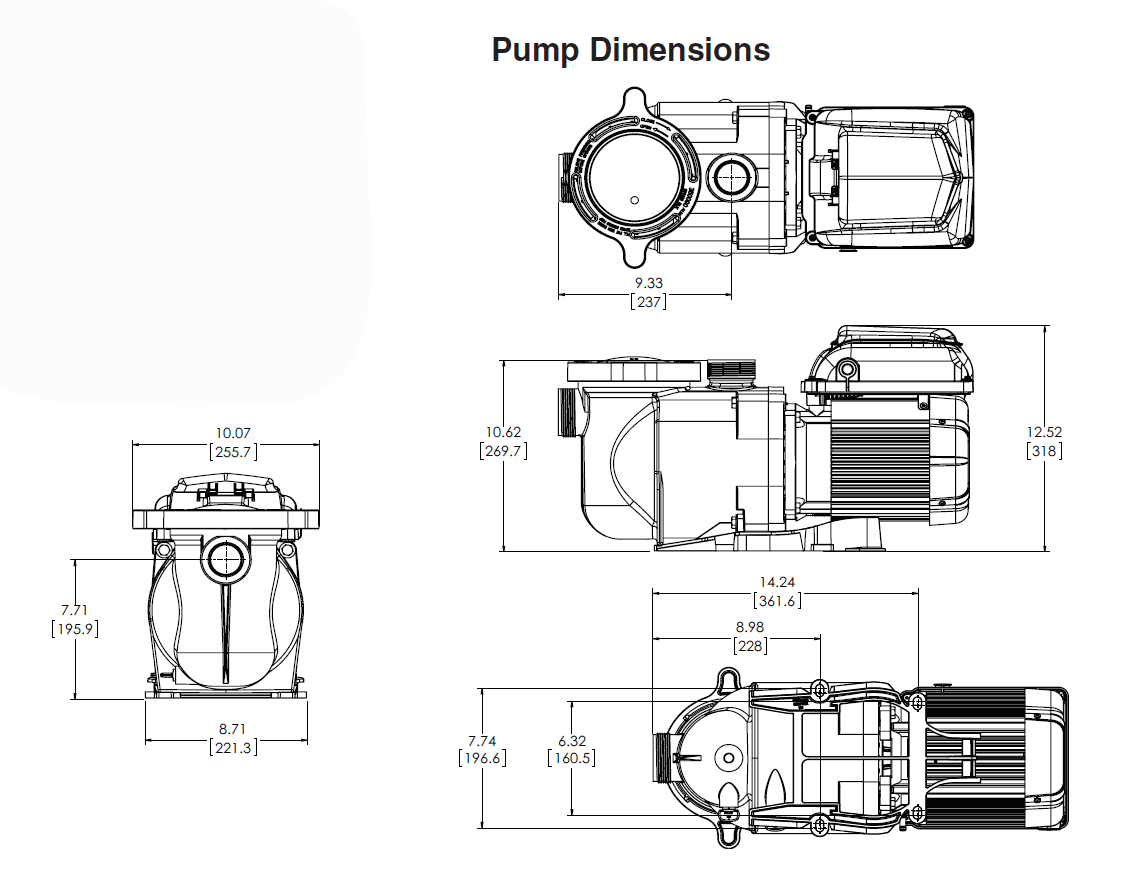

Dimensional Drawings

SuperFlo VS Pump Dimension Drawings

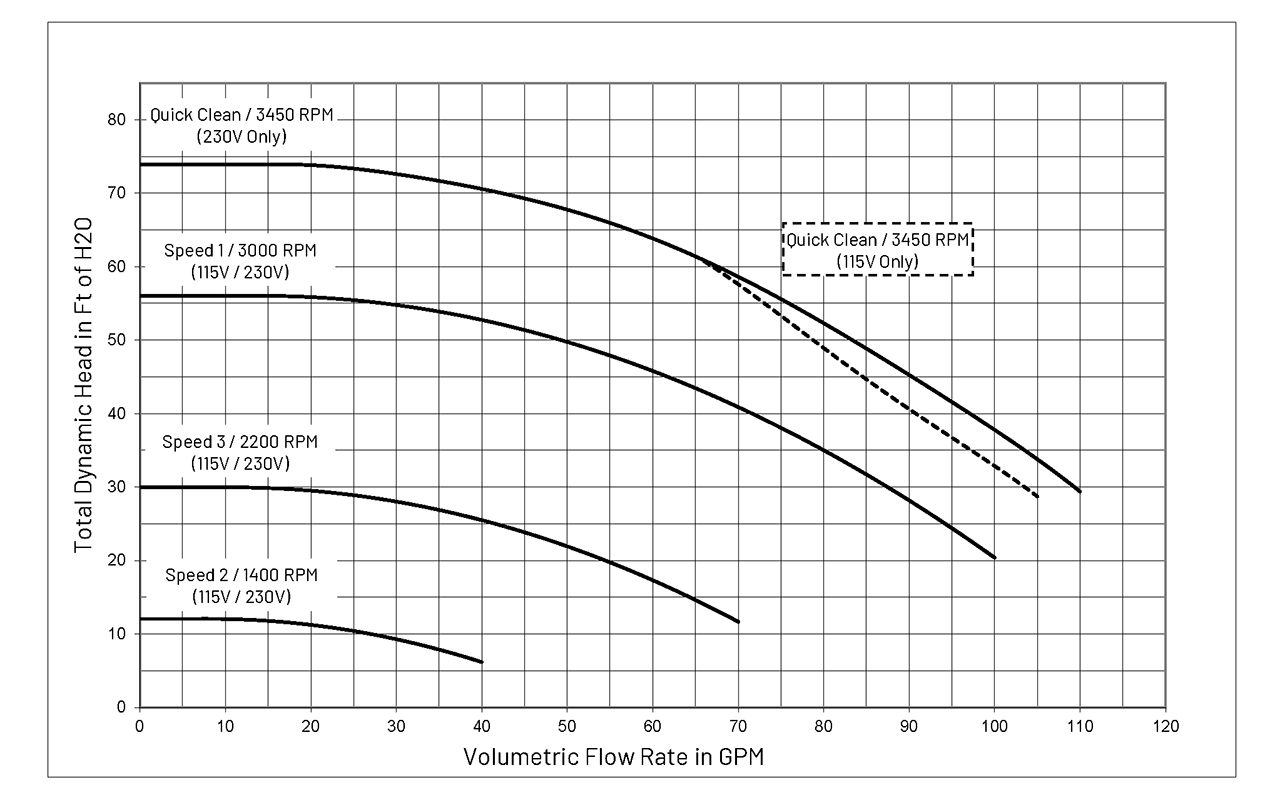

Performance Curves

true
blue-pure-water-wave-splash-white-background-horizontal-7500x5000-image-file-652635500

Energy Star Certified

The SuperFlo VS pump features some of the smartest pump technology available. This results in increased energy savings over conventional single- or two-speed pumps, up to 80%.*

Specifications

Item #modelVoltageFull Load AmpsHPSFSFHPPrimary Listings and Certifications4Port Size (NPT)Carton Wt. (Lbs)
342001SuperFlo VS Variable Speed115/208-23013.2/12.0-11.51.51.462.2UL, NSF, APSP1-1/2 in.53
EC-342001SuperFlo VS Variable Speed, Ecommerce115/208-23013.2/12.0-11.51.51.462.2UL, NSF, APSP1-1/2 in.53
Item #modelVoltageFull Load AmpsHPSFSFHPPrimary Listings and Certifications4Port Size (NPT)Carton Wt. (Lbs)
342001SuperFlo VS Variable Speed115/208-23013.2/12.0-11.51.51.462.2UL, NSF, APSP1-1/2 in.53
EC-342001SuperFlo VS Variable Speed, Ecommerce115/208-23013.2/12.0-11.51.51.462.2UL, NSF, APSP1-1/2 in.53

Products beginning with EC- are exclusive to e-commerce sales. For warranty information please visit www.pentair.com/warranty.

*Hayward® and Super Pump® are registered trademarks of Hayward Industries, Inc.
