WhisperFloXF® High Performance Pump

Previous
Next

The Best Pool Pump in Its Class for High-capacity Applications

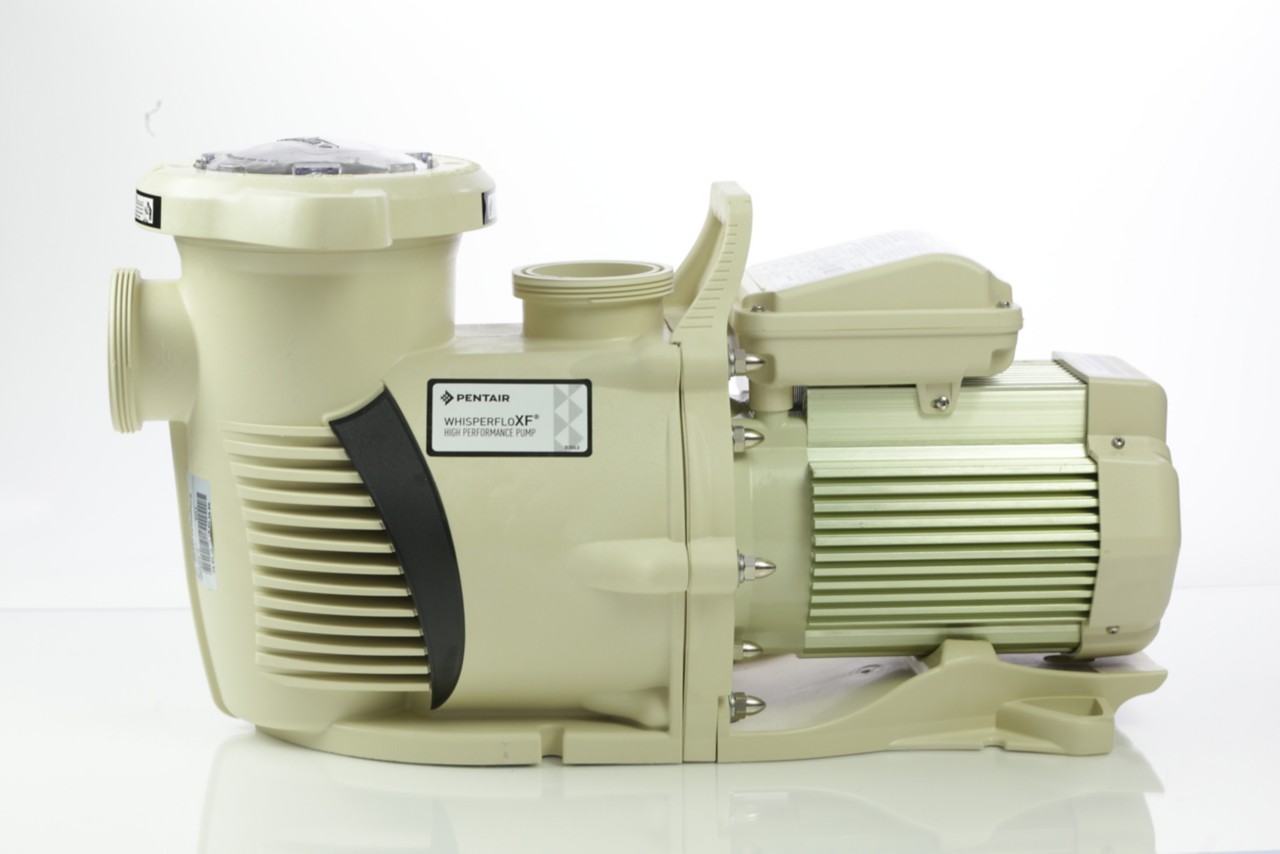

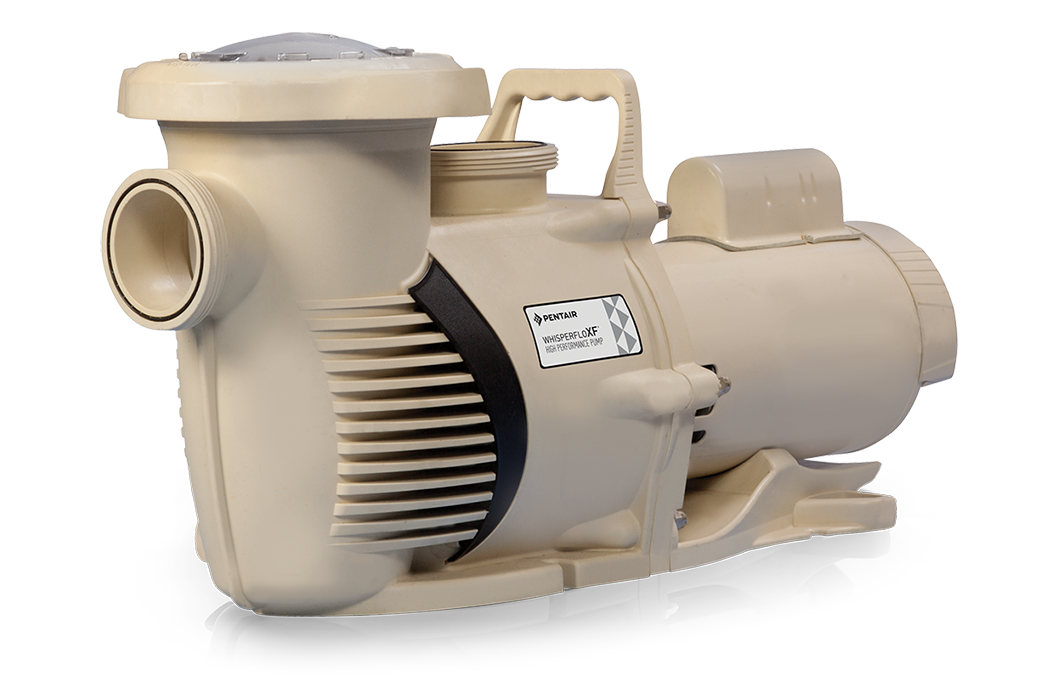

The WhisperFloXF® High Performance Inground Pool Pump is an outstanding choice for demanding applications that call for quiet operation and dependability. Pump hydraulics have been redesigned for smoother flow, improved performance, faster priming and quieter operation. The WhisperFloXF Pool Pump is built with a durable, one-piece composite resin housing and a dual-compartment motor for simplified field wiring.

  • Drop-in replacement for all WhisperFlo® pump models; simple replacement for Challenger® pumps
  • Modular plumbing system means less need to cut and glue pipe
  • External port threading and tool-free union nuts need only hand-tightening
  • Easy-carry handle; easily removable, ergonomic lock ring; and see-through lid for easy basket inspection

Pumps and replacement motors that are single speed and one (1) Total HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.

Find out where to purchase online or in a retail location near you.
VIEW ITEMS
TradeGrade Logo in Blue
closeup of swimming pool ladder

New Product Features

  • New upgraded dual-compartment motor for simplified field wiring
  • New hydraulic isolator separates priming water from pumping water for faster priming, more turbulence-free flow and increased efficiency
  • New union connectors included for connecting directly to 2.5" or 3" plumbing
WhisperFloXF® High Performance Pump

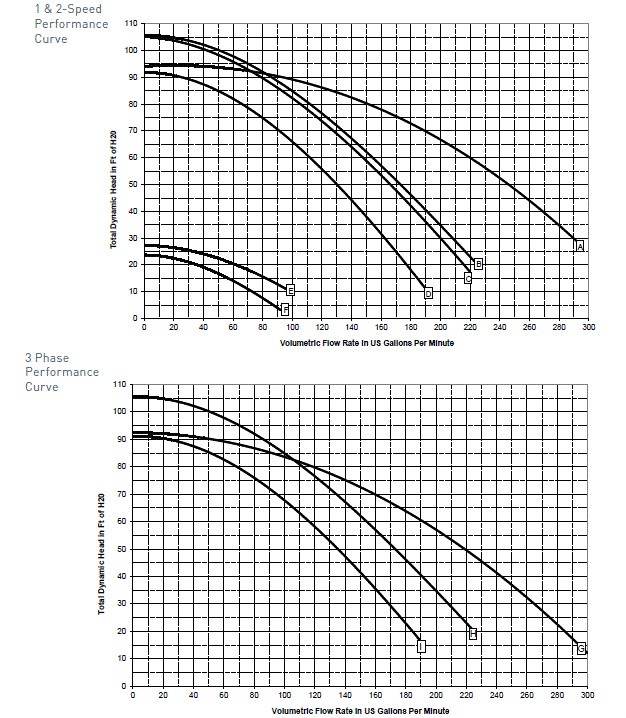

Performance Curves

true

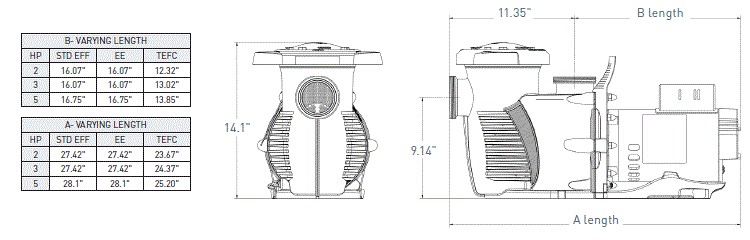

Dimensions

true

TEFC SUPER-DUTY SINGLE SPEED: 022032, 022033, 022034

Standard Efficient Single Speed: 022012, 022013

Single Speed Energy Efficient: 022009, 022010, 022011

Two Speed Energy Efficient: 022007, 022008

EFFICIENT TWO-SPEED UP RATED: 022026

Up-Rated Single Speed Standard Efficiency: 022027

Up-Rated Single Speed Energy Efficient: 022028

Three-Phase Single Speed Premium Efficiency with "Super-Duty" Motor: 022017, 022018, 022019

Specifications

Item #modelVoltageFull Load AmpsHPSFSFHPPrimary Listings and Certifications4Port Size (NPT)Carton Wt. (Lbs.)Curve Key
022032XFET-8208-230V11.1-9.521.32.6UL, NSF2-1/2 x 2-1/2" OR 3 x 3"57D
022033XFET-12208-230V14.6-12.731.153.45UL, NSF2-1/2 x 2-1/2" OR 3 x 3"61B
022034XFET-20208-230V20.0-18.851.05.0UL, NSF2-1/2 x 2-1/2" OR 3 x 3"67A
022009XFE-8208V-230V11.0-10.221.32.6UL, NSF2-1/2 x 2-1/2" OR 3x3"55D
022010XFE-12208V-230V15.0-13.631.153.45UL, NSF2-1/2 x 2-1/2" OR 3x3"60B
022011 XFE-20208V-230V22.0-23.051.05.0UL, NSF2-1/2 x 2-1/2" OR 3x3"72A
022012XF-8208V-230V11.5-11.021.32.6UL, NSF2-1/2 x 2-1/2" OR 3x3"55D
022013XF-1223014.131.153.45UL, NSF2-1/2 x 2-1/2" OR 3x3"60C
022007XFDS-823011.0-1.82.0/2.51.32.6/.33UL, NSF, APSP2-1/2 x 2-1/2" OR 3x3"55D, F
022008XFDS-1223015.0-2.63.0/0.381.153.45/0.44UL, NSF, APSP2-1/2 x 2-1/2" OR 3x3"60C, E
Item #modelVoltageFull Load AmpsHPSFSFHPPrimary Listings and Certifications4Port Size (NPT)Carton Wt. (Lbs.)Curve Key
022032XFET-8208-230V11.1-9.521.32.6UL, NSF2-1/2 x 2-1/2" OR 3 x 3"57D
022033XFET-12208-230V14.6-12.731.153.45UL, NSF2-1/2 x 2-1/2" OR 3 x 3"61B
022034XFET-20208-230V20.0-18.851.05.0UL, NSF2-1/2 x 2-1/2" OR 3 x 3"67A
022009XFE-8208V-230V11.0-10.221.32.6UL, NSF2-1/2 x 2-1/2" OR 3x3"55D
022010XFE-12208V-230V15.0-13.631.153.45UL, NSF2-1/2 x 2-1/2" OR 3x3"60B
022011 XFE-20208V-230V22.0-23.051.05.0UL, NSF2-1/2 x 2-1/2" OR 3x3"72A
022012XF-8208V-230V11.5-11.021.32.6UL, NSF2-1/2 x 2-1/2" OR 3x3"55D
022013XF-1223014.131.153.45UL, NSF2-1/2 x 2-1/2" OR 3x3"60C
022007XFDS-823011.0-1.82.0/2.51.32.6/.33UL, NSF, APSP2-1/2 x 2-1/2" OR 3x3"55D, F
022008XFDS-1223015.0-2.63.0/0.381.153.45/0.44UL, NSF, APSP2-1/2 x 2-1/2" OR 3x3"60C, E
022026XFDS-3023011.0-1.82.5/.311.042.6/.32UL, NSF, APSP2-1/2 x 2-1/2" OR 3x3"60D, F
022027XF-30208V-230V11.5-11.02.51.042.6UL, NSF2-1/2 x 2-1/2" OR 3x3"55D
022028XFE-30208V-230V11.0-10.22.51.042.6UL, NSF2-1/2 x 2-1/2" OR 3x3"55D
022017XFK-8208-230-460V7.5-7.2/3.621.32.6UL, NSF2-1/2 x 2-1/2" OR 3x3"60I
022018XFK-12208-230-460V9.8-9.4/4.731.153.45UL, NSF2-1/2 x 2-1/2" OR 3x3"60H
022019XFK-20208-230-460V13.9-13.1/6.651.05UL, NSF2-1/2 x 2-1/2" OR 3x3"72G
