Clean & Clear® Plus Cartridge Filter

Four Hard-working Cartridges Keep Pool Water Clear

Clean & Clear Plus Cartridge Pool Filters have a corrosion-resistant, injection-molded, fiberglass-reinforced, polypropylene filter tank featuring superior strength and reliability. The cartridge assembly uses four, nonwoven, polyester cartridges. There is no need for backwashing. Simply remove the cartridges and rinse with a garden hose, reducing water consumption.

  • Large filter area for increased dirt capacity
  • 100% drain clean-out port
  • Continuous High Flow™ Internal Air Relief*
  • Durable injection-molded tank
  • Balanced hydraulic flow

Product Components

  1. Clamp ring for easy and quick access to cartridges
  2. Single-piece fiberglass-reinforced polypropylene tank for strength and corrosion resistance
  3. 2" plumbing for maximum flow and faster water cleaning
  4. Easy access 1" drain makes proper winterization fast and simple
Clean n Clear Plus Cartridge Feature 2

Easy To Maintain

The fiberglass-reinforced tank halves are secured with an innovative clamp ring—just loosen the ring and remove the top half for easy cartridge access and rinsing. Filter maintenance doesn’t get any easier.

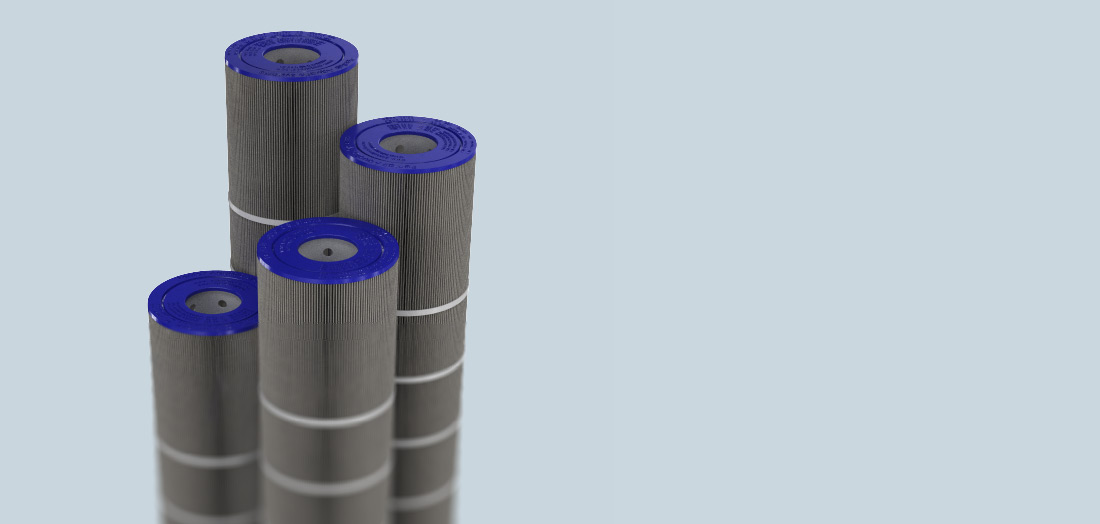

Four-Cartridge Design

The Clean & Clear Plus filter’s design provides maximum filter surface area to capture more dirt and solids and stretch out time between cleanings. Plus, we use the most durable materials to extend cartridge life. The Clean & Clear Plus filter delivers commercial-grade performance that keeps pools clean and sparkling, day in and day out.

Clean n Clear Plus Cartridge Feature 1

Dimensions

Clean n Clear Plus Cartridge Dimensional Drawing

Specifications

Item #ModelEffective Filtration Area (Sq Ft)Flow Rate (GPM Res)8 Hour10 Hour12 HourCarton Qty.Carton Wt. (Lbs.)
160310CCP2402409043,20054,00064,800160
160340CCP32032012057,60072,00086,400170
160301CCP42042015072,00090,000108,000180
160332CCP52052015072,00090,000108,000190
Item #ModelEffective Filtration Area (Sq Ft)Flow Rate (GPM Res)8 Hour10 Hour12 HourCarton Qty.Carton Wt. (Lbs.)
160310CCP2402409043,20054,00064,800160
160340CCP32032012057,60072,00086,400170
160301CCP42042015072,00090,000108,000180
160332CCP52052015072,00090,000108,000190

160340, 160301, 160332: NSF Listed.
Flow Rate: Residential rate one GPM per sq. ft. of filter area.
Flow Rate: Commercial rate is a maximum of .375 GPM sq. ft. of filter area.

Note: Actual system flow will depend on plumbing size and other system components.

Note: Pentair Aquatic Systems does not recommend flow rates above 150 GPM.

*Integrated Continuous High Flow Internal Air Relief is operational only when there is unobstructed flow in the circulating system.

Operating limits—Maximum continual operating pressure of 50 psi. Pool/spa (bather) applications, maximum operating water temperature (internal filter) 104° F (40° C).
