IntelliPro Variable Speed Pump

Main Content Starts Here

IntelliPro® Variable Speed Pool and Spa Pump

The  Variable Speed Pool Pump That Launched an Energy Savings Revolution

IntelliPro VS Variable Speed pump is the next generation of Pentair's variable-speed pump technology. With energy savings up to 90%* versus conventional pumps, near-silent operation and advanced programming capabilities, this pump continues to deliver everything a pool owner wants and reliability no other competitor can match.

  • Intuitive, easy to use menu structure for programming and monitoring
  • Control keypad can be rotated for convenient orientation on the pump or wall mounted with Relocation Kit
  • Includes 2 in. NPT Slip Unions
  • Interfaces perfectly with Pentair automation systems that give you the convenience of mobile device control**
  • Totally enclosed fan cooled design for quiet operation and long life
  • Top-mounted field wiring compartment makes access and installation easier
  • 8-programmable speed settings and built in timer
  • WEF 6.6 THP 3.95
Find out where to purchase online or in a retail location near you.
EcoSelect logo

Quietest Pump on the Planet

With the IntelliPro Variable Speed pump, you’ll experience a quiet, tranquil backyard experience. Its whisper-quiet operation means that it won’t interfere with your pool enjoyment. In fact, when the pump is operating at low speeds, you might not know it’s running.






Energy Star Certified

The IntelliPro Variable Speed Pool pumps feature some of the smartest pump technology available and has received an ENERGY STAR Certification. You can expect increased energy savings over conventional single- or two-speed pumps, up to 90%.*

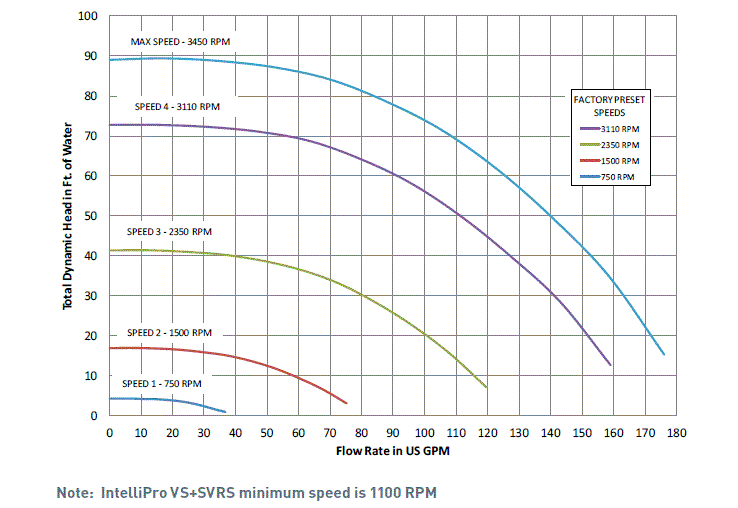

See more of how the IntelliPro Variable Speed High Performance Pool Pump stacks up.


Item #DescriptionVoltageFull Load AmpskWHPSFSFHPFREQ (Hz)Primary Listings and CertificationsPort Size (NPT)Carton Wt. (Lbs.)

IntelliPro VS Pump

230163.231.323.9550HZ/60HZ 2 in x 2 in 57
Item #DescriptionVoltageFull Load AmpskWHPSFSFHPFREQ (Hz)Primary Listings and CertificationsPort Size (NPT)Carton Wt. (Lbs.)

IntelliPro VS Pump

230163.231.323.9550HZ/60HZ 2 in x 2 in 57

*Savings based on variable speed pump compared to a single-speed pump running 12 hours per day at an average of $0.16 per kWh in a 20,000 gallon pool. Actual savings may vary based on local utility rates, pool size, pump run time, pump horsepower, pump rpm, plumbing size and length, pump model, service factor and other hydraulic factors.

**To integrate IntelliPro with other manufacturers’ controllers, an IntelliComm® II control must be purchased separately and installed properly. See owner’s manual for details. IntelliPro® functions can be controlled remotely through your PC, iPad®, iPod touch® or iPhone® with the addition of a Screen Logic ® PC interface kit and free ScreenLogic software.

Note: iPad®, iPhone® and iPod touch® are registered trademarks of Apple Inc.
