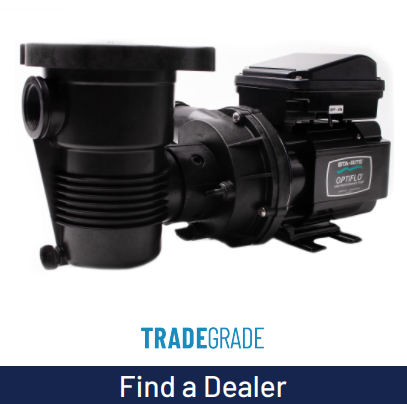

Sta-Rite OptiFlo® Pumps - TradeGrade
Reliable and Versatile Pool Pump for Aboveground Pools
Sta-Rite OptiFlo Pump has exceptionally quiet operation and high-flow performance. Constructed of Sta-Rite’s rugged thermoplastic resin. Large 5-1/2 in. capacity trap and an all-weather, smooth-running motor. The Sta-Rite OptiFlo Pump line also now includes models that comply with updated Department of Energy (DOE) regulations for energy efficiency standards.
- Proprietary Totally Enclosed Fan-Cooled (TEFC) motor available on updated models
- User-friendly removable drain plugs
- Cam and Ramp™ Lid lock
- External Threads – Discharge port features external threads for quick-connect unions
- DOE compliant models available
specifications
Discharge:Vertical
| Item # | Voltage | Full Load Amps | THP | Cord Length | full pipe size | Carton Wt. (Lbs) | Purchase Options |
|---|---|---|---|---|---|---|---|
| 348195SR | 115 | 1 | 3' TWL | 1.5" | 28.5 | Available Through Dealer | |
| 348196SR | 115 | 1 | 3' STD | 1.5" | 28.5 | Available Through Dealer | |
| 348197SR | 115 | 1 | 25' STD | 1.5" | 28.5 | Available Through Dealer | |
| 348198SR | 115 | 1 | None | 1.5" | 28.5 | Available Through Dealer | |
| 340056SR-INT | 230 | 5.0 | 3/4 | None | 1.5" | 23.5 | Available Through Dealer |
| 340057SR-INT | 230 | 6.2 | 1 | None | 1.5" | 23.0 | Available Through Dealer |
| 340058SR-INT | 230 | 7.8 | 1.5 | None | 1.5" | 28.9 | Available Through Dealer |
Discharge:Horizontal
| Item # | Voltage | Full Load Amps | THP | Cord Length | full pipe size | Carton Wt. (Lbs) | Purchase Options |
|---|---|---|---|---|---|---|---|
| 348199SR | 115 | 1 | 3' TWL | 1.5" | 28.5 | Available Through Dealer | |
| 348200SR | 115 | 1 | 3' STD | 1.5" | 28.5 | Available Through Dealer | |
| 348201SR | 115 | 1 | 25' STD | 1.5" | 28.5 | Available Through Dealer |
Discharge:Vertical
| Item # | Voltage | Full Load Amps | THP | Cord Length | full pipe size | Carton Wt. (Lbs) | Purchase Options |
|---|---|---|---|---|---|---|---|
| 348195SR | 115 | 1 | 3' TWL | 1.5" | 28.5 | Available Through Dealer | |
| 348196SR | 115 | 1 | 3' STD | 1.5" | 28.5 | Available Through Dealer | |
| 348197SR | 115 | 1 | 25' STD | 1.5" | 28.5 | Available Through Dealer | |
| 348198SR | 115 | 1 | None | 1.5" | 28.5 | Available Through Dealer | |
| 340056SR-INT | 230 | 5.0 | 3/4 | None | 1.5" | 23.5 | Available Through Dealer |
| 340057SR-INT | 230 | 6.2 | 1 | None | 1.5" | 23.0 | Available Through Dealer |
| 340058SR-INT | 230 | 7.8 | 1.5 | None | 1.5" | 28.9 | Available Through Dealer |
Discharge:Horizontal
| Item # | Voltage | Full Load Amps | THP | Cord Length | full pipe size | Carton Wt. (Lbs) | Purchase Options |
|---|---|---|---|---|---|---|---|
| 348199SR | 115 | 1 | 3' TWL | 1.5" | 28.5 | Available Through Dealer | |
| 348200SR | 115 | 1 | 3' STD | 1.5" | 28.5 | Available Through Dealer | |
| 348201SR | 115 | 1 | 25' STD | 1.5" | 28.5 | Available Through Dealer | |
| 348202SR | 115 | 1 | None | 1.5" | 28.5 | Available Through Dealer |
