IntelliFloXF® Variable Speed Pool and Spa Pump

Variable Speed Pump for Larger, Feature-rich Pools

IntelliFloXF pump combines the superior internal geometry of the Pentair new generation XF pumps with the energy-savings technology of the IntelliFlo Variable Speed Pump to create an energy-efficient, economical, powerful, quiet and dependable pump.

  • Innovative hydraulic isolator creates faster priming and turbulence-free flow for increased efficiency
  • TEFC design keeps motor shielded from elements
  • Union connectors included for 2.5 in. or 3 in. plumbing
  • Drop-in replacement for WhisperFlo® Pump and optional riser base for easy Challenger® Pump replacement
  • Easy carry handle; Cam and Ramp™ Lid that locks easily into place and see-through lid for easy basket inspection
  • External port threading and tool-free union nut need only hand tightening
  • Eight speed settings and on-board scheduling with timers
  • LCD screen with rotatable keypad for easy programming
  • Operates seamlessly on 50 hz or 60 hz input power
  • Compatible with Pentair Automation
  • WEF 5.6 THP 3.95
Find out where to purchase online or in a retail location near you.
VIEW ITEMS
EcoSelect logo
blue-pure-water-wave-splash-white-background-horizontal-7500x5000-image-file-652635500

Energy Star Certified

The IntelliFloXF Variable Speed Pool pumps feature some of the smartest pump technology available and has received an ENERGY STAR Certification. You can expect increased energy savings over conventional single- or two-speed pumps, up to 90%.*

Calculate your savings

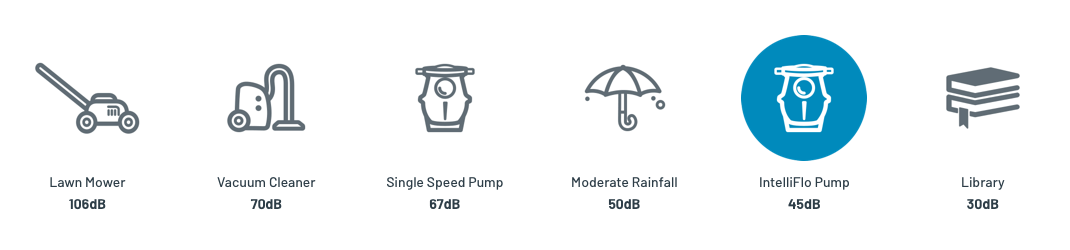

The Ultimate in Quiet

The IntelliFlo pumps are so quiet, you might not even know they are operating.

true
true

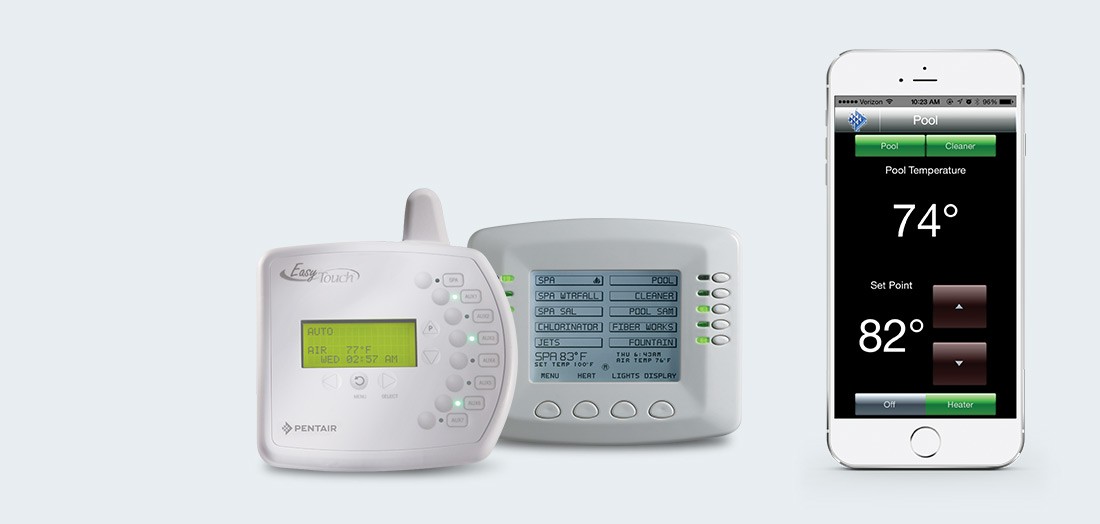

Automation Ready

Combine an IntelliTouch® , EasyTouch® or SunTouch® Control System with your IntelliFlo pump to further enhance pool equipment performance and operating convenience. And now, new ScreenLogic® Interface software is available to allow control access from your iPad® , iPhone® , iPod touch® mobile digital device or Android® device.

true

DIMENSIONS

INTELLIFLO VIDEO

See more of how the IntelliFlo Variable Speed Pool Pump stacks up.

Homeowner and Pro Resources

Brochures
Manuals
REPLACEMENT PARTS
Certifications
c UL US listed certification logo

specifications

Item #VoltageFull Load AmpskWHPSFSFHPFREQUENCY HzPrimary Listings and CertificationsPort Size (NPT)Carton Wt. (Lbs)
022055230163.231.323.9550HZ/60HZUL, NSF, APSP2.5 in. x 2.5 in. OR 3 in. x 3 in.58
EC-022055230163.231.323.9550HZ/60HZUL, NSF, APSP2.5 in. x 2.5 in. OR 3 in. x 3 in.58
Item #VoltageFull Load AmpskWHPSFSFHPFREQUENCY HzPrimary Listings and CertificationsPort Size (NPT)Carton Wt. (Lbs)
022055230163.231.323.9550HZ/60HZUL, NSF, APSP2.5 in. x 2.5 in. OR 3 in. x 3 in.58
EC-022055230163.231.323.9550HZ/60HZUL, NSF, APSP2.5 in. x 2.5 in. OR 3 in. x 3 in.58
Show less

Products beginning with EC- are exclusive to e-commerce sales. For warranty information please visit www.pentair.com/warranty.

RELATED ARTICLES

pool water up close
3 Myths Costing You In Unneccessary Pump Energy Costs

Want to work smarter and not harder? Find out the 3 pool pump myths that are increasing your energy costs.

Read more
Pentair is the world’s leading manufacturer of residential pool and spa equipment.
Upgrade to an ENERGY STAR® Certified Pool Pump

Learn how upgrading your pool pump to variable speed technology can save you money on your monthly utility bills.

Read more

1 ‘UL’ indicates that pump bears a UL mark signifying evaluation to U.S. Standards UL1081 for Permanently Connected Swimming Pool and Spa Pumps and to Canadian Standards CAN/CSA C22.2 No. 108-01 Liquid Pumps For Swimming Pools Only (Enclosure 3).

2 ‘NSF’ indicates that pump bears a mark signifying evaluation to NSF Standard 50 For Self-Priming Centrifugal Pumps For Swimming Pools Only.

3 'APSP' Pump has been evaluated to ANSI/APSP/ICC-15 and California Title 20 and is certified to use on Residential Swimming Pool Filtration Systems.

4 Product may have been evaluated to other state and local regulatory standards. Listing status may change. Always confirm status with appropriate agency if in doubt. Note: Pump must be used with current collectors when installed on spas or hot tubs in Canada.
