Pentair Hypro 2400 Series Plunger Pumps

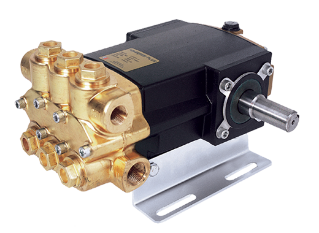

Pentair Hypro 2400 Series Plunger Pumps
These PowerLine Plus, forged brass head, triplex plunger pumps, achieve up to 8.0 gpm (30.3 lpm) and 2500 psi (172 bar). This series includes 2410B-P and 2430B-P models.
- Ball bearings: Longer lasting drive system with heavy duty ball bearings
- Seals: Heavy-duty oil seals
- Bases: Standard - C3 retrofit bases match Cat 310 and 5CP base footprints
Specifications
Product:
Triplex Plunger Pump
| Item # | Max GPM | Max PSI | Max RPM | Inlet Port | Outlet Port |
|---|---|---|---|---|---|
| 2430B-P | 4.3 | 3600 | 1725 | 3/4" | 1/2" |
| 2431B-P | 5.1 | 3600 | 1725 | 3/4" | 1/2" |
| 2432B-P | 5.8 | 3600 | 1725 | 3/4" | 1/2" |
| 2433B-P | 7.1 | 2500 | 1725 | 3/4" | 1/2" |
| 2434B-P | 7.9 | 2500 | 1725 | 3/4" | 1/2" |
| 2410B-P | 4.4 | 2500 | 1725 | 3/4" | 1/2" |
| 2411B-P | 5.3 | 2500 | 1725 | 3/4" | 1/2" |
| 2412B-P | 5.9/4.0 | 2500 | 1725/1100 | 3/4" | 1/2" |
| 2413B-P | 7.2 | 1800 | 1725 | 3/4" | 1/2" |
| 2414B-P | 8.0-4.0 | 1800 | 1725/1100 | 3/4" | 1/2" |
| Item # | Max GPM | Max PSI | Max RPM | Inlet Port | Outlet Port |
|---|---|---|---|---|---|
| 2430B-P | 4.3 | 3600 | 1725 | 3/4" | 1/2" |
| 2431B-P | 5.1 | 3600 | 1725 | 3/4" | 1/2" |
| 2432B-P | 5.8 | 3600 | 1725 | 3/4" | 1/2" |
| 2433B-P | 7.1 | 2500 | 1725 | 3/4" | 1/2" |
| 2434B-P | 7.9 | 2500 | 1725 | 3/4" | 1/2" |
| 2410B-P | 4.4 | 2500 | 1725 | 3/4" | 1/2" |
| 2411B-P | 5.3 | 2500 | 1725 | 3/4" | 1/2" |
| 2412B-P | 5.9/4.0 | 2500 | 1725/1100 | 3/4" | 1/2" |
| 2413B-P | 7.2 | 1800 | 1725 | 3/4" | 1/2" |
| 2414B-P | 8.0-4.0 | 1800 | 1725/1100 | 3/4" | 1/2" |
