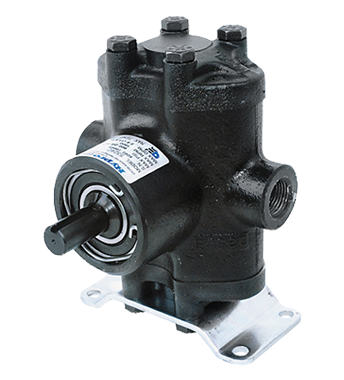

Pentair Hypro 5324C 5324C-H Small Twin Piston Pumps

"Small Twin" piston pumps from Pentair Hypro are used in a variety of spraying, pressure cleaning and hydrostatic testing applications. These heavy-duty pumps are ideal for fluid handling of water and non-abrasive or general use chemicals. All pumps are constructed from cast iron materials.

  • Pump shaft rotation: bi-rotational
  • Cups: Leather (-X) standard for 5300 Series [Buna-N (-RX), Teflon (-CX) available]
  • Models require a pulsation dampener (such as a 3375-0012 pulse hose) on the discharge side
  • Injector head available 3396-0014
Find out where to purchase online or in a retail location near you.
Where to Buy

Specifications

Pump Type: Piston and Plunger
Ports: 1/2" inlet, 1/2" outlet
Max Fluid Temperature: 140°F/60°C
WEIGHT: 11 lbs./5 kg
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output
5324C2.911.080055.218005/8" OD solid shaft
5324C-H2.911.080055.218005/8" ID hollow shaft
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output
5324C2.911.080055.218005/8" OD solid shaft
5324C-H2.911.080055.218005/8" ID hollow shaft
