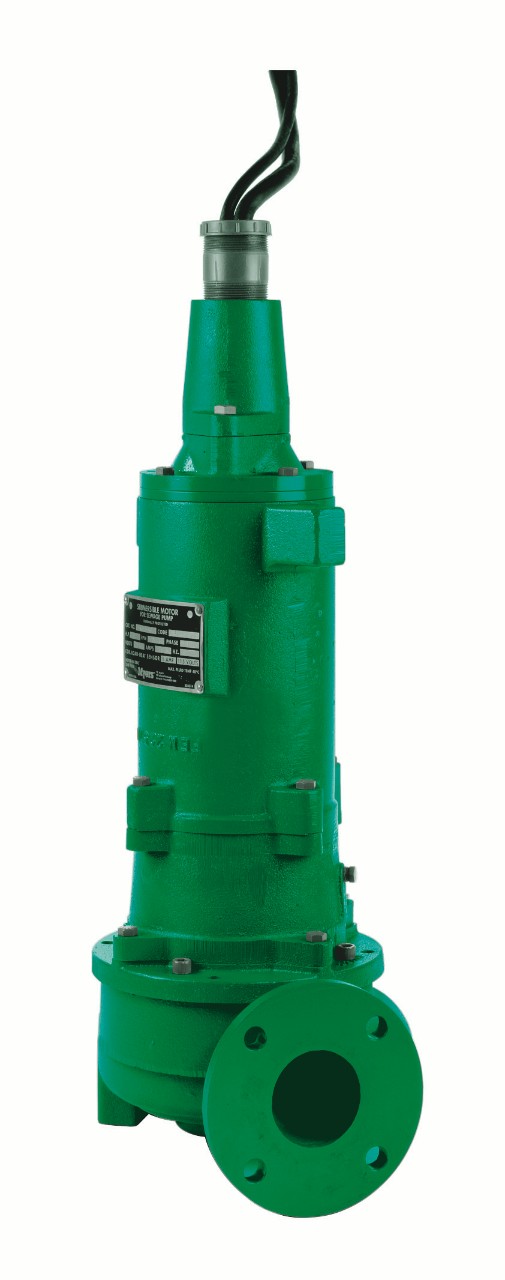

Pentair Myers 3V/3VX 3" Solids Handling Pumps

The Pentair Myers 3V series pump is for use in municipal lift stations, treatment plants and industrial waste applications. Provides smooth operation over an extended portion of the performance curve. Available for ordinary and hazardous locations.

Flows up to 400 gpm
Heads up to 48'
Speed 1750 RPM
3" discharge
2-1/2" solids capacity

Find out where to purchase online or in a retail location near you.

Size and Configure Myers Pumps

Launch Encompass

Locate a distributor near you

View Locations

Resources

Downloads

Specifications

Capacities To:400 GPM (25.24 LPS)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU

Capacities To:400 GPM (25.24 LPS)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Heads To:48' (14.6 m)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Solids Handling:2-1/2" (63.5 mm)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Liquids Handling:Raw unscreened sewage, effluent, storm water

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Intermittent Liquid Temp.:Up To 140°F (60°C)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Winding Insulation Temp Class F:311°F (155°C)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Motor Electrical Data:1750 RPM 1 – 5 HP, 230V, 1Ø, 60 Hz 1 – 5 HP, 200/230/460/575V, 3Ø, 60 Hz

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Std. Third Party Approvals:CSA

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Optional Approvals:FM Class 1, Groups C & D (3VX only)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Acceptable pH Range:6-9

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Specific Gravity:.9 – 1.1

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Discharge Flange Dia.:3" (76 mm)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Motor Housing, Seal Housing, Cord Cap and Volute Case:Cast iron, Class 30, ASTM A48

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Enclosed 2-Vane Impeller:Ductile iron, Class 65, ASTM A536

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Power Cord:SOOW, W

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Control Cord:SOOW

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

MECHANICAL SEAL OPTIONAL:Double tandem, type 21 carbon and ceramic lower tungsten, carbide

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

PUMP MOTOR SHAFT:416 SST

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

FASTENERS:300 series SST

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Volute Wear Ring:Brass

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Show less

Capacities To:400 GPM (25.24 LPS)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Heads To:48' (14.6 m)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Solids Handling:2-1/2" (63.5 mm)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Liquids Handling:Raw unscreened sewage, effluent, storm water

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Intermittent Liquid Temp.:Up To 140°F (60°C)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Winding Insulation Temp Class F:311°F (155°C)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Motor Electrical Data:1750 RPM 1 – 5 HP, 230V, 1Ø, 60 Hz 1 – 5 HP, 200/230/460/575V, 3Ø, 60 Hz

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Std. Third Party Approvals:CSA

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Optional Approvals:FM Class 1, Groups C & D (3VX only)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Acceptable pH Range:6-9

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Specific Gravity:.9 – 1.1

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Discharge Flange Dia.:3" (76 mm)

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Motor Housing, Seal Housing, Cord Cap and Volute Case:Cast iron, Class 30, ASTM A48

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Enclosed 2-Vane Impeller:Ductile iron, Class 65, ASTM A536

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Power Cord:SOOW, W

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Control Cord:SOOW

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

MECHANICAL SEAL OPTIONAL:Double tandem, type 21 carbon and ceramic lower tungsten, carbide

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

PUMP MOTOR SHAFT:416 SST

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

FASTENERS:300 series SST

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Volute Wear Ring:Brass

Item #	Hazardous Location	HP	Voltage	Phase	Hertz	Start Amps	Amps (Max)	Service Factor Amps	Full Load kW	Start KVA	Full Load KVA	NEC Code Letter	Service Factor	Viscosity
3V10M4-21	3VX10M4-21	1	230	1	60	55	8	10	1.4	12.7	1.8	P	1.2	28 – 35 SSU
3V10M4-03	3VX10M4-03	1	208	3	60	47	5.4	6.2	1.5	16.9	1.9	S	1.2	28 – 35 SSU
3V10M4-23	3VX10M4-23	1	230	1	60	43	4.5	5.4	1.5	17.1	1.8	S	1.2	28 – 35 SSU
3V10M4-43	3VX10M4-43	1	460	3	60	21	2.3	2.7	1.5	16.7	1.8	S	1.2	28 – 35 SSU
3V10M4-53	3VX10M4-53	1	575	3	60	14	1.8	2.2	1.5	13.9	1.8	P	1.2	28 – 35 SSU
3V15M4-21	3VX15M4-21	1.5	230	1	60	55	10	12	2	12	2	M	1.2	28 – 35 SSU
3V15M4-03	3VX15M4-03	1.5	208	3	60	47	6.6	8	2	16.9	2.4	N	1.2	28 – 35 SSU
3V15M4-23	3VX15M4-23	1.5	230	3	60	43	5.5	7	1.9	17.1	2.2	R	1.2	28 – 35 SSU
3V15M4-43	3VX15M4-43	1.5	460	3	60	21	2.8	3.5	1.9	16.7	2.2	R	1.2	28 – 35 SSU
3V15M4-53	3VX15M4-53	1.5	575	3	60	14	2.2	2.8	2	13.9	2.2	N	1.2	28 – 35 SSU
3V20M4-21	3VX20M4-21	2	230	1	60	72	12	14.4	2.5	16.6	2.8	K	1.2	28 – 35 SSU
3V20M4-03	3VX20M4-03	2	208	3	60	51	8.4	9.8	2.9	18.4	3	L	1.2	28 – 35 SSU
3V20M4-23	3VX20M4-23	2	230	3	60	54	7	8.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-43	3VX20M4-43	2	460	3	60	27	3.5	4.6	2.5	21.5	2.8	M	1.2	28 – 35 SSU
3V20M4-53	3VX20M4-53	2	575	3	60	18	2.8	3.4	2.6	17.9	2.8	K	1.2	28 – 35 SSU
3V30M4-21	3VX30M4-21	3	230	1	60	106	21	26	4.5	24.4	4.8	K	1.2	28 – 35 SSU
3V30M4-03	3VX30M4-03	3	208	3	60	86	15	18	5	30.9	5.4	M	1.2	28 – 35 SSU
3V30M4-23	3VX30M4-23	3	230	3	60	52	12	15.6	4.6	20.7	4.8	H	1.2	28 – 35 SSU
3V30M4-53	3VX30M4-53	3	575	3	60	25	5	6	4.6	25.1	5	K	1.2	28 – 35 SSU
3V50M4-21	3VX50M4-21	5	230	1	60	153	34	34	6.7	35.2	7.8	H	1	28 – 35 SSU
3V50M4-03	3VX50M4-03	5	208	3	60	140	24	24	8	50.4	8.6	M	1	28 – 35 SSU
3V50M4-23	3VX50M4-23	5	230	3	60	125	21	21	7.6	49.7	8.4	L	1	28 – 35 SSU
3V50M4-43	3VX50M4-43	5	460	3	60	62	10.5	10.5	7.6	49.3	8.4	L	1	28 – 35 SSU
3V50M4-53	3VX50M4-53	5	575	3	60	45	8.4	8.4	7.6	44.8	8.4	K	1	28 – 35 SSU

Show less

Buy Locally

Enter Location:

No dealers found. Please try another location.

Location is disabled by your browser. Please type an address.

Filter By:

- Filter

Pentair Myers 3V/3VX 3" Solids Handling Pumps

Pentair Myers 3V/3VX 3" Solids Handling Pumps

Size and Configure Myers Pumps

Locate a distributor near you

Resources

Specifications

Buy Locally

Enter Location:

Product Quickview
