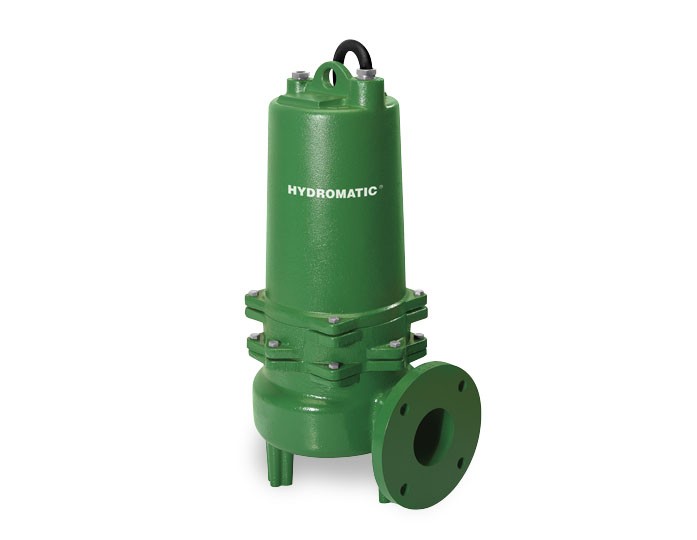

Pentair Hydromatic S3WR Submersible Wastewater Vortex Pump

Main Content Starts Here

Pentair Hydromatic S3WR Submersible Wastewater Vortex Pump

Strong cast iron vortex pumps designed for use with residential raw sewage and light commercial applications

Key Features

  • Recessed impeller design has completely open passage in volute
  • Operates without vibration or cavitation over entire performance curve; operates near shutoff without harming pump.
  • Recessed impeller greatly increases bearing life by reducing radial load
  • Oil-filled motor for maximum heat dissipation and constant bearing lubrication
  • Heat sensor thermostats embedded in windings protect motor from overheat conditions
  • Seal leak probes warn of moisture entry (dual seal only)
Find out where to purchase online or in a retail location near you.
Size and Configure Hydromatic Pumps
Locate a distributor near you

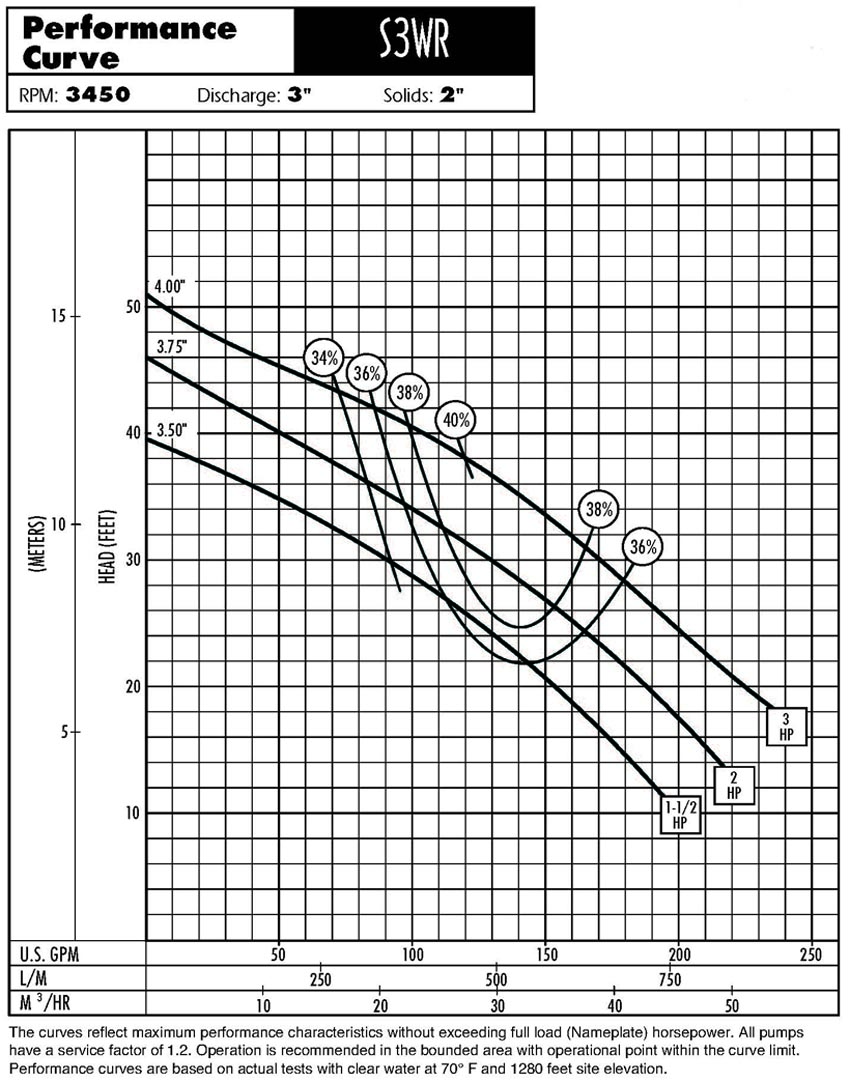

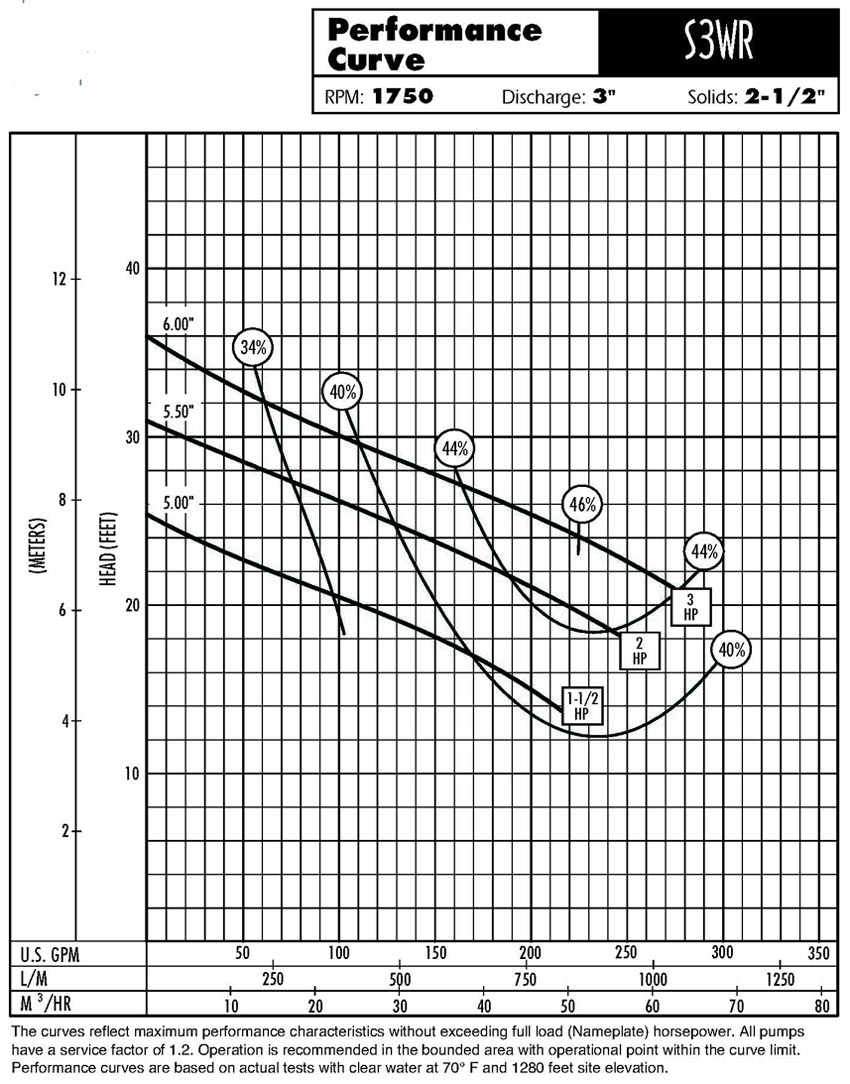

Performance Curves

PerformanceCurves_Submersible Wastewater Vortex Pump
PerformanceCurves_Submersible Wastewater Vortex Pump

Specifications

BODY CONSTRUCTION:  Class 30 cast iron; ASTM A48
HORSEPOWER:  1.5–3 HP
MAXIMUM HEAD:  up to 51 ft. (15.6 m)
MAXIMUM CAPACITY:  up to 280 GPM (17.7 LPS)
SWITCH TYPE:  Control panel required
MINIMUM SUMP DIAMETER:  Duplex = 48" (1219.2 mm)
DISCHARGE PIPE SIZE:  3" (76.2 mm) flanged horizontal
MAXIMUM SOLIDS HANDLING SIZE:  1750 RPM: 2.5" (63.5 mm) / 3450 RPM: 2" (50.6 mm)
AMP DRAW (full load):  Horsepower and voltage dependent
CORD LENGTH:  20'; type SJOW/SJOWA, SOOW
VOLTAGE:  1.5–3 HP, 1ø, 208V/230V, 60Hz / 1.5–3 HP, 3ø, 208V/230V/460V/575V, 60Hz;
MAXIMUM LIQUID TEMPERATURE:  140°F (60°C)
MOTOR:  Enclosed, oil cooled induction
IMPELLER CONSTRUCTION:  Ductile iron; Class 65; ASTM A536
