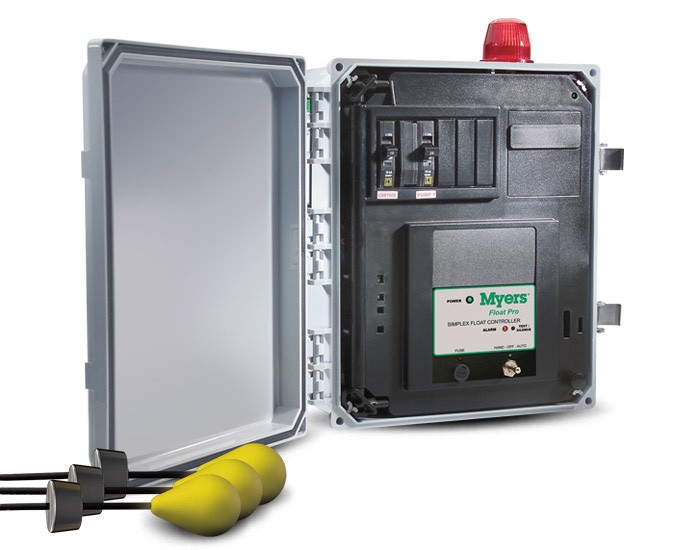

The Float Plus is an innovative approach to today’s pump control system requirements with standard features unmatched by most competitors. Through the use of a standard subdoor and raised back panel, the Float Plus Series offers a revolutionary design for housing common control panel features such as circuit breakers, start components, contactors and a terminal strip. While others ask you for more dollars to cover options, the Float Plus Series provides many of the most requested items as standard equipment. Some of these standard features includes lockable latches, a flashing red alarm light with an electronic horn, the innovative touch to silence pad, and a control circuit board, all in a NEMA 4X enclosure. In addition to unsurpassed standard features, Float Plus offers an exclusive control circuit board. Conveniently located on the subdoor, the float indication lights allow the user to see the status of each float and flashes should a float fail. Available in simplex for single phase and three phase, these innovative controllers are certain to revolutionize the industry.

• Enclosure Dimensions - 12.5"x12"x7.5" (31.8cm x 30.5cm x 19cm)
• Overall Dimensions - 14.5"x12"x7.5" (36.8cm x 30.5cm x 19cm)
• Enclosure - NEMA 4X with Molded Mounting Feet
• Alarm Piezo - 95 with "Touch to Silence" circuitry
• Flashing Red Alarm - Provides 360° Visual Display Beacon
• Weight - 10.8 lbs. (4.9kg)
• Available in Simplex
• 25 amp "DP" Heavy-Duty Definite Purpose Contractors
• Nonconductive Injection Molded Sub-Door
• Blown Fuse Status Lights
• cULus 508 Listed
• Requires three float switched for simplex
