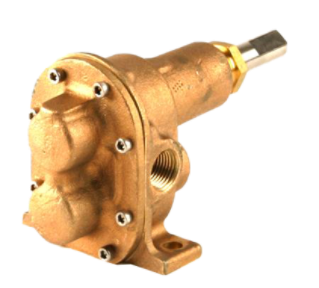

The Shurflo® self-priming, positive displacement, external rotary gear pumps are ideal for a wide range of light-duty industrial, marine, agricultural, and commercial applications, providing a nearly pulseless flow and are designed specifically for reduced speed operations. Some models include an internal pressure relief valve. Limited self-priming capability on packing seal types. Pillow block shaft assembly is required when pulley driven. Motors are not included. Excellent for water-based fluids. Pumps have 303 stainless steel shafts. Models are available without internal pressure relief valves and include carbon graphite drive shaft bushings. Packing Kevlar®/Teflon® seal with temperature range of -20° to 210° F. Wet-end parts: models are constructed from 303 stainless steel, bronze, brass, vellumoid, carbon, graphite, Kevlar®, and Teflon®. Uses: For use with non-particulate and non-abrasive fluids compatible with pump wet-end construction component materials. L-4085 OIPM

• Flows to 24.8 GPM
• Max. RPM: 1725
• Max. PSI: 100
• Suction Lift to 19.5 Ft
• Maximum Viscosity of 100,000 SSU at Reduced Speed (Max. Input Torque of 45 -160 In.-Lbs.)
• Temperature Ranges from -20 to 280° F
• Seals – Kevlar®/Teflon® Packing Type
• Bushings – Carbon/graphite
• Maximum Working Pressure: 130 PSI
• Pumps can Operate Bi-Directionally (Reversible). In the Opposite Rotation, the Pump Pressure Relief Valve, if Equipped, will not Function
