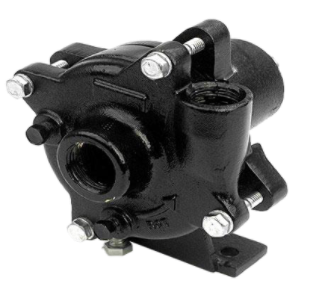

Pentair Shurflo Cast Iron Pedestal Open Impeller
The Shurflo® pedestal cast iron centrifugal units pump continuously producing high flow rates under low head conditions. Designed for continuous low-pressure circulation and transfer of non-flammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications and other general purpose pumping compatible with pump component materials where no suction lift or no self-priming is required. L-4075 OIPM L-4071 Seal Information
- Capacities to 170 GPM, Leads to 74 ft
- Clog-Resistant, Semi-Open Metallic Impellers
- Clog-Resistant, Semi-Open Metallic Impellers
- Maximum Casing Working Pressure is 200 PSI
- 3/4" to 2" Female NPT Inlet and Outlet Ports
- Discharge Port can be Rotated at 90-Degree Intervals
- Standard Pump Models (at 3450 RPM) will Handle Specific Gravities to 1.1 (at 100 SSU or less)
- Standard Pump Models (at 3450 RPM) will Handle Viscosity to 100 SSU (at 1.1 Specific Gravity or less) and up to 200 SSU (Specific Gravity of 1.0 or less)
- Handles Temperatures to 200° F
- Pumps are Equipped with a Carbon Ceramic Buna-N Mechanical Seal having 316 Stainless Steel Components
