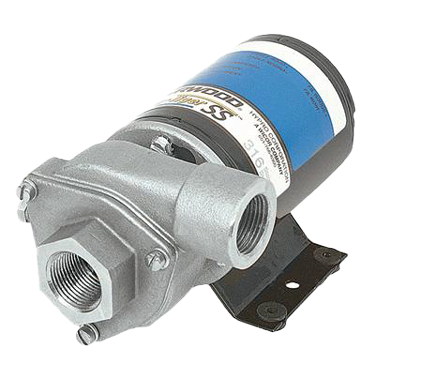

Pentair Shurflo Stainless Steel DC Close Coupled Centrifugal Pump

The Shurflo® close-coupled 316 stainless steel semi-open impeller centrifugal models pump continuously, producing high flow rates under low-head conditions. Designed for continuous low pressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications and other general-purpose pumping compatible with pump component materials where no suction lift or no self-priming is required. L-4096 OIPM L-4077 Motor Manual



  • Capacities to 24 GPM, Heads to 25 ft
  • DC Motor Voltages are available in 12, 24 and 36 Volts
  • Clog-Resistant, Semi-Open 316 Stainless Impellers
  • Pumps feature Maintenance-Free Ball Bearings and an Easily Accessible Front Drain Plug for Draining Liquid
  • Maximum Casing Working Pressure is 100 PSI
  • Standard Pump Models will Handle Specific Gravities to 1.1
  • Pumps are Capable of Fluid Viscosities to 50 SSU at Standard Motor Speeds
  • 3/4" female NPT inlet and outlet ports
  • Discharge Port can be Rotated at 90-Degree Intervals
  • Handles Temperatures from 40° to 180° F
  • Seals: Models are Equipped with a Carbon Ceramic Viton® Mechanical Seal having 316 Stainless Steel Components and Viton® O-Rings
