Pentair Shurflo Stainless Steel High Head Centrifugal Pumps

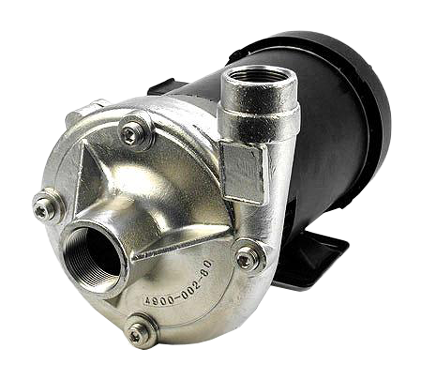

The Shurflo® close-coupled 316 stainless steel centrifugal units pump continuously producing high-head conditions. Designed for continuous high-pressure circulation and transfer of non-flammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications and other general-purpose pumping compatible with pump component materials where no suction lift or no self-priming is required. L-4067 OIPM (High Head Close Coupled) L-4076 OIPM (High Head Pedestal) L-4077 Motor Manual L-4071 Seal Information



  • Capacities to 118 GPM, Heads to 148 ft
  • 1/2 to 3 HP AC, NEMA 56J Frame and Base, ODP and TEFC, Single and Three-Phase Motors
  • Maximum Casing Working Pressure is 200 PSI
  • 1" to 1 1⁄2" Female NPT Inlet and Outlet Ports
  • Discharge Port can be Rotated at 90-Degree Intervals
  • Maximum Temperatures to 200° F
  • Standard Pump Models (at 3450 RPM) will Handle Specific Gravities to 1.1 (at 100 SSU or less)
  • Standard Pump Models (at 3450 RPM) will Handle Viscosity to 100 SSU (at 1.1 Specific Gravity or less) and up to 200 SSU (Specific Gravity of 1.0 or less)
  • Pumps are Equipped with a Carbon Ceramic Viton® Mechanical Seal having 316 Stainless Steel Components
